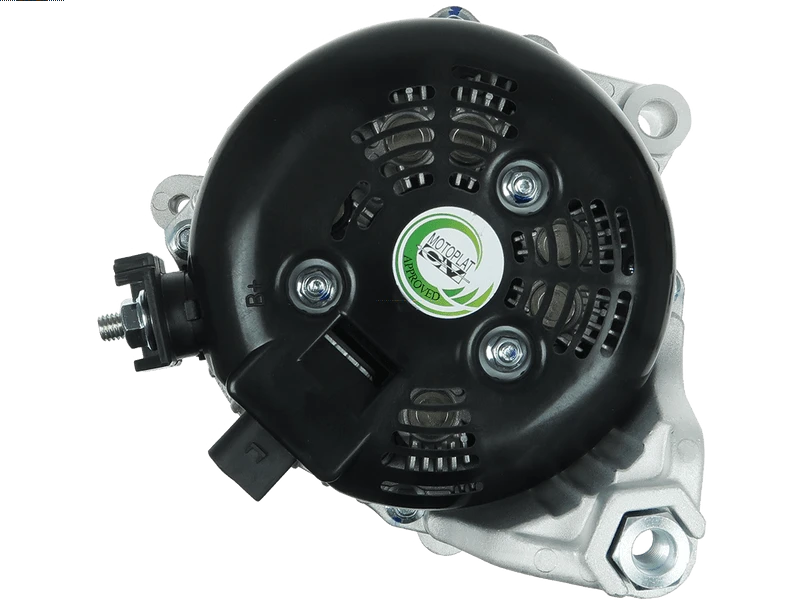

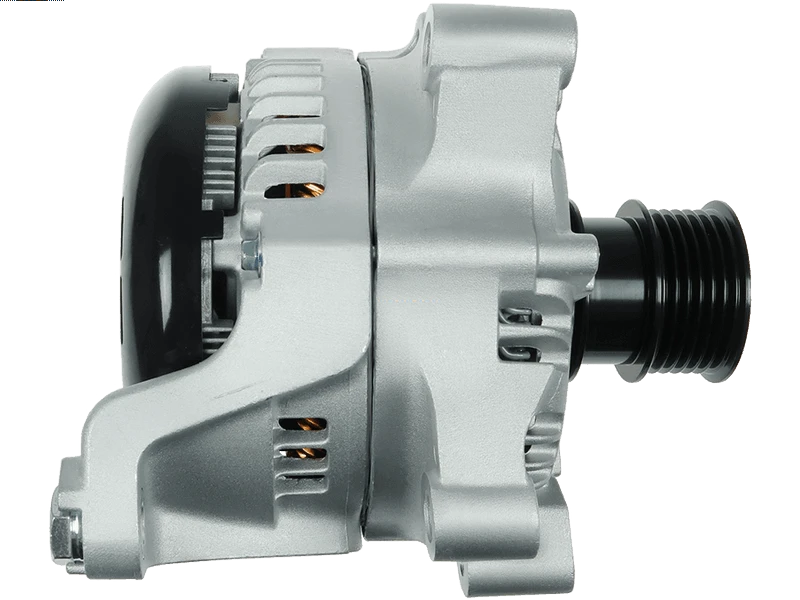

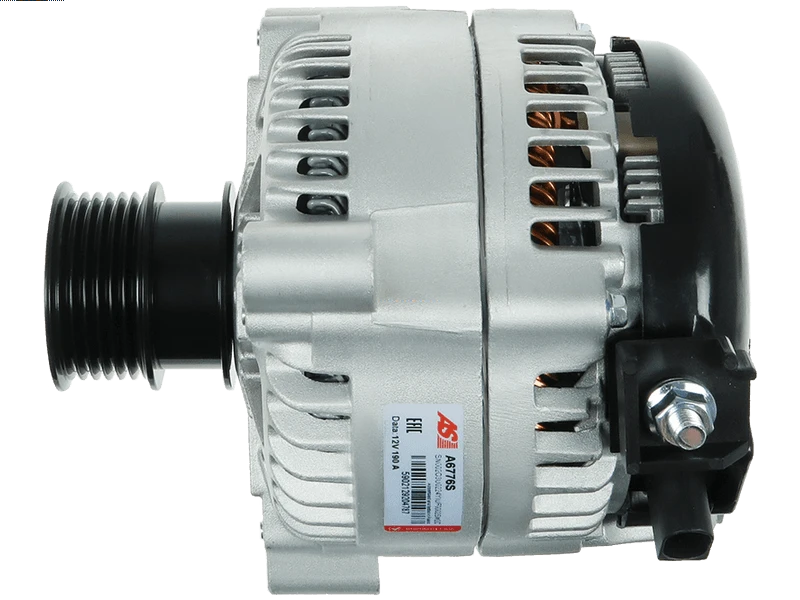

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 682.59 including GST
NZ$ 593.56 excluding GST
or four payments of $170.65
with
Learn More
each
A6776S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
1042110600Specifications
| Amp | 190 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 202 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53 mm |
| Pulley to Mount Distance (A) | 80 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 116 1.5 i | (F20)[B38B15A] | 03.2015-06.2019 |
| BMW | 116 1.5 i | (F21)[B38B15A] | 03.2015-06.2019 |
| BMW | 118 1.5 i | (F20)[B38B15A] | 07.2015-06.2019 |
| BMW | 118 1.5 i | (F21)[B38B15A] | 03.2015- |
| BMW | 120 2.0 i | (F20)[B48B20A] | 07.2016-06.2019 |
| BMW | 120 2.0 i | (F21)[B48B20A] | 07.2016- |
| BMW | 125 2.0 i | (F20)[B48B20B] | 07.2016-06.2019 |
| BMW | 125 2.0 i | (F21)[B48B20B] | 10.2015- |
| BMW | 218 1.5 i | (F22)[B38B15A] | 03.2015-06.2021 |
| BMW | 218 1.5 i | (F23)[B38B15A] | 03.2015-06.2021 |
| BMW | 218 1.5 i | (F87)[B38B15A] | 03.2015-06.2021 |
| BMW | 220 2.0 i | (F22)[B48B20A] | 09.2015-06.2021 |
| BMW | 220 2.0 i | (F23)[B48B20A] | 09.2015-06.2021 |
| BMW | 220 2.0 i | (F87)[B48B20A] | 09.2015-06.2021 |
| BMW | 230 2.0 i | (F22)[B46B20B] | 07.2016-06.2021 |
| BMW | 230 2.0 i | (F22)[B48B20B] | 07.2016-06.2021 |
| BMW | 230 2.0 i | (F23)[B46B20B] | 07.2016-06.2021 |
| BMW | 230 2.0 i | (F23)[B48B20B] | 07.2016-06.2021 |
| BMW | 230 2.0 i | (F87)[B46B20B] | 07.2016-06.2021 |
| BMW | 230 2.0 i | (F87)[B48B20B] | 07.2016-06.2021 |
| BMW | 318 1.5 i | (F30)[B38B15A] | 07.2015-10.2018 |
| BMW | 318 1.5 i | (F31)[B38B15A] | 07.2015-06.2019 |
| BMW | 318 1.5 i | (F80)[B38B15A] | 07.2015-10.2018 |
| BMW | 320 2.0 i | (F30)[B48B20A] | 07.2015-10.2018 |
| BMW | 320 2.0 i | (F31)[B48B20A] | 07.2015-06.2019 |
| BMW | 320 2.0 i | (F80)[B48B20A] | 07.2015-10.2018 |
| BMW | 320 2.0 i Gran Turismo | (F34)[B48B20A] | 07.2016- |
| BMW | 320 2.0 i xDrive | (F30)[B48B20A] | 07.2015-10.2018 |
| BMW | 320 2.0 i xDrive | (F31)[B48B20A] | 07.2015-06.2019 |
| BMW | 320 2.0 i xDrive | (F80)[B48B20A] | 07.2015-10.2018 |
| BMW | 320 2.0 i xDrive Gran Turismo | (F34)[B48B20A] | 07.2016- |
| BMW | 330 2.0 i | (F30)[B46B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i | (F30)[B48B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i | (F31)[B48B20A] | 07.2015-06.2019 |
| BMW | 330 2.0 i | (F80)[B46B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i | (F80)[B48B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i Gran Turismo | (F34)[B48B20B] | 07.2016- |
| BMW | 330 2.0 i xDrive | (F30)[B46B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive | (F30)[B48B20A] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive | (F30)[B48B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive | (F31)[B46B20B] | 07.2015-06.2019 |
| BMW | 330 2.0 i xDrive | (F31)[B48B20B] | 07.2015-06.2019 |
| BMW | 330 2.0 i xDrive | (F80)[B46B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive | (F80)[B48B20A] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive | (F80)[B48B20B] | 07.2015-10.2018 |
| BMW | 330 2.0 i xDrive Gran Turismo | (F34)[B46B20B] | 07.2016- |
| BMW | 330 2.0 i xDrive Gran Turismo | (F34)[B48B20B] | 07.2016- |
| BMW | 418 1.5 i | (F32)[B38B15A] | 03.2016-06.2020 |
| BMW | 418 1.5 i | (F82)[B38B15A] | 03.2016-06.2020 |
| BMW | 418 1.5 i Gran Coupe | (F36)[B38B15A] | 07.2015-12.2020 |
| BMW | 420 2.0 i | (F32)[B48B20A] | 03.2016-06.2020 |
| BMW | 420 2.0 i | (F33)[B48B20A] | 03.2016-07.2020 |
| BMW | 420 2.0 i | (F82)[B48B20A] | 03.2016-06.2020 |
| BMW | 420 2.0 i | (F83)[B48B20A] | 03.2016-07.2020 |
| BMW | 420 2.0 i Gran Coupe | (F36)[B48B20A] | 03.2016-05.2021 |
| BMW | 420 2.0 i xDrive | (F32)[B48B20A] | 03.2016-06.2020 |
| BMW | 420 2.0 i xDrive | (F82)[B48B20A] | 03.2016-06.2020 |
| BMW | 420 2.0 i xDrive Gran Coupe | (F36)[B48B20A] | 03.2016-05.2021 |
| BMW | 430 2.0 i | (F32)[B46B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i | (F32)[B48B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i | (F33)[B48B20B] | 03.2016-07.2020 |
| BMW | 430 2.0 i | (F82)[B46B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i | (F82)[B48B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i | (F83)[B48B20B] | 03.2016-07.2020 |
| BMW | 430 2.0 i Gran Coupe | (F36)[B48B20B] | 03.2016-05.2021 |
| BMW | 430 2.0 i xDrive | (F32)[B46B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i xDrive | (F32)[B48B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i xDrive | (F33)[B48B20B] | 03.2016-07.2020 |
| BMW | 430 2.0 i xDrive | (F82)[B46B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i xDrive | (F82)[B48B20B] | 03.2016-06.2020 |
| BMW | 430 2.0 i xDrive | (F83)[B48B20B] | 03.2016-07.2020 |
| BMW | 430 2.0 i xDrive Gran Coupe | (F36)[B48B20B] | 03.2016-05.2021 |
Reference Information
| 021080-2260 | DENSO |
| 104211-0600 | DENSO |
| 104211-0601 | DENSO |
| 12318645326 | BMW |
| 12318648046 | BMW |
| 20132525OE | REAL |
| 2040525.1 | SANDO |
| 21079N | WAI / TRANSPO |
| 215.917.190.050 | PSH |
| 215.917.190.260 | PSH |
| 215.917.190.608 | PSH |
| 28-7799 | ELSTOCK |
| 40163 | CEVAM |
| 440971 | VALEO |
| 554986RID | KUHNER |
| 8645326 | BMW |
| 8648046 | BMW |
| 89216446 | POWERMAX |
| 90-29-6010 | WILSON |
| A12DE1239 | SIDAT |
| AEG1390 | AUTOELECTRO |
| ALN3694 | KRAUF |
| ALTJ387 | 3EFFE |
| CAL40525GS | CASCO |
| DAN1466 | DENSO |
| DENDAN1466 | WOODAUTO |
| DRA1897 | DELCO |
| LRA04190 | LUCAS |
| LRA4190 | LUCAS |
| UD101771A | AS-PL |
