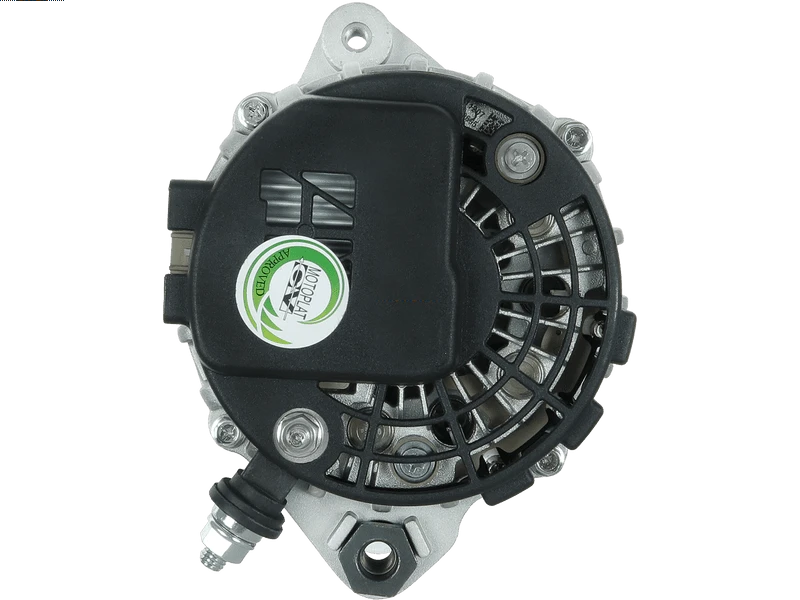

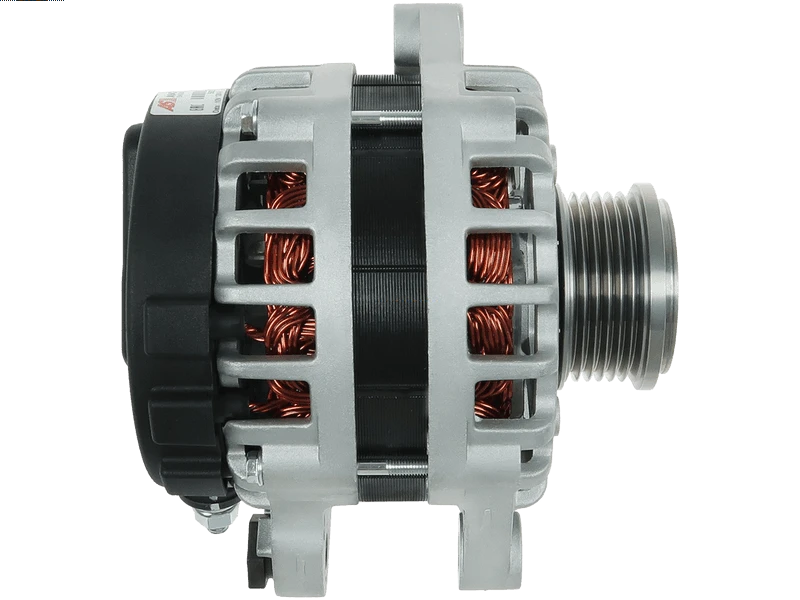

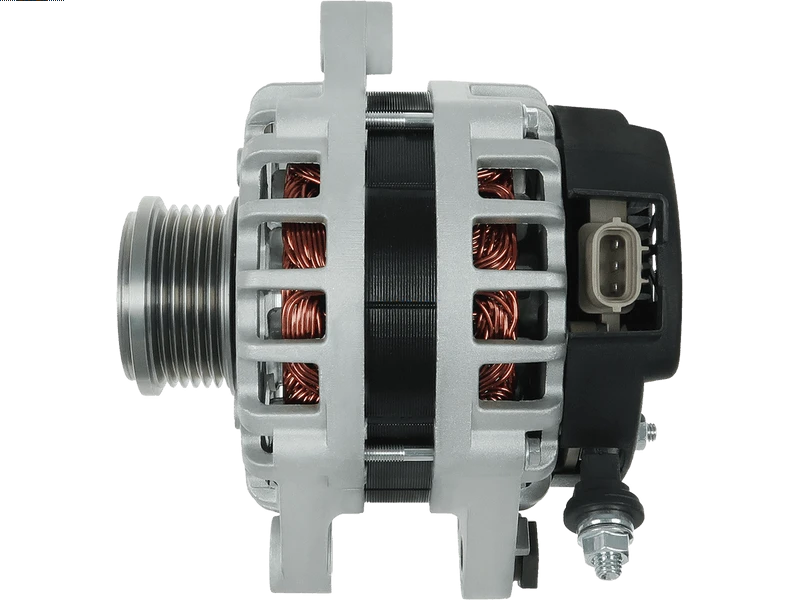

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
GREAT WALL
Price:
NZ$ 530.40 including GST
NZ$ 461.22 excluding GST
or four payments of $132.60
with
Learn More
each
A9423S
1

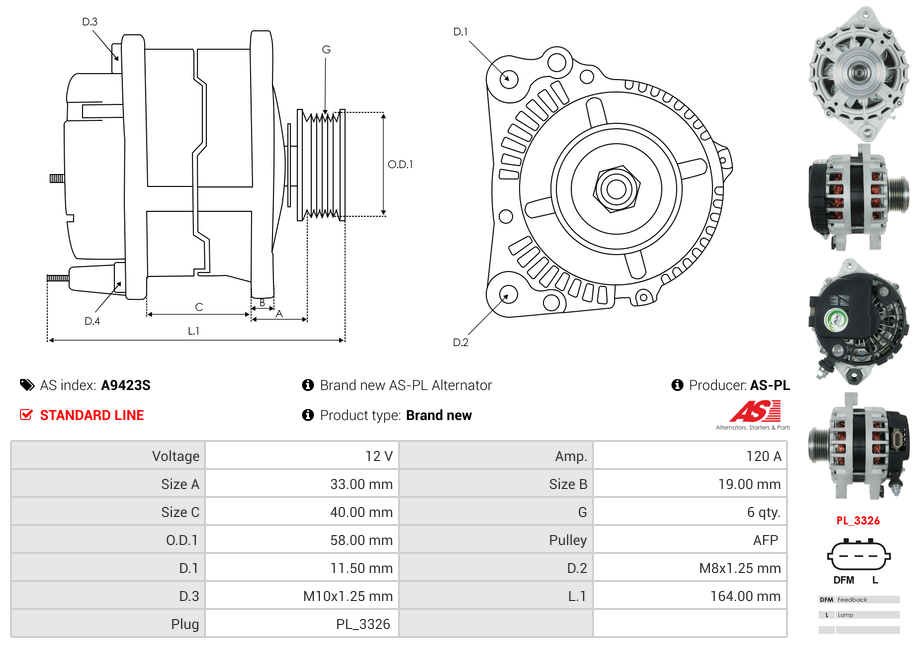

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 164 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40 mm |
| OEM Product | No |
| Plug Code | PL_3326 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Clutch |
| Unit Type | GREAT WALL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HAVAL | H2 1.5T |
Reference Information
| 3701100XEG71 | GREAT WALL |
| 556621RIM | KUHNER |
| AHC128003 | GREAT WALL |
| ALQ2736 | KRAUF |
| UD30053A | AS-PL |
Video/Publications
