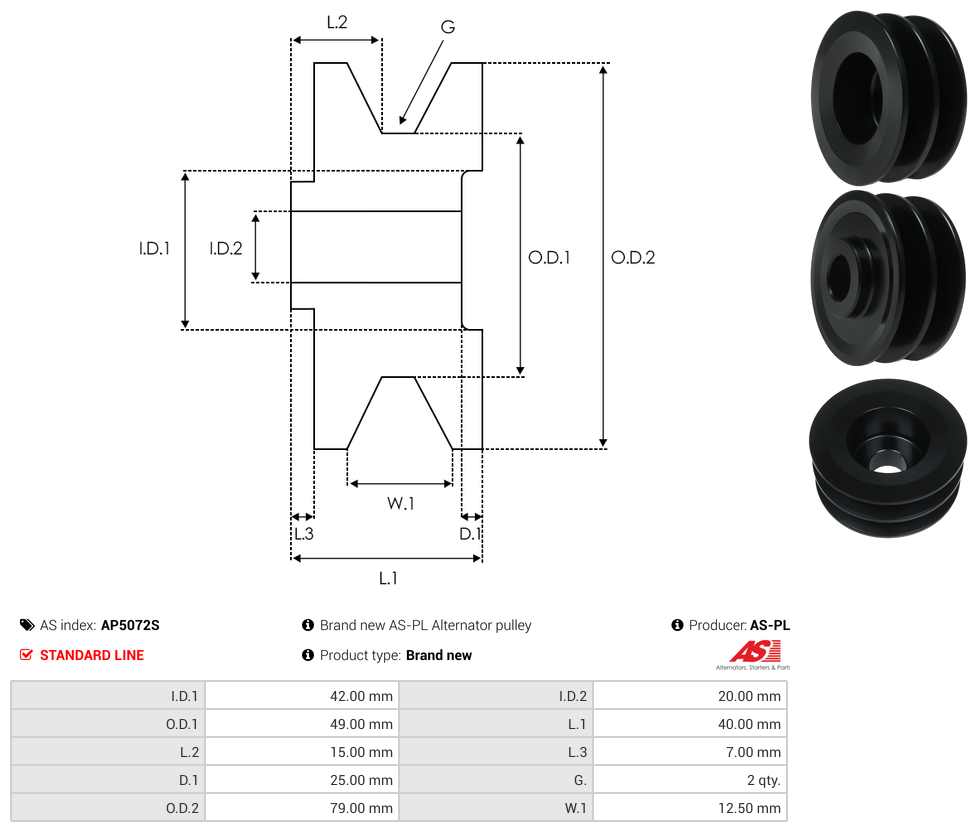

Specifications
| Depth (D.1) | 25 mm |
| Grooves | 2 qty |
| Inside Diameter (I.D.1) | 42 mm |
| Inside Diameter (I.D.2) | 20 mm |
| Length 3 (L.3) | 7 mm |
| Length (L.1) | 40 mm |
| Length (L.2) | 15 mm |
| Outside Diameter (O.D.1) | 49 mm |
| Outside Diameter (O.D.2) | 79 mm |
| Unit Type | MITSUBISHI |
| Width (W.1) | 12.5 |
Reference Information
UD49169AP A629X50670Video/Publications
A003TN5188 A5063 A3TN5188Add Your Number
