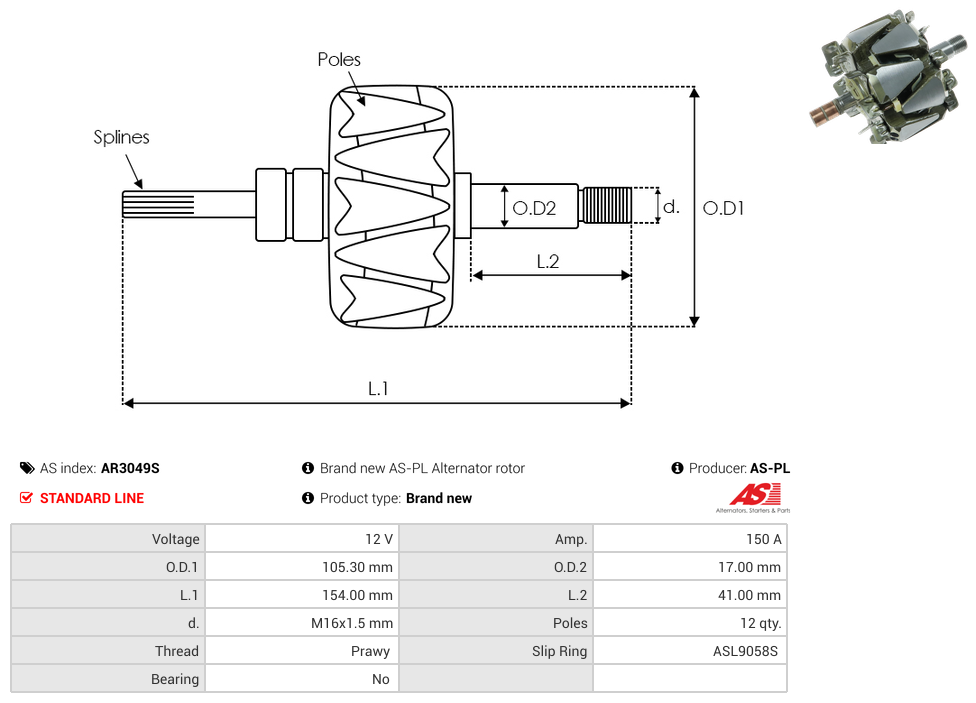

Specifications
Amp | 150 A |
Fitted with Bearing | No |
Length (L.1) | 154 mm |
Length (L.2) | 41 mm |
Outside Diameter (O.D.1) | 105.3 mm |
Outside Diameter (O.D.2) | 17 mm |
Poles | 12 qty |
Slip Ring to Suit | ASL9058S |
Thread Direction | Right |
Thread size & pitch (d.) | M16x1.5 mm |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
UD48996ARVideo/Publications
TG14C047 A3344S A3481S TG15C103Add Your Number
