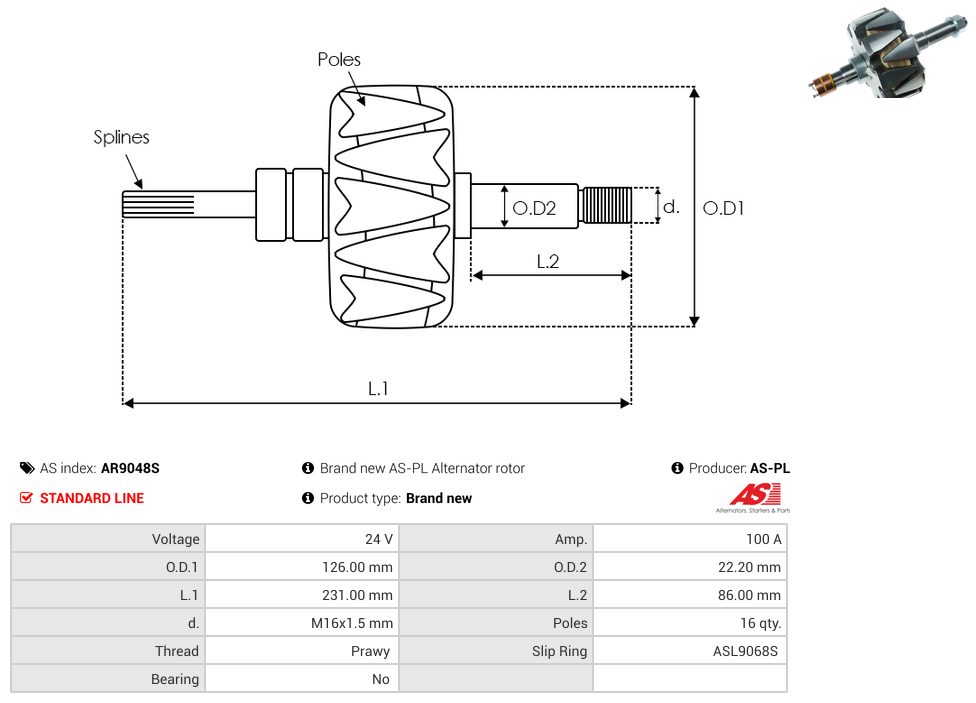

Specifications
| Amp | 100 A |
| Fitted with Bearing | No |
| Length (L.1) | 231 mm |
| Length (L.2) | 86 mm |
| Outside Diameter (O.D.1) | 126 mm |
| Outside Diameter (O.D.2) | 22.2 mm |
| Poles | 16 qty |
| Slip Ring to Suit | ASL9068S |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
