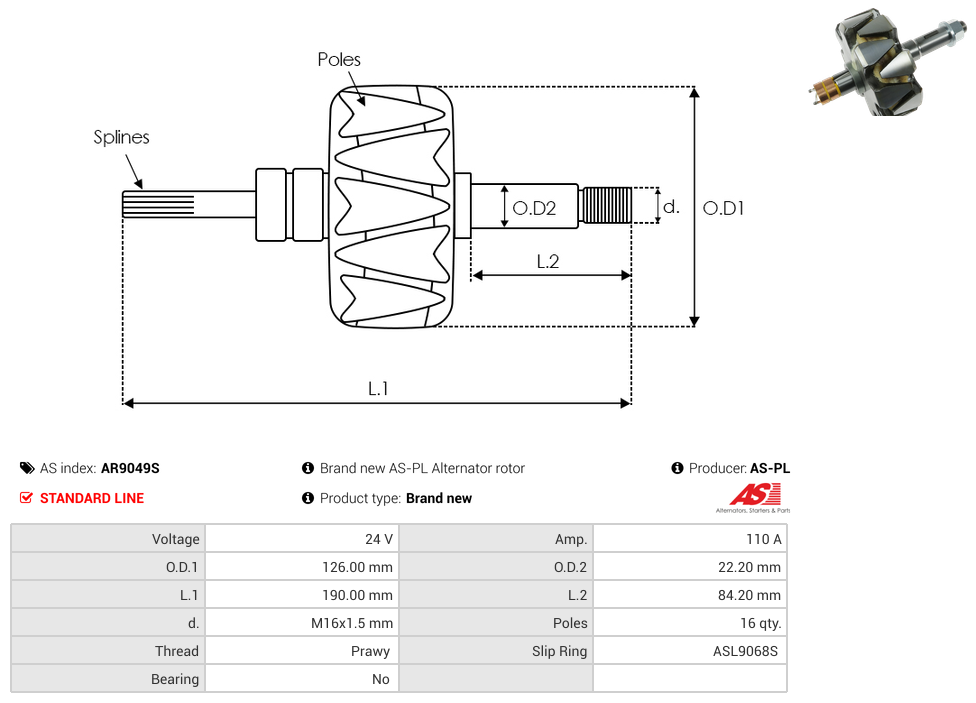

Specifications
| Amp | 110 A |
| Fitted with Bearing | No |
| Length (L.1) | 190 mm |
| Length (L.2) | 84.2 mm |
| Outside Diameter (O.D.1) | 126 mm |
| Outside Diameter (O.D.2) | 22.2 mm |
| Poles | 16 qty |
| Slip Ring to Suit | ASL9068S |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Reference Information
AVP2294 UD48615AR A020103765SVideo/Publications
8LHA3096 8LHA3096UC 8LHA3099UC13 A9044 8LHA3096UAdd Your Number
