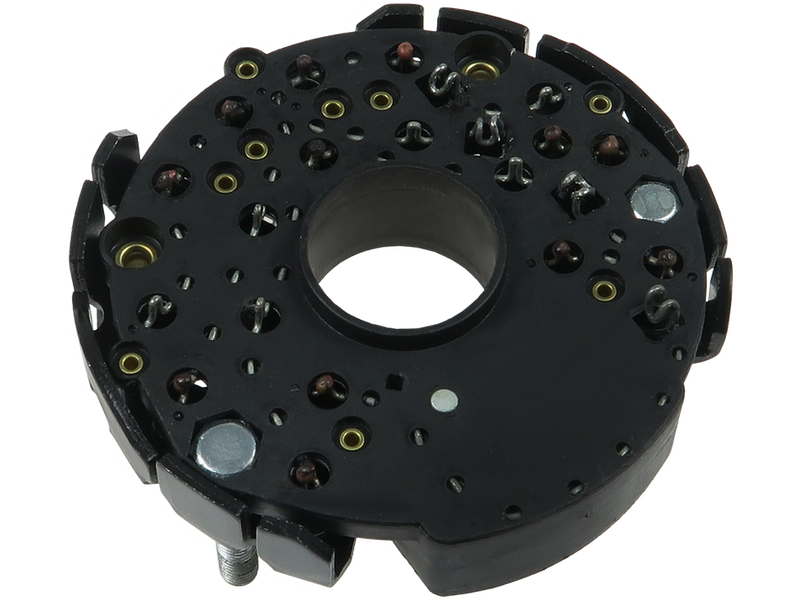

Remanufactured AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 65.77 including GST
NZ$ 57.19 excluding GST
or four payments of $16.44
with
Learn More
each
ARC0032SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information
WHILE STOCKS LASTSpecifications

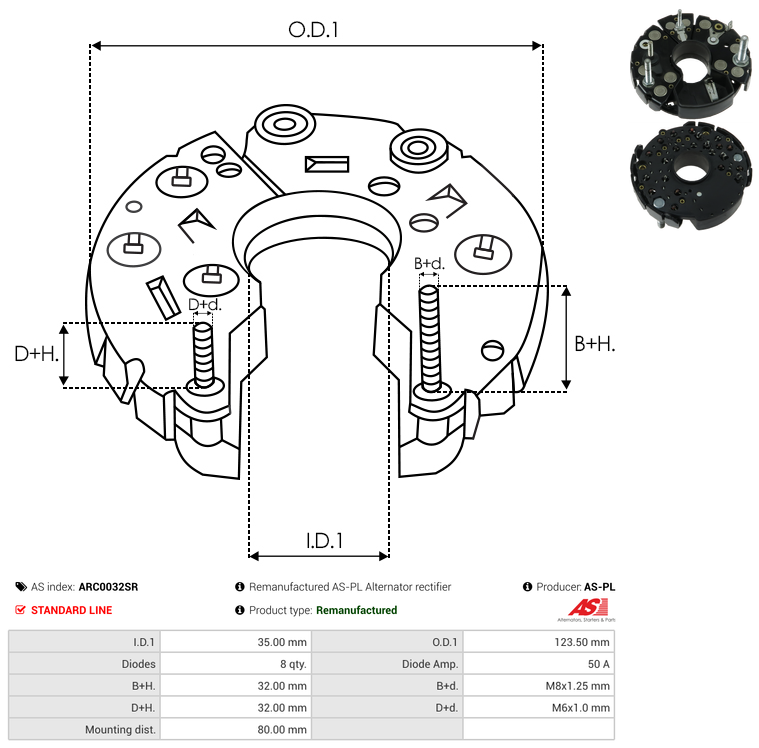

| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 32 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 8 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M6x1.0 mm |
| D+ Thread Height (D+H) | 32 mm |
| Inside Diameter (I.D.1) | 35 mm |
| Mount Distance (C-C) | 80 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 123.50 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 021018114 | LOGISTIK |
| 053.000.364.010 | PSH |
| 053.000.364.016 | PSH |
| 1127319101 | BOSCH |
| 1127320994 | BOSCH |
| 139172 | HUCO |
| 139174 | HUCO |
| 21101411BN | REAL |
| 230640 | CARGO |
| 230729 | CARGO |
| 3090431 | VOLVO |
| 81113457 | POWERMAX |
| 81116665 | POWERMAX |
| AEB0640 | KRAUF |
| BOS1127320994 | WOODAUTO |
| CQ1080369 | CQ |
| CQ1080416 | CQ |
| CRC10114AS | CASCO |
| F032230640 | CARGO |
| F032230729 | CARGO |
| RB-64H | MOBILETRON |
| RB-74H | MOBILETRON |
| RCT1012 | ELECTROLOG |
| RTF39852 | WOODAUTO |
| SRC10114.0 | SANDO |
Video/Publications
0120468053 0120468093 0120468114 0120468135 0120468140 0120468144 0120469013 0120469018 0120469033 0120469041 0120469044 0120469500 0120469510 0120469512 0120469524 0120469525 0120469527 0120469537 0120469538 0120469539 0120469560 0120469561 0120469562 0120469575 0120469576 0120469577 0120469578 0120469592 0120469593 0120469761 0120469796 0120469818 0120469819 0120469963 0120469983 6033G3020B 6033GB3020 6033GB3021 6033GB3053View your shopping basket or Browse other items in Rectifier.
