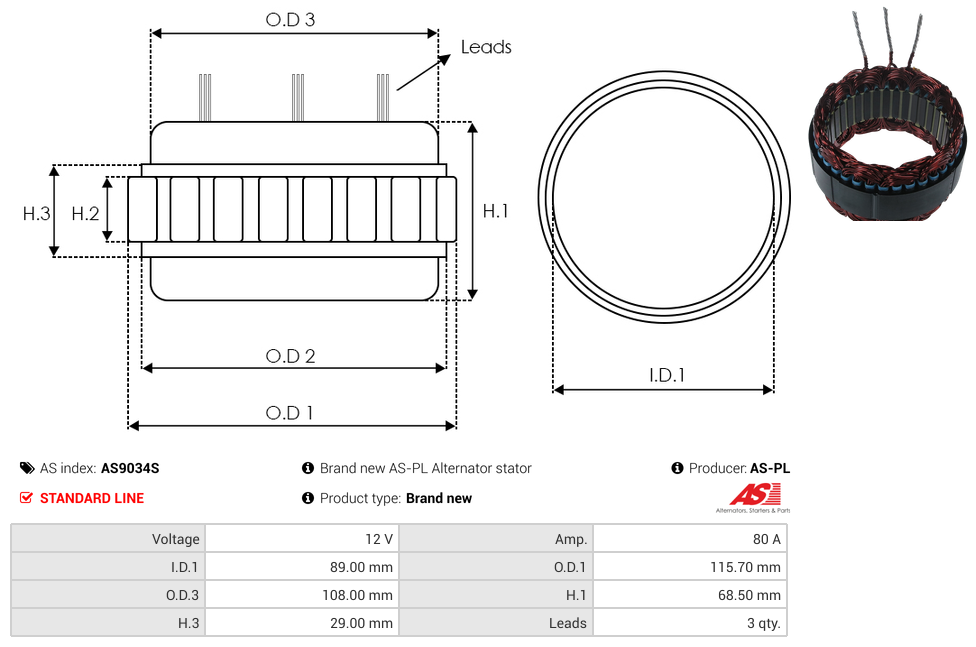

Specifications
| Amp | 80 A |
| Height (H.1) | 68.5 mm |
| Inside Diameter (I.D.1) | 89 mm |
| Lam. Stack Height (H.3) | 29 mm |
| No./Leads | 3 qty |
| Outside Diameter (O.D.1) | 115.7 mm |
| Outside Diameter of Windings (O.D.3) | 108 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Reference Information
UD49018ASVideo/Publications
96945926 A9276SAdd Your Number
