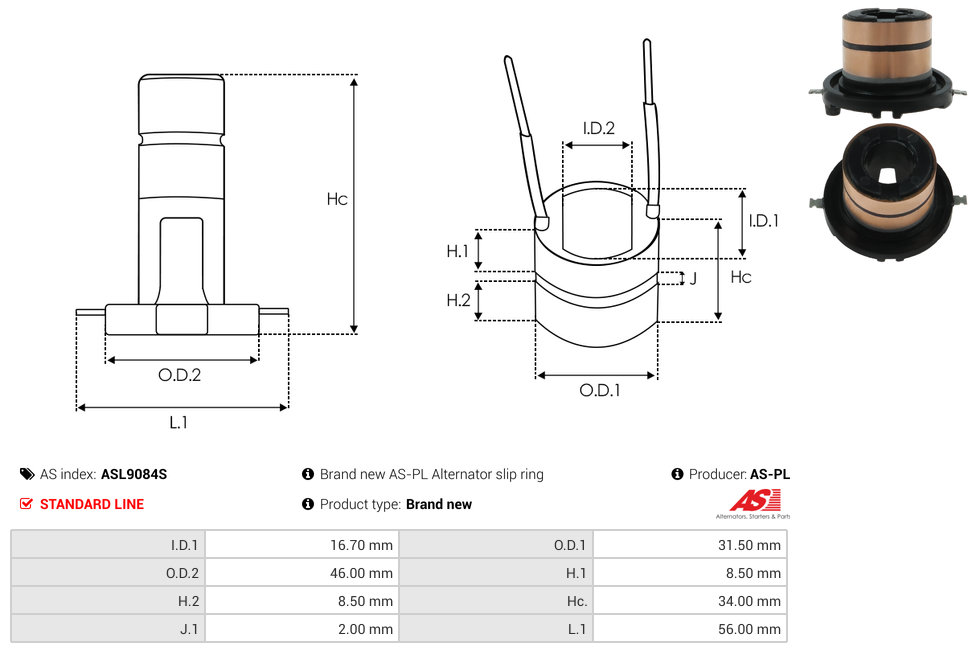

Specifications
| Height (H.1) | 8.5 mm |
| Height (H.2) | 8.5 mm |
| Height of Slipring (Hc.) | 34 mm |
| Inside Diameter (I.D.1) | 16.7 mm |
| Length (L.1) | 56 mm |
| Outside Diameter (O.D.1) | 31.5 mm |
| Outside Diameter (O.D.2) | 46 mm |
| Space between Copper Rings (J.1) | 2 mm |
| Unit Type | HITACHI |
