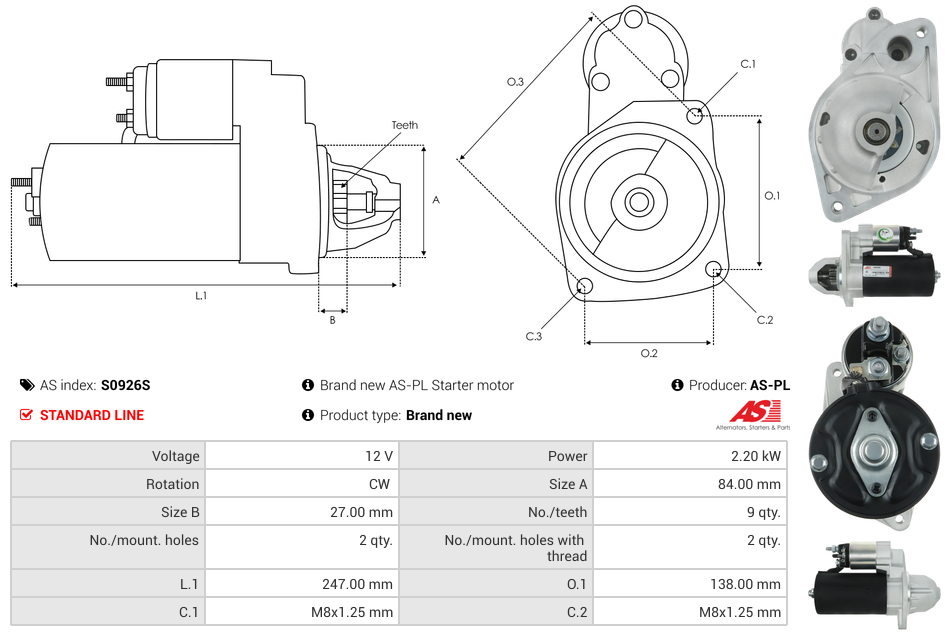

Specifications
Kilowatt | 2.2 kW |
Length (L.1) | 247 mm |
Mount Hole Center - Center (O.1) | 138 mm |
Mount Hole Diameter (C.1) | M8x1.25 mm |
Mount Hole Diameter (C.2) | M8x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 9 qty |
Pinion at Rest (B) | 27 mm |
Rotation | CW |
Spigot Diameter (A) | 84 mm |
Unit Type | BOSCH |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
IVECO | Various Models |
Reference Information
399501007 BOM UNIT CST10080RS 256899B 399501006 000399501006 20401080BN 6010080 240.509.092.280 000399501007 5801394025 UD101811S 20401080RC 6010080.2 CST10080AS STB9988 120-7152Add Your Number
