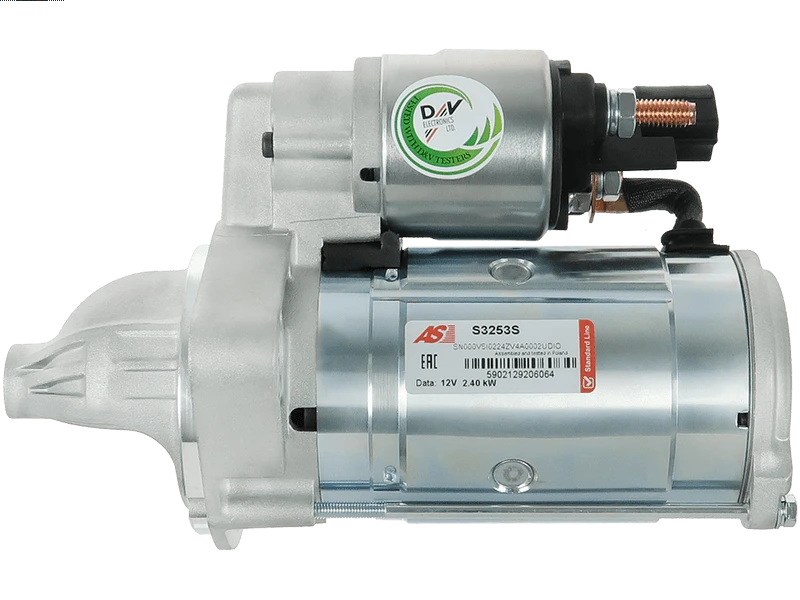

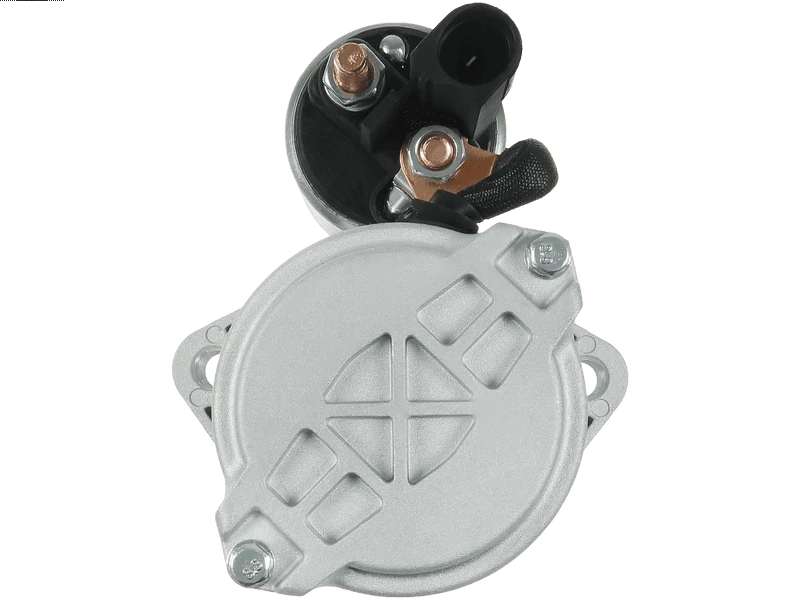

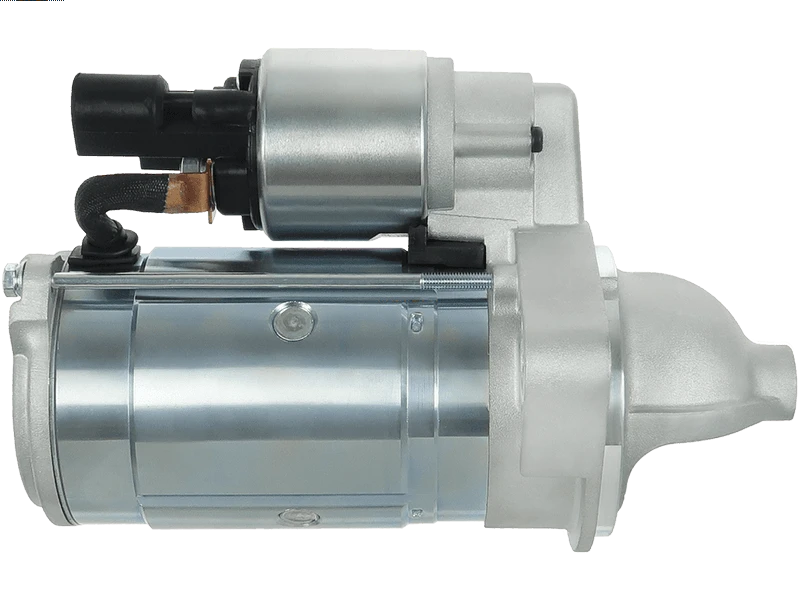

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 363.60 including GST
NZ$ 316.17 excluding GST
or four payments of $90.90
with
Learn More
each
S3253S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TS24E13Associated Numbers
47-316

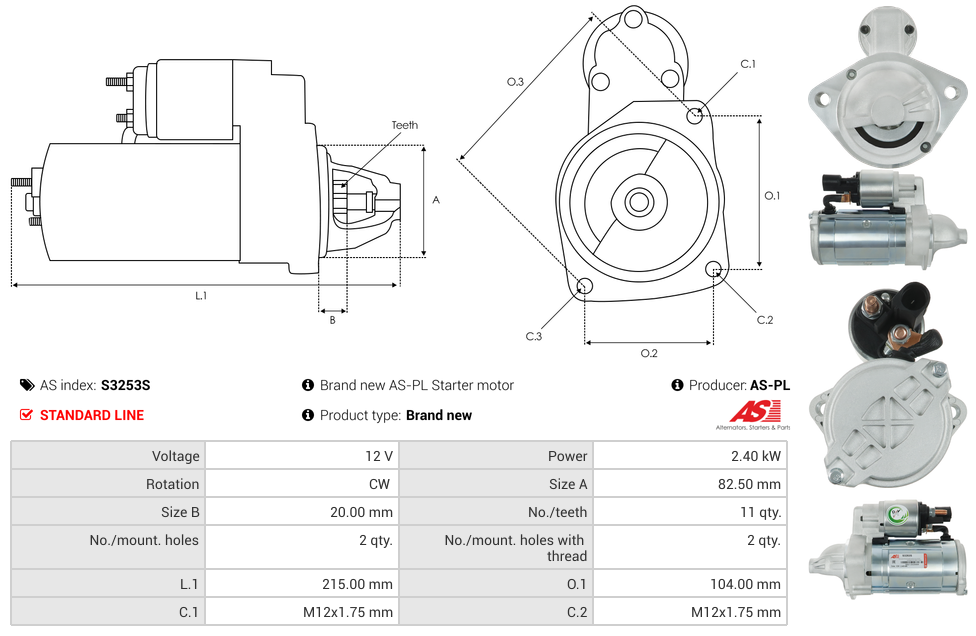

Specifications
| Kilowatt | 2.40 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Crafter 30-35 2.5 TDi | [BJJ] | 04.2006-07.2011 |
| VW | Crafter 30-35 2.5 TDi | [BJK] | 04.2006-05.2013 |
| VW | Crafter 30-35 2.5 TDi | [BJL] | 04.2006-05.2013 |
| VW | Crafter 30-35 2.5 TDi | [BJM] | 04.2006-07.2011 |
| VW | Crafter 30-35 2.5 TDi | [CEBA] | 04.2006-07.2011 |
| VW | Crafter 30-35 2.5 TDi | [CEBB] | 04.2006-05.2013 |
| VW | Crafter 30-35 2.5 TDi | [CECA] | 04.2006-05.2013 |
| VW | Crafter 30-35 2.5 TDi | [CECB] | 04.2006-07.2011 |
| VW | Crafter 30-50 2.5 TDi | [BJJ] | 04.2006-07.2011 |
| VW | Crafter 30-50 2.5 TDi | [BJK] | 04.2006-05.2013 |
| VW | Crafter 30-50 2.5 TDi | [BJL] | 04.2006-05.2013 |
| VW | Crafter 30-50 2.5 TDi | [BJM] | 04.2006-07.2011 |
| VW | Crafter 30-50 2.5 TDi | [CEBA] | 04.2006-07.2011 |
| VW | Crafter 30-50 2.5 TDi | [CEBB] | 04.2006-05.2013 |
| VW | Crafter 30-50 2.5 TDi | [CECA] | 04.2006-05.2013 |
| VW | Crafter 30-50 2.5 TDi | [CECB] | 04.2006-07.2011 |
Reference Information
| 076911023B | VW |
| 076911023BX | VW |
| 079911023B | VW |
| 079911023BX | VW |
| 10015260OV | ITAB AUTOMOTIVE |
| 10439494 | ALANKO |
| 11090232 | EUROTEC |
| 115841 | CARGO |
| 12419 | EAI |
| 201178 | VALEO |
| 20479062OE | REAL |
| 220800 | ERA |
| 25-4335 | ELSTOCK |
| 254923 | KUHNER |
| 254923V | KUHNER |
| 300.918.112.000 | PSH |
| 300.918.112.500 | PSH |
| 300.918.112.505 | PSH |
| 30498N | WAI / TRANSPO |
| 3117023 | HENKEL PARTS |
| 3117024 | HENKEL PARTS |
| 3158 | CEVAM |
| 331820 | LOGISTIK |
| 438231 | VALEO |
| 458395 | VALEO |
| 460547 | VALEO |
| 6015260.1 | SANDO |
| 76911023B | VW |
| 76911023BX | VW |
| 8080396 | FRIESEN |
| 88214553 | POWERMAX |
| 8EA011613-051 | HELLA |
| A91750 | ATL AUTOTECHNIK |
| AEY2663 | AUTOELECTRO |
| CGB-54335 | AINDE |
| CST15260GS | CASCO |
| DRS0823 | DELCO |
| F032115841 | CARGO |
| IR9815 | PROTECH |
| LRS02663 | LUCAS |
| LRS2663 | LUCAS |
| MAV172600 | SIOM |
| PRSS532 | 3EFFE |
| S132.420 | PSH |
| S145.514 | PSH |
| S149.169 | PSH |
| S3253S | AS-PL |
| STR00066 | ELECTROLOG |
| STR54211 | WOODAUTO |
| STRS532 | 3EFFE |
| STV2416 | KRAUF |
| STX200206 | STARDAX |
| STX200206R | STARDAX |
| TS24E13 | VALEO |
| UD102132S | AS-PL |
| UD90410S | AS-PL |
| V10-12-50003 | VEMO |
| VAL438231 | WOODAUTO |
| VALTS24E13 | WOODAUTO |
| VW9116 | SNRA |
| WG2013364 | WILMINK GROUP |
| WOOSTR54211 | WOODAUTO |
Video/Publications
