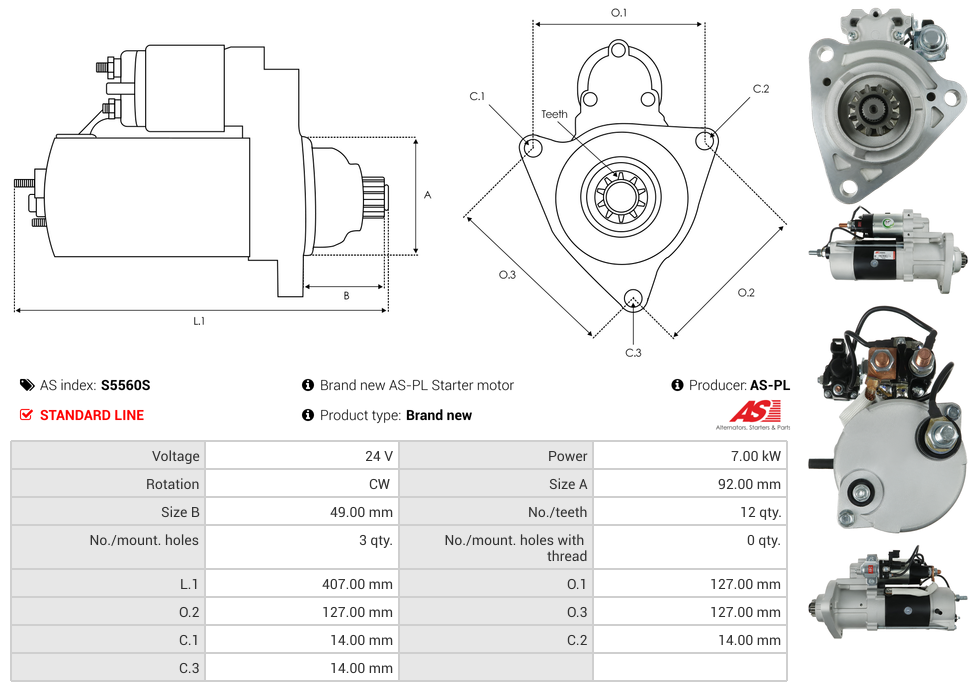

Specifications
| Kilowatt | 7 kW |
| Length (L.1) | 407 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | Various Models | ||
| MITSUBISHI | Fuso |
Reference Information
20437417OE 108338 M009T86379 SMI714 336647 M9T86379 UD101826S 6035714.1 MITM9T86379 CST35714GS M9T86379AM STM2595 51.26201-7267 M009T86379AM 551.576.123.370 F530200220430 MAV377140 51.26201-7297 551.576.123.130Add Your Number
