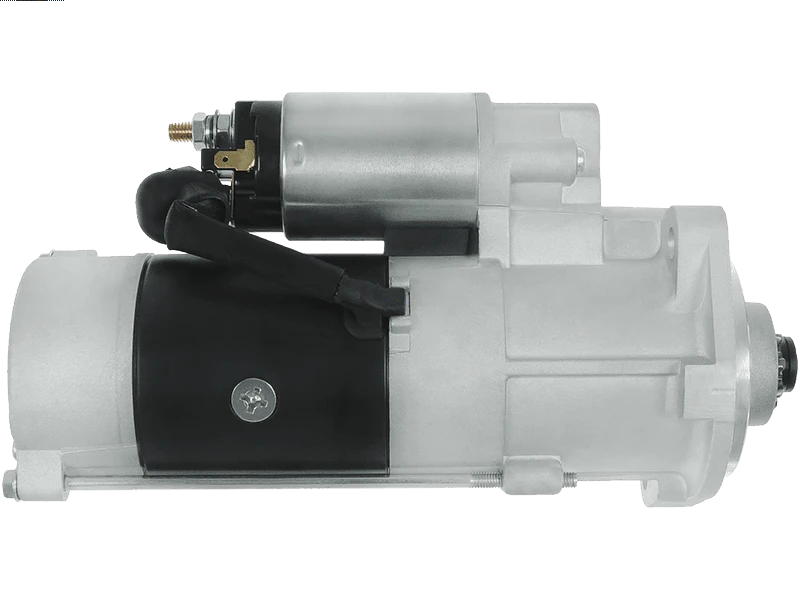

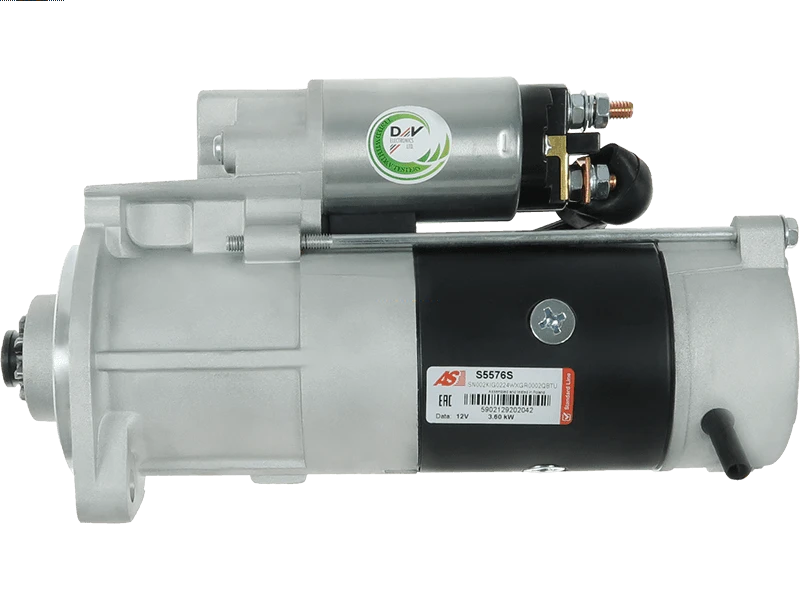

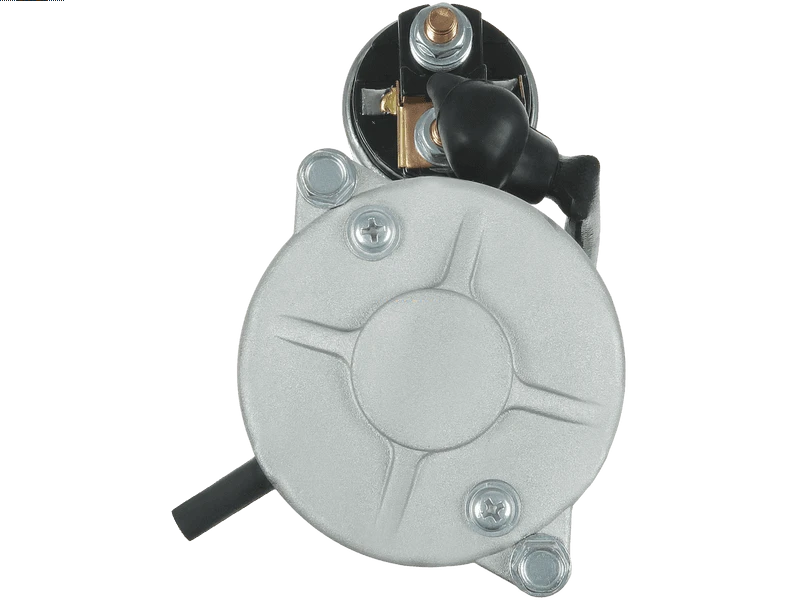

S5576S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 604.15 including GST

NZ$ 525.34 excluding GST
each
S5576S
No stock in NZ
No stock in NZ
Kilowatt3.6 kW
Length (L.1)286 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
Pinion at Rest (B)25 mm
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeMITSUBISHI
Voltage12 V
Make Model Type Year
AEBI TP48 3.3 [V3007DI-T]
BOBCAT S630 3.3 [V3007DI-T] 01.2010-12.2017
BOBCAT S650 3.3 [V3007DI-T]
BOBCAT S770 3.8 [V3800-DI-T-E3] 01.2010-12.2017
BOBCAT T 630 3.3 [V3007DI-T]
BOBCAT T 650 3.3 [V3007DI-T]
BOBCAT T 770 3.3 [V3007DI-T]
BOMAG BF 300 C2 3.3 [V3307CR-T]
BOMAG BF 300 C 3.3 [V3307T]
BOMAG BF 300 P 3.3 [V3307T]
BOMAG BW 11 RH-5 3.3 [V3307DI-T]
BOMAG BW 141 AD-50 3.3 [V3307CR-T]
BOMAG BW 141 AD-5 3.3 [V3307CR-T]
BOMAG BW 145 D-5 3.3 [V3307CR-T]
BOMAG BW 145 DH-5 3.3 [V3307CR-T]
BOMAG BW 145 PDH-5 3.3 [V3307CR-T]
BOMAG BW 151 AC-50 3.3 [V3007DI-T]
BOMAG BW 151 AC-5 3.3 [V3307CR-T]
BOMAG BW 151 ACP-4V 3.3 [V3307CR-T]
BOMAG BW 151 AD-50 3.3 [V3007CR-T]
BOMAG BW 151 AD-50 H 3.3 [V3007CR-T]
BOMAG BW 151 AD-5 3.3 [V3307CR-T]
BOMAG BW 151 AD-5 AM 3.3 [V3307CR-T]
BOMAG BW 151 AD-5 SH 3.3 [V3307CR-T]
BOMAG BW 154 ACP-4V 3.3 [V3307CR-T]
BOMAG BW 154 AD-5 3.3 [V3307CR-T]
BOMAG BW 154 AD-5 SH 3.3 [V3307CR-T]
BOMAG BW 154 AP-4V 3.3 [V3307CR-T]
BOMAG BW 161 AD-5 AM 3.3 [V3307CR-T]
BOMAG BW 174 ACP-4V 3.3 [V3307CR-T]
BOMAG BW 174 Hybrid 3.3 [V3307CR-T]
BOMAG BW 177 D-5 3.3 [V3307DI-T]
BOMAG BW 177 DH-5 3.3 [V3307CR-T]
BOMAG BW 177 DH-5 3.3 [V3307DI-T]
CATERPILLAR 259D3 3.3 [C3.3BDIT]
CATERPILLAR 272D 3.8 [C3.8] 01.2014-12.2017
CATERPILLAR 279D3 3.3 [C3.3BDIT]
CATERPILLAR 299D 3.8 [C3.8] 01.2014-12.2017
CATERPILLAR 308CR 3.3 [C3.3BDIT]
CATERPILLAR 308E2 CR 3.3 [C3.3BDIT]
CATERPILLAR 309CR 3.3 [C3.3BDIT]
CATERPILLAR 310CR 3.3 [C3.3BDIT]
CATERPILLAR 906M 3.3 [C3.3BDIT]
CATERPILLAR 906M AG 3.3 [C3.3BDIT]
CATERPILLAR 907M 3.3 [C3.3BDIT]
CATERPILLAR 907M AG 3.3 [C3.3BDIT]
CATERPILLAR 908M 3.3 [C3.3BDIT]
CATERPILLAR 908M AG 3.3 [C3.3BDIT]
DIECI 35.11 GD 3.3 [V3307CR-T]
DIECI 40.7 GD 3.3 [V3307CR-T]
DIECI T50 3.3 [V3307CR-T]
DIECI T60 3.3 [V3307CR-T]
GEHL CTL 85 3.8 [V3800DI-T] 12.2007-12.2012
HAMM H 5i 3.3 [V3007CR-T]
HAMM H 7i 3.3 [V3007CR-T]
HYUNDAI 25D-9 3.3 [V3307DI-T]
HYUNDAI 30D-9 3.3 [V3307DI-T]
HYUNDAI 33D-9 3.3 [V3307DI-T]
HYUNDAI 35DA-9 3.3 [V3307DI-T]
HYUNDAI HSL850-7A 2.4 [V2403]
KUBOTA KX080-4.. 3.3 [V3307CR-T-TE5-BH-1]
KUBOTA KX080-4.. 3.3 [V3307DI-T]
KUBOTA M105SHC 3.8 [V3800-DI] 01.2003-12.2009
KUBOTA M105SHDC 3.8 [V3800-DI] 01.2003-12.2009
KUBOTA M105X 3.8 [V3800-DI] 01.2003-12.2009
KUBOTA M108S 3.8 [V3800-DI] 01.2007-12.2009
KUBOTA M115GX-III 6.1 [V6108-CR]
KUBOTA M115GX-IV 6.1 [V6108-CR]
KUBOTA M125GX-IV 6.1 [V6108-CR]
KUBOTA M126GX 6.1 [V6108-TI-CRS] 01.2011-12.2015
KUBOTA M128GX-II 6.1 [V6108-CR] 01.2015-12.2016
KUBOTA M135GX-III 6.1 [V6108-CR]
KUBOTA M135GX-IV 6.1 [V6108-CR]
KUBOTA M4073 3.3 [V3307CR-TE5]
KUBOTA M6040 3.3 [V3307DI-E2-SS] 01.2007-12.2009
KUBOTA M6040DT 3.3 [V3307DI-E2-SS] 01.2007-12.2009
KUBOTA M6122 6.1 [V6108-CR]
KUBOTA M6132 6.1 [V6108-CR]
KUBOTA M6142 6.1 [V6108-CR]
KUBOTA M6800 3.3 [V3300] 01.1998-12.2005
KUBOTA M6800DT 3.3 [V3300] 01.1998-12.2004
KUBOTA M6800 HDC 3.3 [V3300] 01.2001-12.2005
KUBOTA M6800HD-F 3.3 [V3300] 01.2001-12.2005
KUBOTA M6800S 3.3 [V3300] 01.1998-12.2004
KUBOTA M6800SDC 3.3 [V3300] 01.2000-12.2004
KUBOTA M6800SDT 3.3 [V3300] 01.1998-12.2005
KUBOTA M6800S-F 3.3 [V3300] 01.1998-12.2005
KUBOTA M7040 3.3 [V3307-DI-E2-1] 01.2007-12.2009
KUBOTA M7060 3.3 [V3307CF] 01.2013-
KUBOTA M7131 6.1 [V6108-CR]
KUBOTA M7132 6.1 [V6108-CR]
KUBOTA M7151 6.1 [V6108-CR]
KUBOTA M7152 6.1 [V6108-CR]
KUBOTA M7171 6.1 [V6108-CR]
KUBOTA M7172 6.1 [V6108-CR]
KUBOTA M8200 3.3 [V3300] 01.1998-12.2005
KUBOTA M8200C 3.3 [V3300] 01.1998-12.2005
KUBOTA M8200CCS 3.3 [V3300] 01.1998-12.2005
KUBOTA M8200DTC 3.3 [V3300] 01.1998-12.2005
KUBOTA M8200DT-F 3.3 [V3300] 01.1998-12.2005
KUBOTA M8200F 3.3 [V3300] 01.1998-12.2004
KUBOTA M8200SDNBC 3.3 [V3300] 01.2000-12.2005
KUBOTA M8540DTQ 3.8 [V3800DI-TE2QZ] 01.2007-12.2009
KUBOTA M8540HDNBC 3.8 [V3800DI-TE2QZ] 01.2007-12.2009
KUBOTA M8540HDNBPC 3.8 [V3800DI-TE2QZ] 01.2007-12.2009
KUBOTA M9000 3.3 [V3300] 01.2099-12.2009
KUBOTA M9000DTM 3.3 [V3300] 01.2000-12.2009
KUBOTA M9000DTMC 3.3 [V3300] 01.2001-12.2009
KUBOTA M9000HDC 3.3 [V3300TIE] 01.2002-12.2009
KUBOTA M9000HDD-F 3.3 [V3300TIE] 01.2002-12.2005
KUBOTA M9540DTHQ 3.8 [V3800DI-TE2-QZ-HS] 01.2099-12.2009
KUBOTA M9540DTQ 3.8 [V3800DI-TE2-QZ] 01.2099-12.2009
KUBOTA M95SDSC 3.8 [V3800DI] 01.2003-12.2009
KUBOTA M95SDSCS 3.8 [V3800DI] 01.2003-12.2009
KUBOTA V3307 3.3 [V3307CR-T]
KUBOTA V3307 3.3 [V3307DI-T]
MANITOU MLT 625-75H 3.3 [V3307-TE] 01.2011-
TAKEUCHI TL230 3.3 [V3307-D1]
TAKEUCHI TL8R2 3.3 [V3307-CR]
THOMAS 225 3.3 [V3300T]
THOMAS T 225 HF 3.3 [V3007CR-T] 01.2004-12.2011
THOMAS T 245 HD 3.3 [V3007CR-T] 01.1998-12.1999
VOLVO L30G 3.3 [D3.3H]
CGB-23181 M8T50476AM 1G777-63012 5741747 1G777-63013 255363M S-80275 M008T51273AM DS1629 8EA015642-171 M008T50471ZC 1K012-63014 1G777-63010 MS973 1G777-63011 5035730 M008T50471AM M008T50670 M008T50471 M008T50672 336396 M008T50671 M008T50473 M008T50476 M008T50674 M008T50673 M8T51273 AZE4704 LRS02436 8187 XJBT02322 M008T6301 M008T50674AM M8T50673AM 130-80101 M008T50672AM M8T6301 M008T51372 6035215.1 20437512OE M8T51372AM 11.139.209 M8T51273AM LRS2436 M008T50476AM 1K964-63011 255363 M8T50471ZC CGB-23181R UD101253S CST35215GS M8T50471AM DRS0519 72524861 88214619 M8T51372 STM4167 17586N S5576S M8T50674AM M8T50672AM IS9507 M008T51273 1K012-63013 STR71106 25-4108 1K012-63012 M008T51372AM 114167 1K012-63011 1K012-63010 RNLM8T50471 M8T50471 M8T50670 M8T50671 M8T50473 M8T50672 M8T50475 M8T50673 M8T50476 M8T50674
