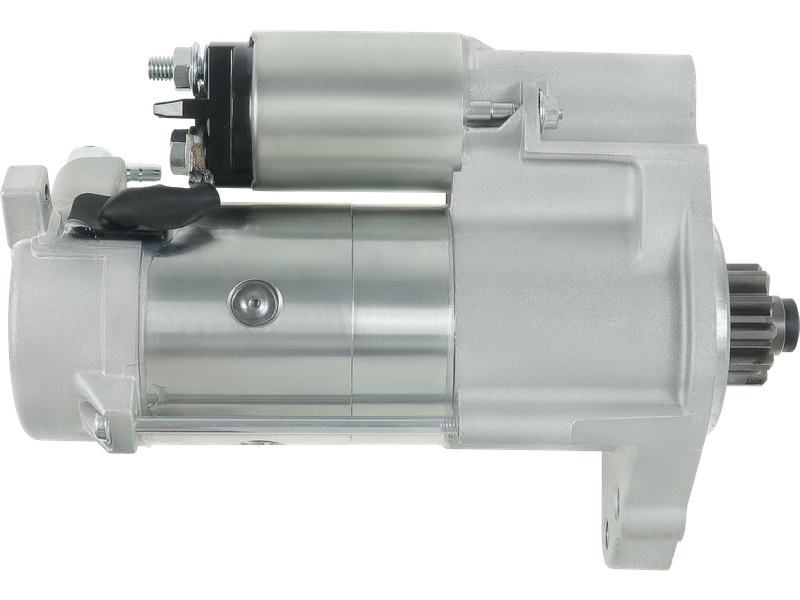

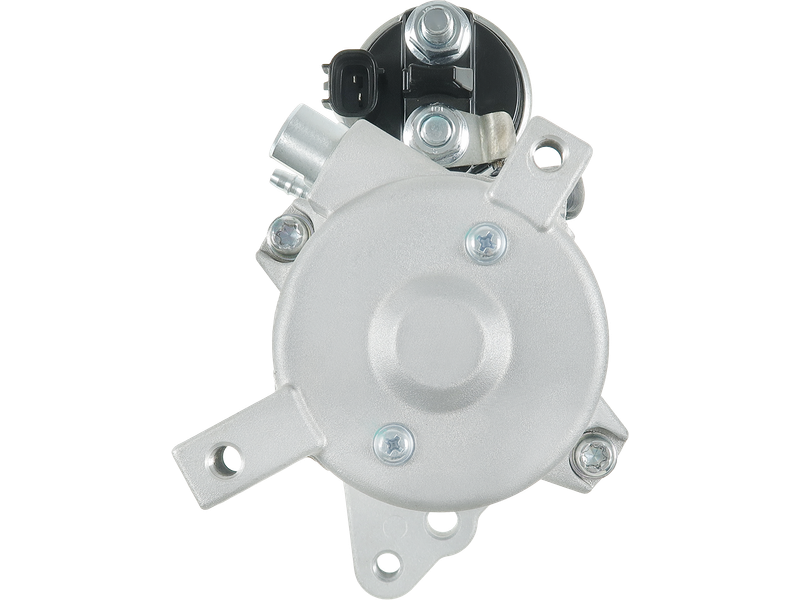

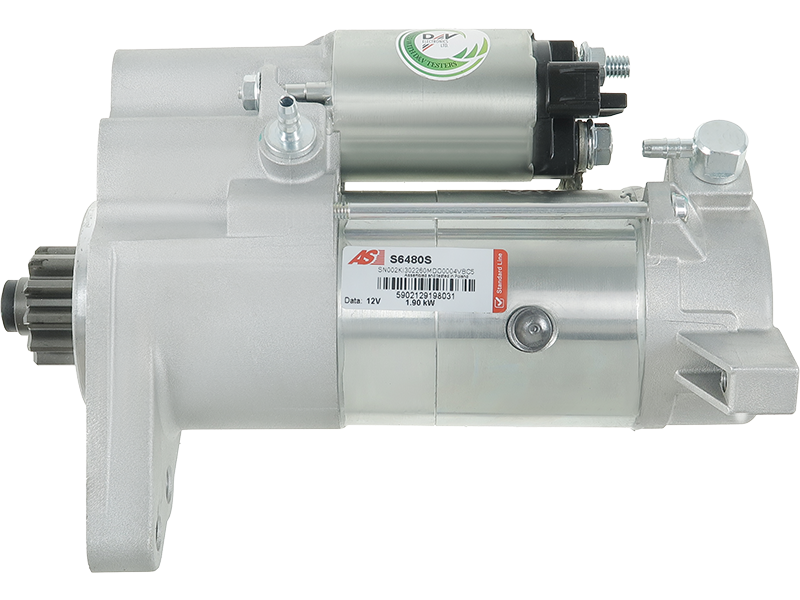

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 536.67 including GST
NZ$ 466.67 excluding GST
or four payments of $134.17
with
Learn More
each
SAM-C11005
S6480S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information
428000-9580Specifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 147 mm |
| Mount Hole Center - Center (O.2) | 25 mm |
| Mount Hole Center - Center (O.3) | 130 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Discovery 3.0 D 4x4 | [306DT] | 09.2016- |
| LAND ROVER | Discovery 3.0 SDV6 4x4 | [306DT] | 11.2009- |
| LAND ROVER | Discovery 3.0 TD 4x4 | [306DT] | 01.2011-12.2017 |
| LAND ROVER | Discovery 3.0 TD 4x4 | [306DT] | 05.2010- |
| LAND ROVER | Discovery 3.0 TD 4x4 | [306DT] | 07.2012- |
| LAND ROVER | Discovery 3.0 TD 4x4 | [306DT] | 09.2009- |
| LAND ROVER | Discovery 3.0 TD6 4x4 | [306DT] | 09.2016- |
| LAND ROVER | Range Rover 3.0 SDV6 4x4 | [306DT] | 08.2012- |
| LAND ROVER | Range Rover 3.0 SDV6 Hybrid 4x4 | [306DT] | 06.2015- |
| LAND ROVER | Range Rover 3.0 SDV6 Hybrid 4x4 | [306DT] | 10.2013- |
| LAND ROVER | Range Rover 3.0 TDV6 4x4 | [306DT] | 08.2012- |
| LAND ROVER | Range Rover 3.0 TDV6 4x4 | [306DT] | 10.2013- |
| LAND ROVER | Range Rover Sport 3.0 D 4x4 | [306DT] | 05.2010-03.2013 |
| LAND ROVER | Range Rover Sport 3.0 D 4x4 | [306DT] | 06.2011-03.2013 |
| LAND ROVER | Range Rover Sport 3.0 D 4x4 | [306DT] | 08.2012-03.2013 |
| LAND ROVER | Range Rover Sport 3.0 D 4x4 | [306DT] | 09.2009-03.2013 |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 04.2013- |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 04.2013-03.2016 |
| LAND ROVER | Range Rover Sport 3.0 SDV6 4x4 | [306DT] | 09.2014- |
| LAND ROVER | Range Rover Sport 3.0 SDV6 Hybrid 4x4 | [306DT] | 06.2015-12.2017 |
| LAND ROVER | Range Rover Sport 3.0 SDV6 Hybrid 4x4 | [306DT] | 10.2013- |
| LAND ROVER | Range Rover Sport 3.0 TDV6 4x4 | [306DT] | 04.2013- |
| LAND ROVER | Range Rover Sport 3.0 TDV6 4x4 | [306DT] | 04.2013-12.2018 |
Reference Information
| 20432274OE | REAL |
| 221079A | ERA |
| 25-5156 | ELSTOCK |
| 255557 | KUHNER |
| 255557D | KUHNER |
| 30563N | WAI / TRANSPO |
| 3268 | CEVAM |
| 428000-9580 | DENSO |
| 428000-9581 | DENSO |
| 428000-9582 | DENSO |
| 428000-9583 | DENSO |
| 428080-9583 | DENSO |
| 450.551.113.050 | PSH |
| 450.551.113.260 | PSH |
| 5040630 | MEAT & DORIA |
| 6040472.1 | SANDO |
| 88215162 | POWERMAX |
| AEY3994 | AUTOELECTRO |
| CGB-55156 | AINDE |
| CPLA-11001-BD | FORD |
| CPLA-11001-BE | FORD |
| CPLA-11001-BF | FORD |
| CST40472GS | CASCO |
| DENDSN1418 | WOODAUTO |
| DRS1162 | DELCO |
| DSN1418 | DENSO |
| E8153 | GHIBAUDI |
| GSSN1418-N | GPARTS |
| LR034027 | LAND ROVER |
| LR080305 | LAND ROVER |
| LRS03994 | LUCAS |
| LRS3994 | LUCAS |
| PRSE407 | 3EFFE |
| S12DE0651A2 | SIDAT |
| STM1405 | ROLLCO |
| STN1840 | KRAUF |
| STR70407 | WOODAUTO |
| STRE407 | 3EFFE |
| UD101240S | AS-PL |
| UD101815S | AS-PL |
