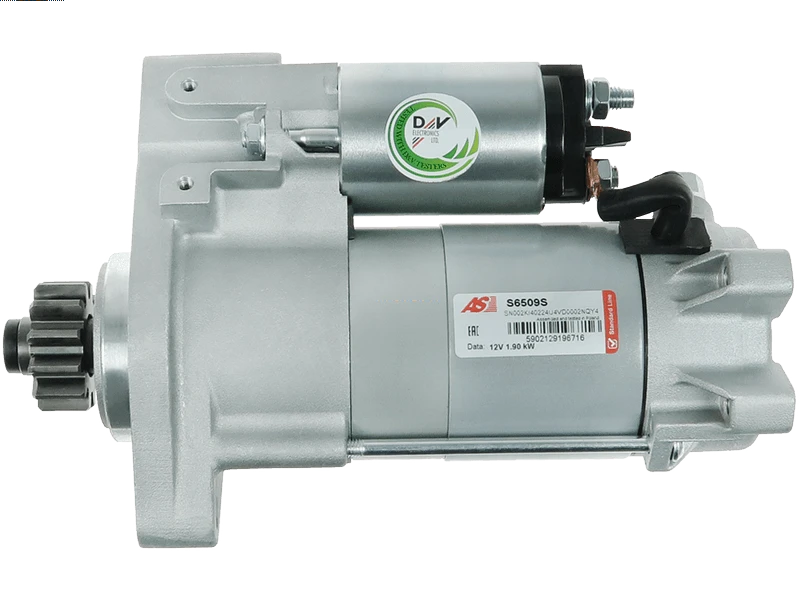

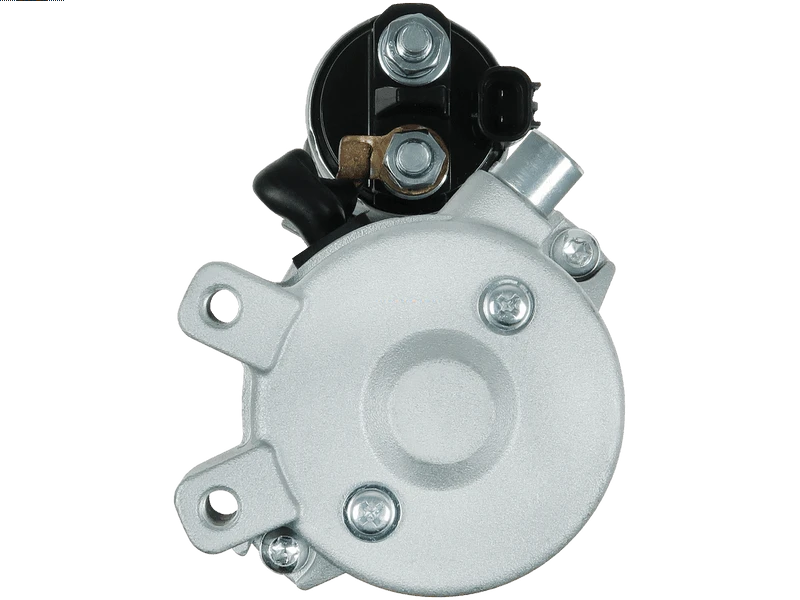

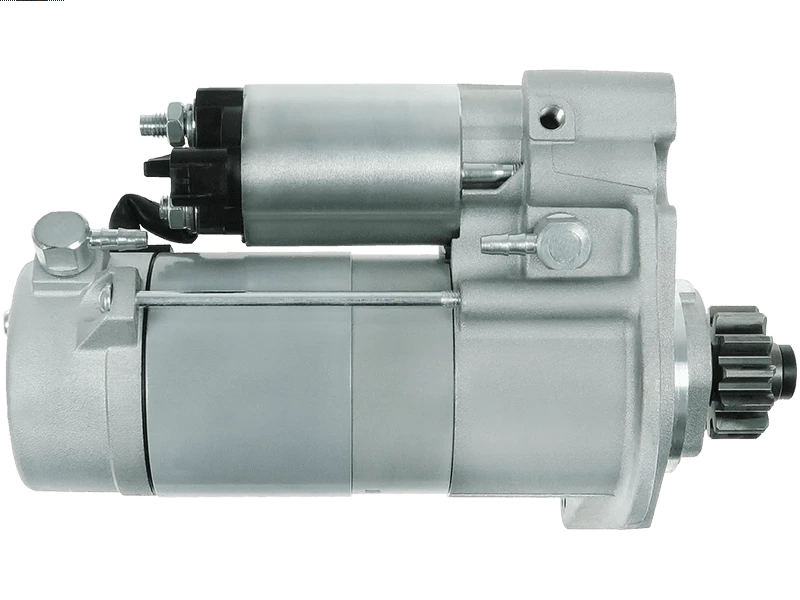

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 607.50 including GST
NZ$ 528.26 excluding GST
or four payments of $151.88
with
Learn More
UOM:
each
Alternative Item:
DSN1415
Product Code:
S6509S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Information
428000-9710Specifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 142 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Discovery 3.0 4x4 | [306PS] | 08.2013-12.2018 |
| LAND ROVER | DISCOVERY IV (L319) 3.0 4x4 | 306PS(AJ126) | 08.2013-12.2018 |
| LAND ROVER | Range Rover 3.0 SCV6 4x4 | [306PS] | 10.2013- |
| LAND ROVER | Range Rover 5.0 SCV8 4x4 | [508PS] | 08.2012- |
| LAND ROVER | Range Rover 5.0 V8 4x4 | [508PN] | 12.2013- |
| LAND ROVER | RANGE ROVER IV (L405) 3.0 SCV6 4x4 | 306PS(AJ126) | 06.2015-01.2016 |
| LAND ROVER | RANGE ROVER IV (L405) 3.0 SCV6 4x4 | 306PS(AJ126) | 10.2013-09.2021 |
| LAND ROVER | RANGE ROVER IV (L405) 5.0 SCV8 4x4 | 508PS(AJ133) | 06.2015-09.2021 |
| LAND ROVER | RANGE ROVER IV (L405) 5.0 SCV8 4x4 | 508PS(AJ133) | 08.2012-09.2021 |
| LAND ROVER | RANGE ROVER IV (L405) 5.0 SCV8 4x4 | 508PS(AJ133) | 11.2017-09.2021 |
| LAND ROVER | RANGE ROVER IV (L405) 5.0 SCV8 4x4 | 508PS(AJ133) | 11.2017-09.2021 |
| LAND ROVER | RANGE ROVER IV (L405) 5.0 V8 4x4 | 508PN(AJ133) | 12.2013-01.2016 |
| LAND ROVER | Range Rover Sport 3.0 SCV6 4x4 | [306PS] | 04.2013-12.2019 |
| LAND ROVER | Range Rover Sport 5.0 SCV8 4x4 | [508PS] | 01.2014-12.2018 |
| LAND ROVER | Range Rover Sport 5.0 SCV8 4x4 | [508PS] | 04.2013-12.2018 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 3.0 SCV6 4x4 | 306PS(AJ126) | 04.2013-12.2019 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 3.0 SCV6 4x4 | 306PS(AJ126) | 06.2015-12.2018 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 5.0 SCV8 4x4 | 508PS(AJ133) | 01.2014-12.2018 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 5.0 SCV8 4x4 | 508PS(AJ133) | 04.2013-12.2018 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 5.0 SCV8 4x4 | 508PS(AJ133) | 11.2017-03.2022 |
| LAND ROVER | RANGE ROVER SPORT II (L494) 5.0 SCV8 4x4 | 508PS(AJ133) | 11.2017-03.2022 |
Reference Information
| 20432964OE | REAL |
| 428000-9710 | DENSO |
| 428000-9711 | DENSO |
| 428000-9712 | DENSO |
| 428080-9712 | DENSO |
| 450.548.122.260 | WAI |
| 6040469.1 | SANDO |
| 91-29-5906 | WILSON |
| CST40469GS | CASCO |
| DEN428000-9710 | WOODAUTO |
| DPLA-11001-AC | FORD |
| DPLA-11001-AD | FORD |
| DSN1415 | DENSO |
| LR041976 | LAND ROVER |
| LR080307 | LAND ROVER |
| MAV424690 | SIOM |
| S145.114 | WAI |
| SG2126 | GHIBAUDI |
| STN9710 | KRAUF |
| UD101241S | AS-PL |
