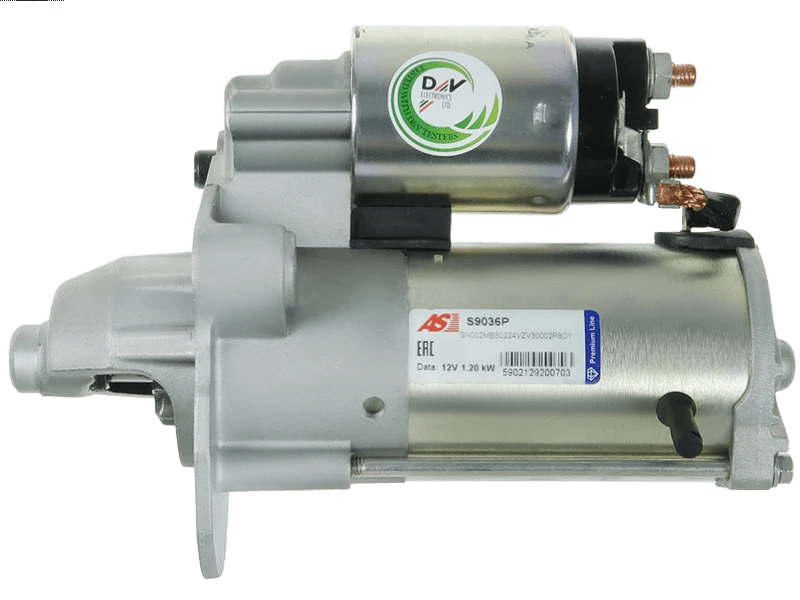

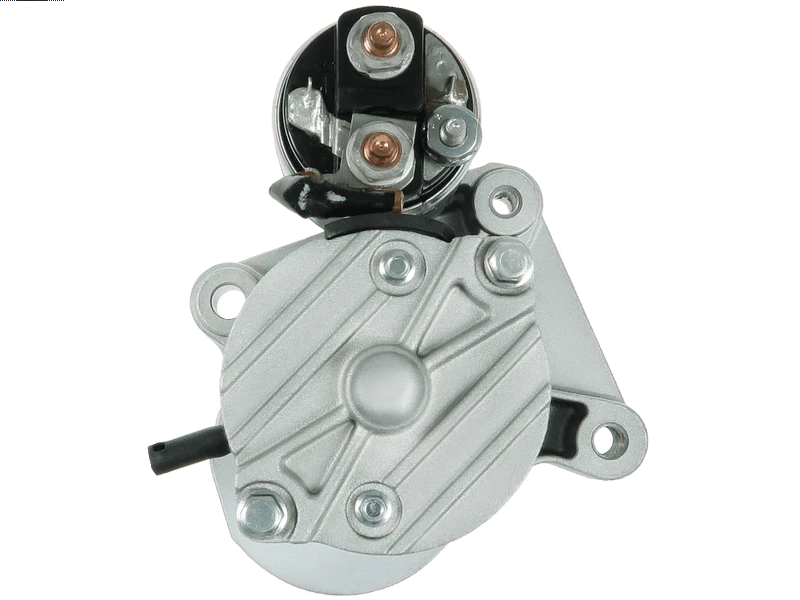

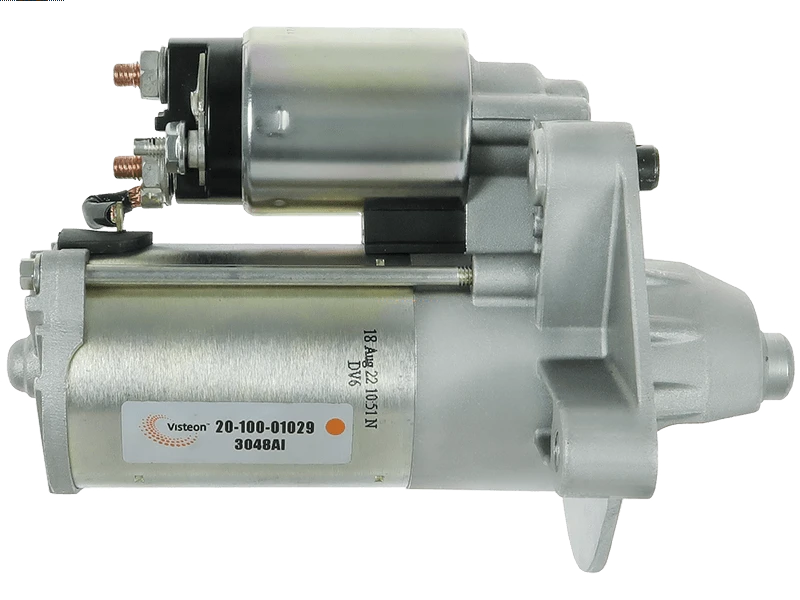

Brand new AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 428.09 including GST
NZ$ 372.25 excluding GST
or four payments of $107.02
with
Learn More
each
S9036P
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
20-100-01029Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Center - Center (O.2) | 74 mm |
| Mount Hole Center - Center (O.3) | 84 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 13 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | C-Max 1.6 TDCi | 02.2007- | |
| FORD | Focus 1.6 TDCi | [G8DA] | 11.2004- |
| FORD | Focus 1.6 TDCi | [G8DB] | 11.2004- |
| FORD | Focus 1.6 TDCi | [HHDA] | 05.2005- |
| FORD | Focus 1.6 TDCi C-Max | [G8DA] | 10.2003-03.2007 |
| FORD | Focus 1.6 TDCi C-Max | [G8DB] | 10.2003-03.2007 |
| FORD | Focus 1.6 TDCi C-Max | [HHDA] | 06.2005-03.2007 |
| FORD | Focus 1.6 TDCi C-Max | [HHDB] | 06.2005-03.2007 |
| MAZDA | 3 1.6 TD | [Y601] | 06.2004- |
| MAZDA | 3 1.6 Turbo Di | [Y601] | 06.2004- |
| VOLVO | C30 1.6 Diesel | [D4164T] | 10.2006- |
| VOLVO | S40 1.6 Diesel | [D4164T] | 01.2005- |
| VOLVO | V50 1.6 Diesel | [D4164T] | 01.2005- |
Reference Information
| 063280029010 | MAGNETI MARELLI |
| 0986022131 | BOSCH |
| 101341 | KUHNER |
| 101341V | KUHNER |
| 101341VA | KUHNER |
| 113908 | CARGO |
| 116062 | CARGO |
| 1229427 | FORD |
| 1233234 | FORD |
| 1254222 | FORD |
| 1368970 | FORD |
| 1469712 | FORD |
| 1707507 | FORD |
| 1715776 | FORD |
| 1762872 | FORD |
| 1986S01017 | BOSCH |
| 20-100-01029 | VISTEON |
| 20450901BN | REAL |
| 20450901OE | REAL |
| 2073366 | FORD |
| 2109635 | FORD |
| 220371 | ERA |
| 220371A | ERA |
| 25-3390 | ELSTOCK |
| 2S0124 | RIDEX |
| 2S0124X | RIDEX |
| 30644972 | VOLVO |
| 30667060 | VOLVO |
| 30667739 | VOLVO |
| 30795406 | VOLVO |
| 3123 | CEVAM |
| 32508N | WAI / TRANSPO |
| 36003219 | VOLVO |
| 36013613 | VOLVO |
| 3M5T-11000-CB | FORD |
| 3M5T-11000-CC | FORD |
| 3M5T-11000-CD | FORD |
| 3M5T-11000-CE | FORD |
| 3M5T-11000-CF | FORD |
| 3M5T-11000-CG | FORD |
| 42022131 | HERTH+BUSS |
| 446522 | VALEO |
| 458650 | VALEO |
| 5014010 | MEAT & DORIA |
| 590.539.113.020 | PSH |
| 590.539.113.028 | PSH |
| 590.539.113.231 | PSH |
| 590.539.113.235 | PSH |
| 6014109.0 | SANDO |
| 6014109.1 | SANDO |
| 63280029 | MAGNETI MARELLI |
| 8603690 | VOLVO |
| 88213302 | POWERMAX |
| 8EA011610-271 | HELLA |
| 8EA738258-091 | HELLA |
| 943213411010 | MAGNETI MARELLI |
| AEY2219 | AUTOELECTRO |
| AI-80035 | AINDE |
| ASM1046 | APEC |
| BG9T11000AA | FORD |
| BG9T-11000-AA | FORD |
| BS5111000AA | FORD |
| BS51-11000-AA | FORD |
| CS1341 | HC PARTS |
| CST14109AS | CASCO |
| CST14109GS | CASCO |
| DRS3968 | DELCO |
| DRS3968N | DELCO |
| EZ0046 | ELTA AUTOMOTIVE |
| F032113908 | CARGO |
| F032116062 | CARGO |
| F042S0H069 | UNIPOINT |
| FL1WA | FORD |
| GS001029-A | GPARTS |
| GS001029VI-R | GPARTS |
| LRS002219 | LUCAS |
| LRS02219 | LUCAS |
| MAV161090 | SIOM |
| MAV161090A | SIOM |
| MSN8029 | MAGNETI MARELLI |
| MSRC1341 | MAGNETI MARELLI |
| NPANSM1046 | NAPA |
| RE3M5T11000CF | FORD |
| RE3M5T-11000-CF | FORD |
| RM3M5T11000CF | FORD |
| RM3M5T-11000-CF | FORD |
| S12VS0193 | SIDAT |
| S12VS0193A2 | SIDAT |
| S134.444 | PSH |
| S144.531 | PSH |
| SG0388 | GHIBAUDI |
| STF1341 | KRAUF |
| STM1060 | ROLLCO |
| STR61812 | WOODAUTO |
| STR8914 | ELECTROLOG |
| STX200194 | STARDAX |
| STX200194R | STARDAX |
| STX200488 | STARDAX |
| STX200488R | STARDAX |
| STX201084 | STARDAX |
| UD101585S | AS-PL |
| Y601-18-400A | MAZDA |
| Y601-18-400B | MAZDA |
| Y601-18-400C | MAZDA |
