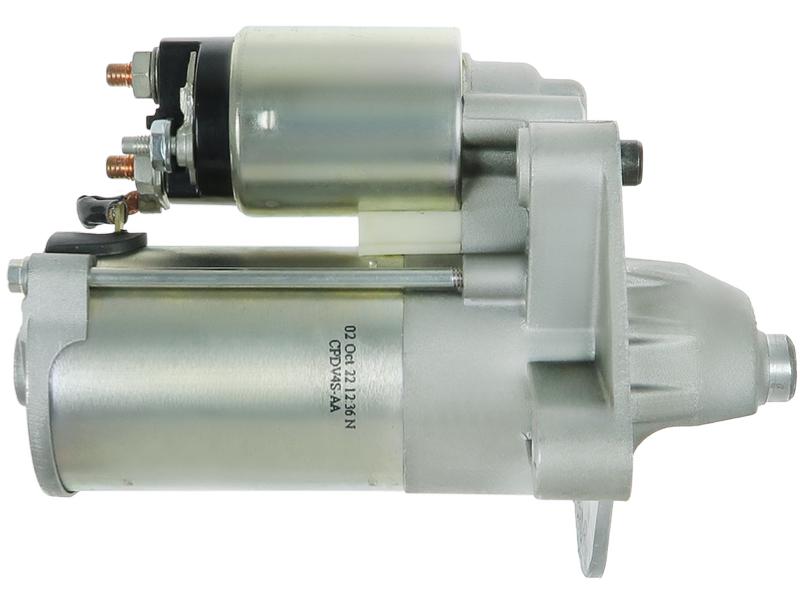

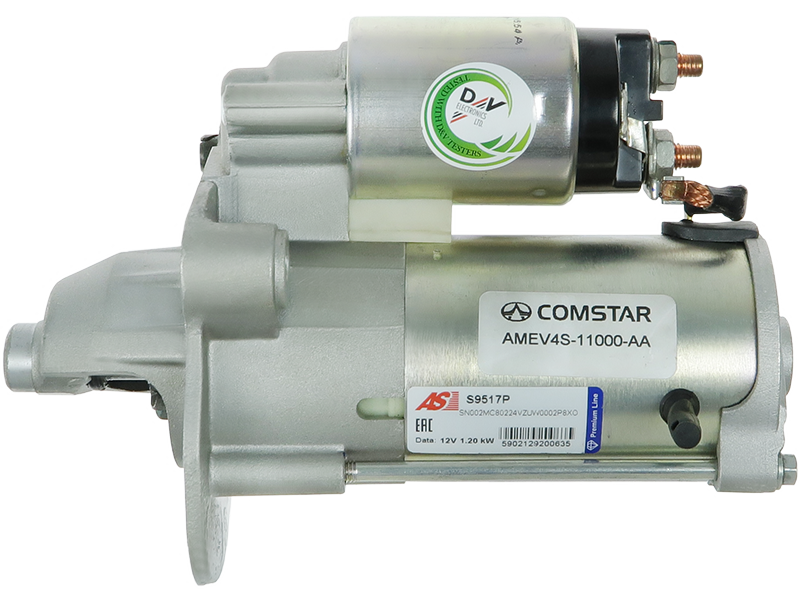

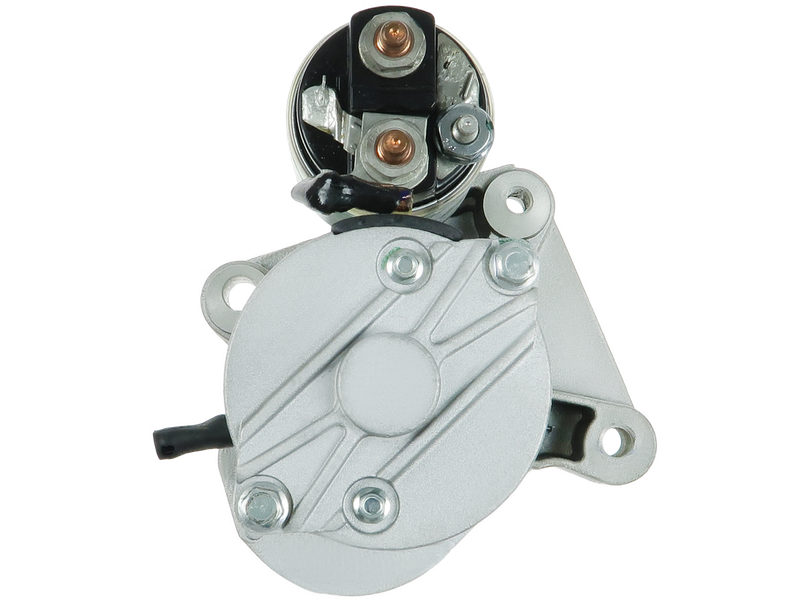

Brand new AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 515.40 including GST
NZ$ 448.17 excluding GST
or four payments of $128.85
with
Learn More
each
S9517P
No stock in NZ currently
No stock in NZ currently
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 211 mm |
| Mount Hole Center - Center (O.1) | 85 mm |
| Mount Hole Center - Center (O.2) | 115 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | V40 1.6 D2 | [D4162T] | 03.2012-12.2016 |
| VOLVO | V40 1.6 D2 | [D4162T] | 09.2013-12.2015 |
| VOLVO | V40 1.6 D2 DRIVe | [D4162T] | 09.2013-12.2015 |
| VOLVO | V40 Cross Country 1.6 D2 | [D4162T] | 09.2013-12.2015 |
| VOLVO | V40 Cross Country 1.6 D2 | 10.2012-12.2016 | |
| VOLVO | V40 Cross Country 1.6 D2 DRIVe | [D4162T] | 09.2013-12.2015 |
Reference Information
| 20450431OE | REAL |
| 25-5429 | ELSTOCK |
| 255611V | KUHNER |
| 30644972 | VOLVO |
| 31140-OS | WAI / TRANSPO |
| 31419997 | VOLVO |
| 36003225 | VOLVO |
| 36013613 | VOLVO |
| 6014134.1 | SANDO |
| 810.542.103.230 | PSH |
| AMEV4S-11000-AA | FORD |
| CST14134GS | CASCO |
| DRS1066 | DELCO |
| EV4S-11000-AA | FORD |
| LRS04267 | LUCAS |
| LRS4267 | LUCAS |
| MAV161340 | SIOM |
| STF1827 | KRAUF |
| STR61826 | WOODAUTO |
| UD101603S | AS-PL |
Video/Publications
