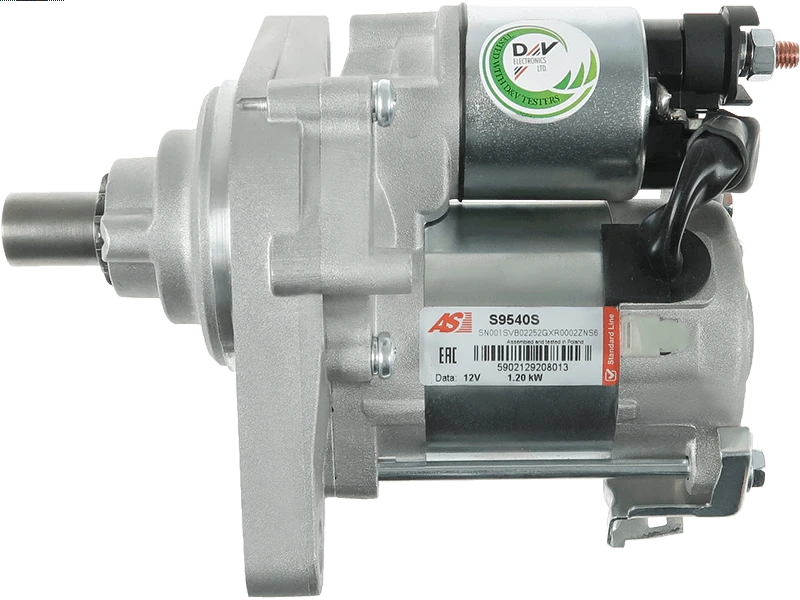

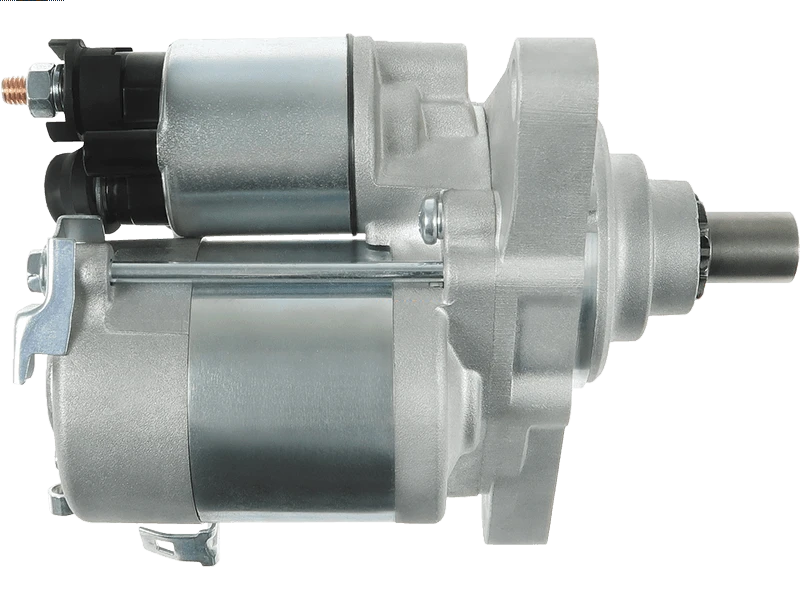

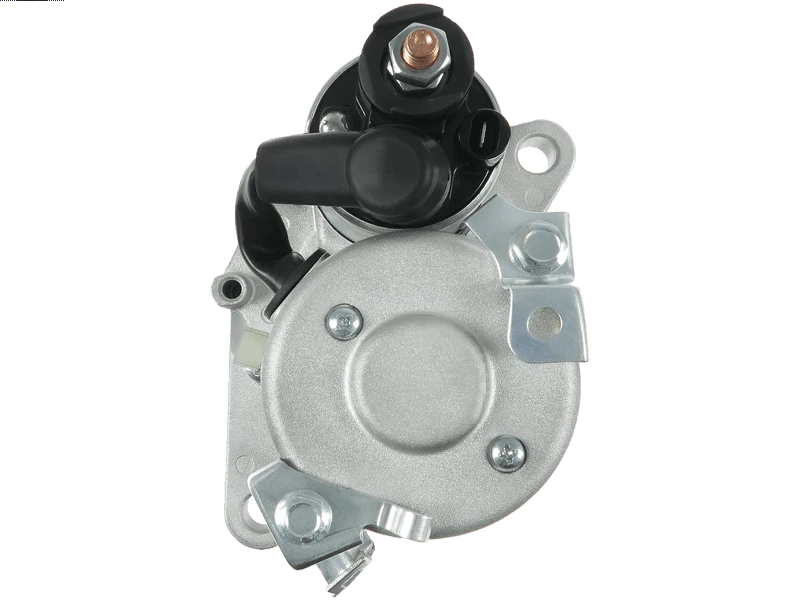

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 298.78 including GST
NZ$ 259.81 excluding GST
or four payments of $74.70
with
Learn More
UOM:
each
Product Code:
S9540S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Information
SM422-04Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 205 mm |
| Mount Hole Center - Center (O.1) | 146 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Ascot 2.5 | [G25A] | 01.1995-12.1997 |
| HONDA | ASCOT Estate (CB, CE) 2.5 (CE5) | G25A | 04.1995-10.1997 |
| HONDA | Inspire 2.5 | [G25A] | 01.1995-12.1998 |
| HONDA | Inspire 2.5 GX | [G25A] | 01.1995-12.1998 |
| HONDA | INSPIRE (UA1, UA3) 2.5 | G25A | 06.1995-08.1998 |
| HONDA | INSPIRE (UA1, UA3) 2.5 GX (CC2) | G25A | 06.1995-08.1998 |
Reference Information
| 0986JR1113 | BOSCH |
| 31200-P1R-004 | HONDA |
| 31200-P1R-024 | HONDA |
| SM422-04 | MITSUBA |
| SM422-05 | MITSUBA |
| STU0422 | KRAUF |
| UD20599S | AS-PL |
