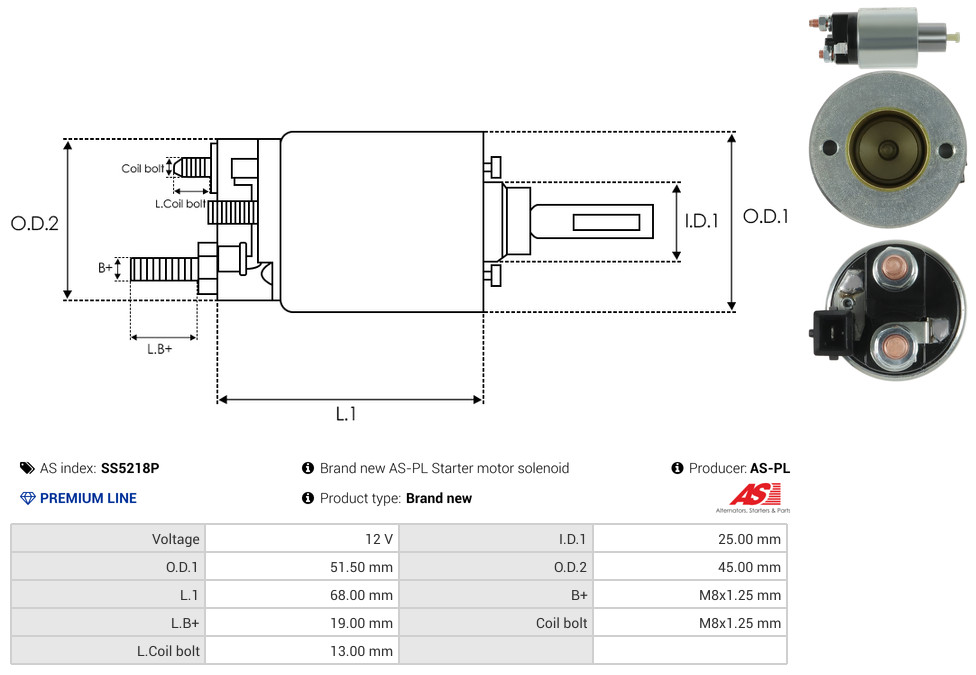

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 13 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 19 mm |
| Length (L.1) | 68 mm |
| Outside Diameter (O.D.1) | 51.5 mm |
| Outside Diameter (O.D.2) | 45 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Reference Information
330482 SSM1034 054.001.378.590 996 ZM996Video/Publications
M000T32271 M000T32271ZE M0T93981 M000T32272 M0T32272ZE S5275S M000T93981 S5275(MITSUBISHI) M0T32271 M0T32271ZE M000T32272ZE M0T32272Add Your Number
