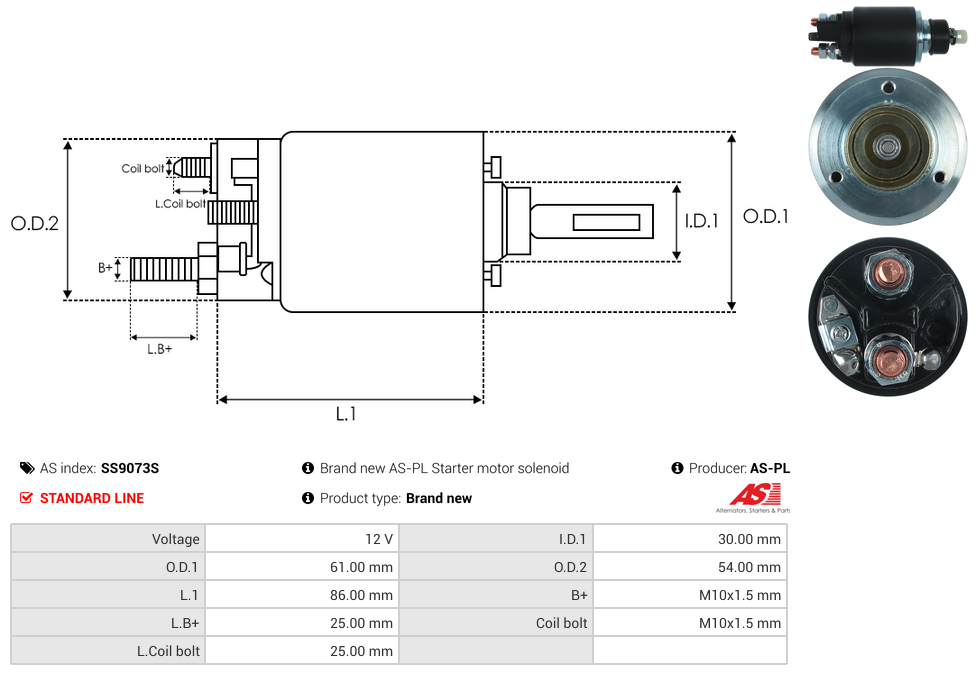

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
Coil Bolt Length | 25 mm |
Inside Diameter (I.D.1) | 30 mm |
L.B+ | 25 mm |
Length (L.1) | 86 mm |
Outside Diameter (O.D.1) | 61 mm |
Outside Diameter (O.D.2) | 54 mm |
Unit Type | ISKRA / LETRIKA |
Voltage | 12 V |
Reference Information
UD49089SS SOL79197 16.915.287 SSI4122 054.000.988.310 MSX1081KIT 72739426 MSX1081 MAHMSX1081KITVideo/Publications
AZE4125 11131526 11131604 AZE4123 11131520 AZE4240 11131464 11132154 11132155 11132260 AZF4362 AZF4143 AZF4122 AZF4364 S9228 11131535 AZE4234 S9232 11132328 11132325 11131550 11132144 AZF4135 AZF4155 AZE4239Add Your Number
