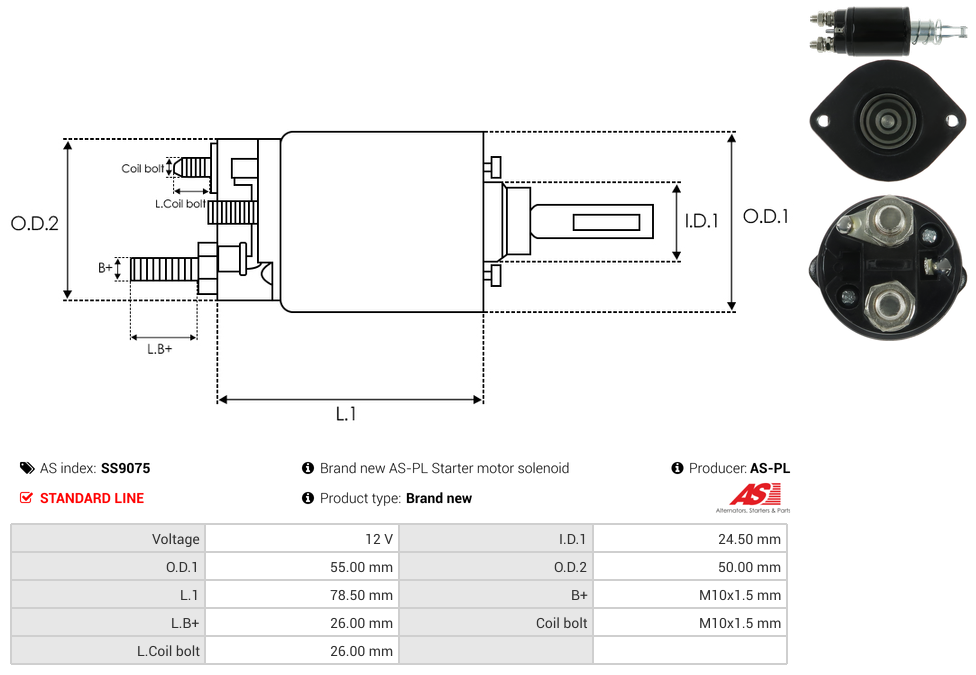

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 26 mm |
| Inside Diameter (I.D.1) | 24.5 mm |
| L.B+ | 26 mm |
| Length (L.1) | 78.5 mm |
| Outside Diameter (O.D.1) | 55 mm |
| Outside Diameter (O.D.2) | 50 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Reference Information
SOLX110 SSG2120 157972 UD11602SS WOOSND1245 932248 1013760 932301 UD15328SS 054.000.300.116 E6561 132120 4.4393E+11 81013760 SND1245Video/Publications
9144764 9144742 9144763 9144722 9144743 443115144702 443115144724 443115144722 9144724 9144702 443115144420 443115144742 443115144620 443115144763Add Your Number
