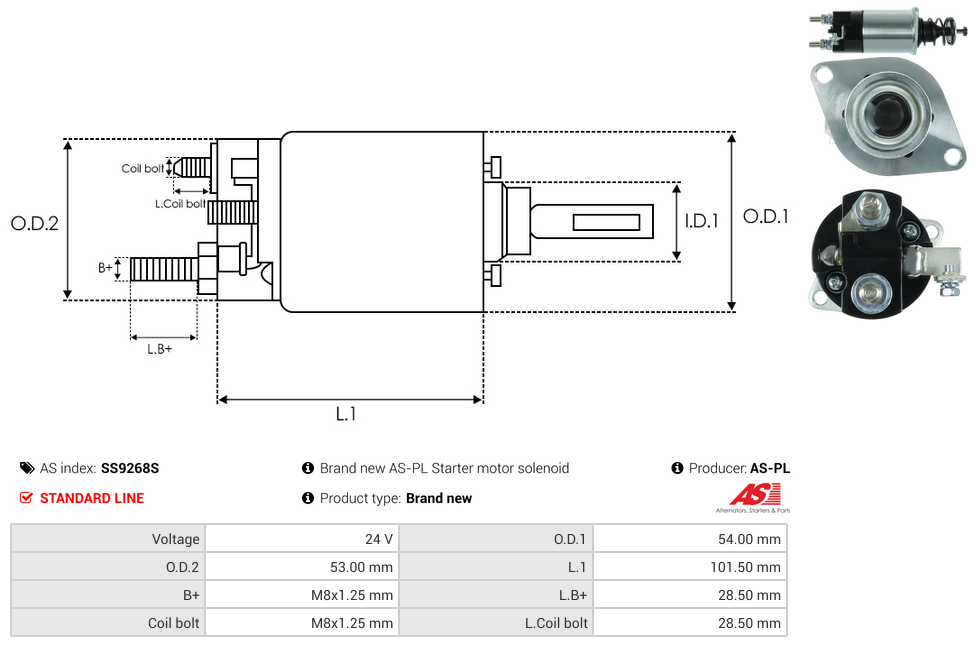

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 28.5 mm |
L.B+ | 28.5 mm |
Length (L.1) | 101.5 mm |
Outside Diameter (O.D.1) | 54 mm |
Outside Diameter (O.D.2) | 53 mm |
Unit Type | SAWAFUJI |
Voltage | 24 V |
