Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 636.55 including GST
NZ$ 553.52 excluding GST
or four payments of $159.14
with
Learn More
UOM:
each
Product Code:
A3691S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FG18T114Associated Numbers
012121
Da Silva
01563756
Customized
10445003
Alanko
11445003
Alanko
114932
Farcom
12090872
EuroTec
14201473
AES
1870357
Ford
2015049
Sando
20150491
Sando
209313
Messmer
21055N
WAI
21055OS
WAI
2193251802
DRI
2380382
Ford
287530
Elstock
439957
Valeo
440713
Valeo
442680
Logistik
445003
Alanko
4554
CEVAM
49430
Valeo
50103483
RE-EX
554706RI
DAS
554706RIV
DAS
57789
EAI
595579180
PSH
89216013
PowerMax
931645
EDR
A134530
Short code
A146744
Short code
A149418
Short code
AA7631
Auto Charge
AAL1915
Apec
AEK3920
Auto Electro
AL03483
TMI
ALT14624
Wood Auto
ALT2412CP
Rolling Components
AVA1346
Quasar
AXE1197
Everkraft
AXE1197E
Everkraft
CAL15049
Casco
CAL15049GS
Casco
CGB87530
Ainde
DA2755
Remy
DRA1645
Remy
DS7T10300KA
Visteon
DS7T10300KB
Ford
DS7T10300KC
Ford
DS7T10300KD
Ford
DS7T10300KE
Ford
FG18T114
Valeo
FG18T114RR
RNL
FG18T114SEL
+line
FG18T197
Valeo
IR5653
Protech
L85840
ATL
L85841
ATL
LRA03920
Lucas
LRA3920
Lucas
NAL1946
Napa (UK)
S3230012
Herth Buss
VAL439957
Wood Auto
WOOALT14624
Wood Auto

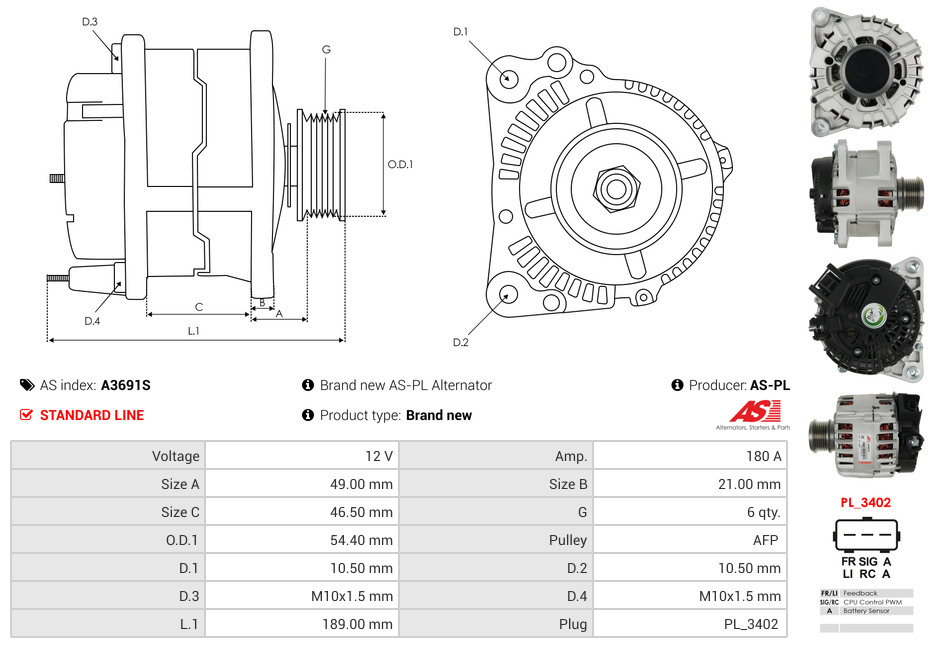

Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 189 mm |
| Mount Inside Length or Pad Mount C-C (C) | 46.50 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54.40 mm |
| Pulley to Mount Distance (A) | 49 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Galaxy 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CL] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CG] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CH] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CD] | 01.2015-06.2018 |
| FORD | Mondeo 2.0 TDCi | [T7CA] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CC] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CD] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CE] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CF] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CN] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CP] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CQ] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CA] | 05.2015- |
| FORD | Mondeo 2.0 TDCi | [T8CA] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CB] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CC] | 05.2015- |
| FORD | Mondeo 2.0 TDCi | [T8CC] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CD] | 05.2015- |
| FORD | Mondeo 2.0 TDCi | [T8CD] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CL] | 05.2015- |
| FORD | Mondeo 2.0 TDCi | [T8CL] | 09.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CP] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [7CQ] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CA] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CA] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CC] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CC] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CD] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CD] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CE] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CE] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CF] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CF] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CN] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CN] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CP] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CP] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CQ] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CQ] | 09.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CA] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CA] | 05.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CB] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CC] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CC] | 05.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CD] | 02.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CD] | 05.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CL] | 02.2015- |
| FORD | Mondeo 2.0 TDCi Bi-Turbo | [T9CA] | 03.2015- |
| FORD | Mondeo 2.0 TDCi Bi-Turbo | [T9CA] | 05.2015- |
| FORD | S-Max 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCD] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7C] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
Reference Information
MEISTERTEILE DS7T-10300-KB DS7T-10300-KC DS7T-10300-KD DS7T-10300-KE 4825011 595.579.180.505 442680 STARTCAR L85841 L85840 F032116595 CAL15049AS 21055N & FARCOM EUROTEC 789ST75 AEK3920 VAL439957 EAI / CASCO REDS7T10300KD WILMINK 595.579.180.004 ERA ALT01009 595.579.180.000 AZMT-49-035-2288 2015049.0 554706RI 2015049.1 QUINTON PARTS 440713 DELCO AVA049 LOGISTIK STX101690R GROUP 116595 CARGO AUTOELECTRO ALT2412CP ALV3687 KUHNER WG2011265 STARDAX 20015049OV A12VA0305AS A134.530 A-14624 439957 AC-CBA6202 8EL015637-561 ACAUTO 47-626 1870357 20179940OE HENKEL CGB-87530 WG2263650 ATL DRI IR5653 LRA03920 ALT170490 AUTOTECHNIK KRAUF FO8139 AINDE 57789 SIOM A146.744 DRA1645 FORD DORIA 11445003 HOFFER PSH ALT14624 FG18T197 114932 ITAB FG18T114 20015049AV CEVAM A149.418 VALEO HELLA TRANSPO ELECTROLOG REAL NK WAI UD90798A DTS 2193251802 ROLLCO PROTECH ALANKO AUTOMOTIVE 10445003 AS-PL 554706RIV SIDAT 2438699 554706RIR QRA3426 ELSTOCK LUCAS 3123350 AL03483 WOODAUTO STX101690 5515134 209313 SNRA POWERMAX LRA3920 MEAT 20179940BN TMI 595.579.180.500 ALT170490A 595.579.180.502 28-7530 4554 AUTOTEAM SANDO H5515134 12090872 2380382 CAL15049GS HAZELL 89216013 A.Z.Video/Publications
