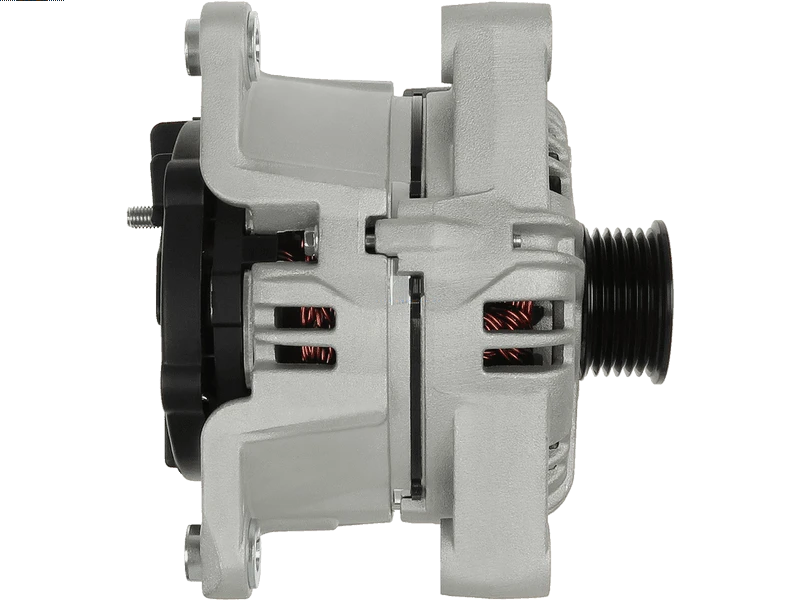

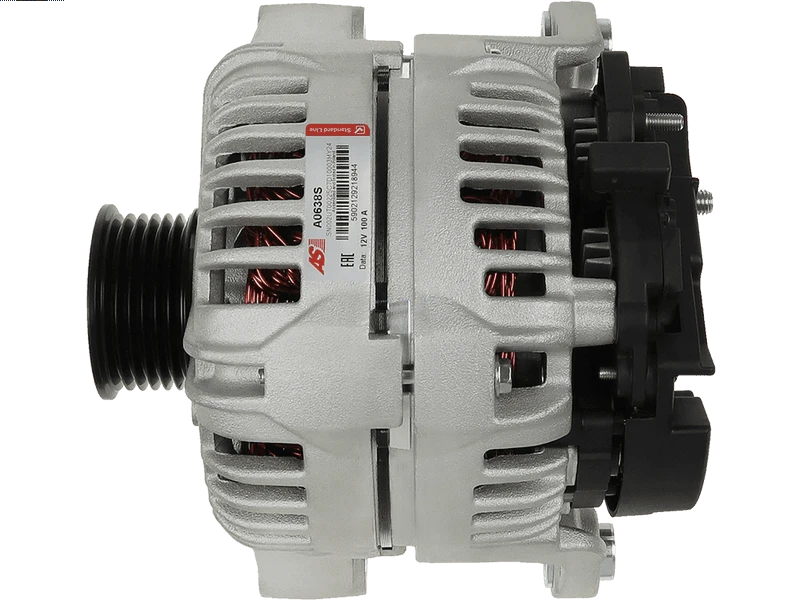

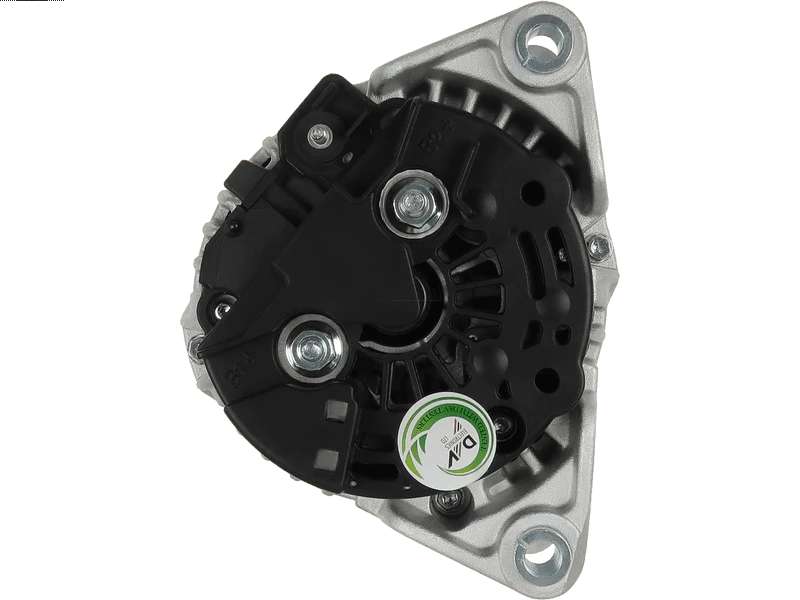

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 402.04 including GST
NZ$ 349.60 excluding GST
or four payments of $100.51
with
Learn More
each
A0638S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0124415005Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Diameter (D.4) | 10.50 mm |
| Length (L.1) | 178 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.30 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra 2.0 Di | [X20DTL] | 01.1999-04.2005 |
| OPEL | Astra 2.0 Di | [X20DTL] | 02.1998-01.2005 |
| OPEL | Astra 2.0 Di | [X20DTL] | 02.1998-07.2004 |
| OPEL | Astra 2.0 Di | [X20DTL] | 09.1998-01.2005 |
| OPEL | Astra 2.0 Di | [Y20DTL] | 01.1999-04.2005 |
| OPEL | Astra 2.0 Di | [Y20DTL] | 02.1998-01.2005 |
| OPEL | Astra 2.0 Di | [Y20DTL] | 02.1998-07.2004 |
| OPEL | Astra 2.0 Di | [Y20DTL] | 09.1998-01.2005 |
| OPEL | Astra 2.0 DTi | [Y20DTH] | 09.2000-04.2005 |
| OPEL | Astra 2.0 DTi 16V | [Y20DTH] | 08.1999-01.2005 |
| OPEL | Astra 2.0 DTi 16V | [Y20DTH] | 08.1999-07.2004 |
| OPEL | Vectra 2.0 DTi 16V | [X20DTH] | 06.1997-07.2003 |
| OPEL | Vectra 2.0 DTi 16V | [Y20DTH] | 06.1997-07.2003 |
| OPEL | Zafira 2.0 Di 16V | [X20DTL] | 07.1999-06.2005 |
| OPEL | Zafira 2.0 Di 16V | [Y20DTL] | 07.1999-06.2005 |
| OPEL | Zafira 2.0 DTi 16V | [Y20DTH] | 09.2000-06.2005 |
Reference Information
| 011-003-000566R | REMANTE |
| 0123500008 | BOSCH |
| 0123505003 | BOSCH |
| 0124225023 | BOSCH |
| 0124415005 | BOSCH |
| 063731501010 | MAGNETI MARELLI |
| 09133601 | OPEL |
| 0986042750 | BOSCH |
| 10443268 | ALANKO |
| 10457917 | OPEL |
| 113879 | CARGO |
| 119918 | FARCOM |
| 12042750 | EUROTEC |
| 135.510.100.011 | PSH |
| 135.510.100.018 | PSH |
| 135.510.100.019 | PSH |
| 135.510.100.030 | PSH |
| 135.510.100.395 | PSH |
| 1516477R | DAF |
| 1516479R | DAF |
| 1638102280 | EUROREPAR |
| 200169 | MANDO |
| 210037 | ERA |
| 210037A | ERA |
| 2137108 | OMNICRAFT |
| 28-3535 | ELSTOCK |
| 301501RI | KUHNER |
| 310865 | RHIAG |
| 3111021 | HENKEL PARTS |
| 3111022 | HENKEL PARTS |
| 3111023 | HENKEL PARTS |
| 437496 | MANDO |
| 441648 | LOGISTIK |
| 443205 | MANDO |
| 4602 | CEVAM |
| 4G0757R | RIDEX |
| 546ST65 | STARTCAR |
| 5510179 | MEAT & DORIA |
| 89213891 | POWERMAX |
| 8EL011710-451 | HELLA |
| 9042750 | FRIESEN |
| 90561168 | OPEL |
| 93175951 | OPEL |
| 93175952 | OPEL |
| 943315011010 | MAGNETI MARELLI |
| 9512788 | OPEL |
| 9512789 | OPEL |
| A12BH0109A2 | SIDAT |
| AC-CBA1501 | ACAUTO |
| AI-90300 | AINDE |
| AL01690 | TMI |
| ALT10214 | WOODAUTO |
| ALT1394 | ELECTROLOG |
| ALTL006 | 3EFFE |
| ALTL668 | 3EFFE |
| BBA2026 | BORG & BECK |
| BBA2095 | BORG & BECK |
| CA1501IR | HC PARTS |
| CGB-83535 | AINDE |
| DB3860 | DELCO |
| DRB2750 | DELCO |
| F032113879 | CARGO |
| IR7907 | PROTECH |
| LRB00408 | LUCAS |
| LRB408 | LUCAS |
| MQA1501 | MAGNETI MARELLI |
| OP8041 | SNRA |
| PRAL006 | 3EFFE |
| PRAL668 | 3EFFE |
| RE73603N | THE NEWLINE |
| STX100105 | STARDAX |
| STX100105R | STARDAX |
| STX100389 | STARDAX |
| STX100389R | STARDAX |
| STX100781 | STARDAX |
| TT11201 PRO | TESLA TECHNICS |
| UD102117A | AS-PL |
| WG2196805 | WILMINK GROUP |
