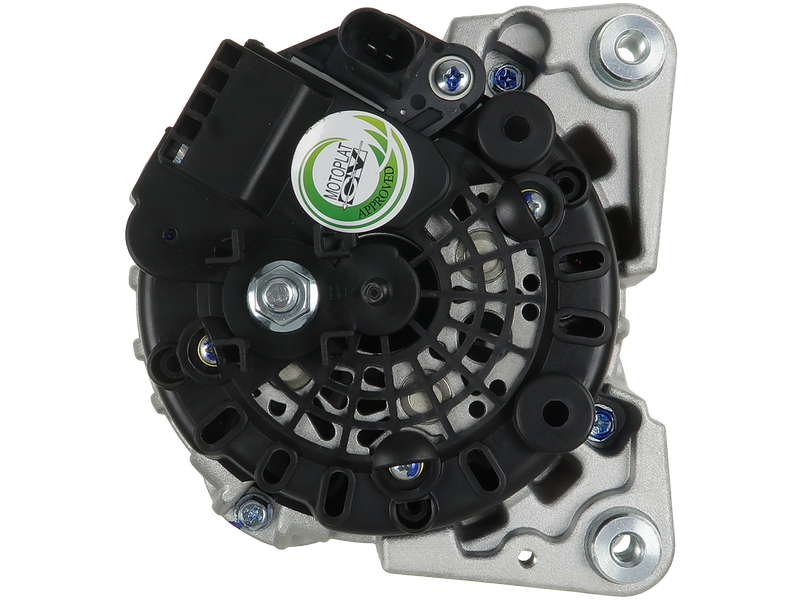

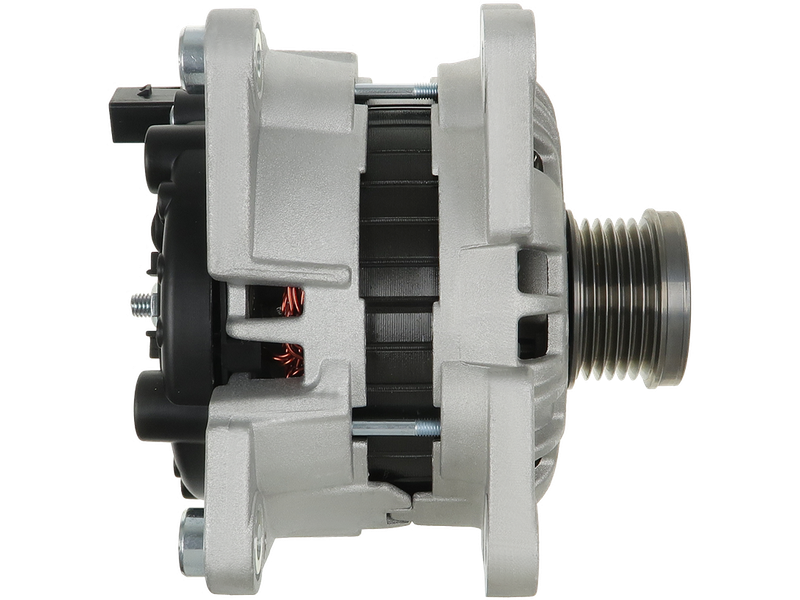

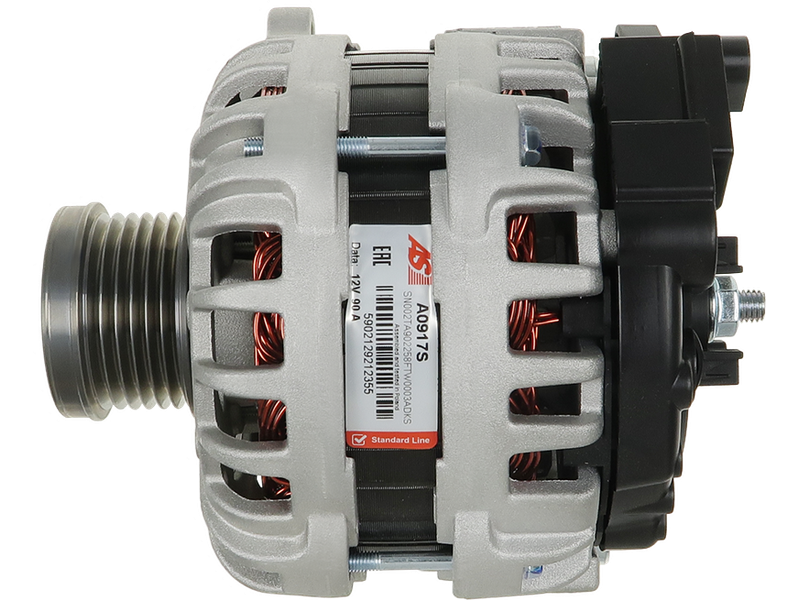

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 519.51 including GST
NZ$ 451.75 excluding GST
or four payments of $129.88
with
Learn More
each
A0917S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

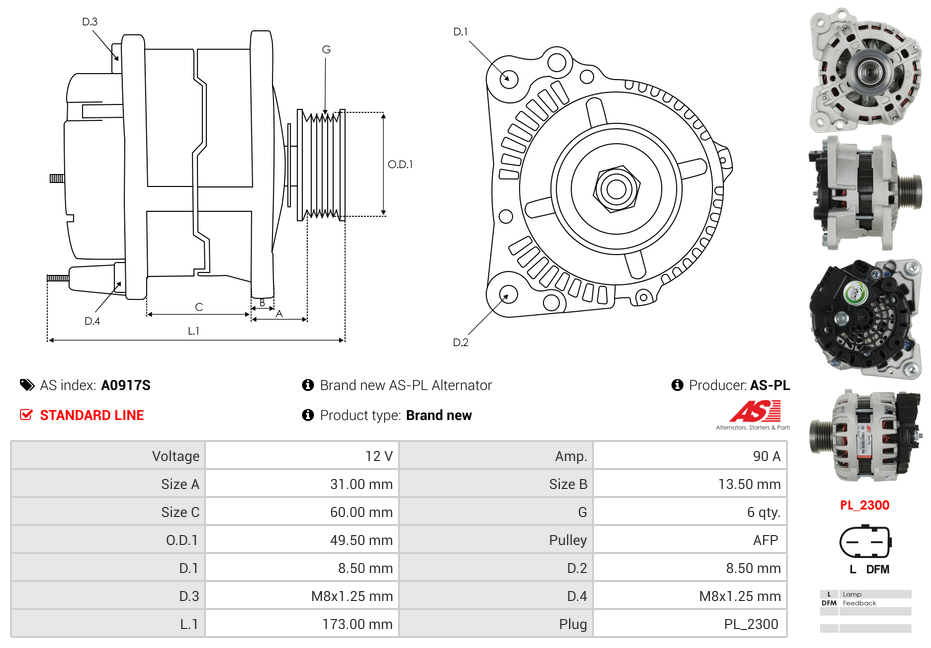

F000BL04K7Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49.50 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Various Model | ||
| VW | Various Model |
Reference Information
| 04C903023N | VW |
| 305.984.090.280 | PSH |
| F000BL04K7 | BOSCH |
| F000BL04K8 | BOSCH |
| UD101968A | AS-PL |
