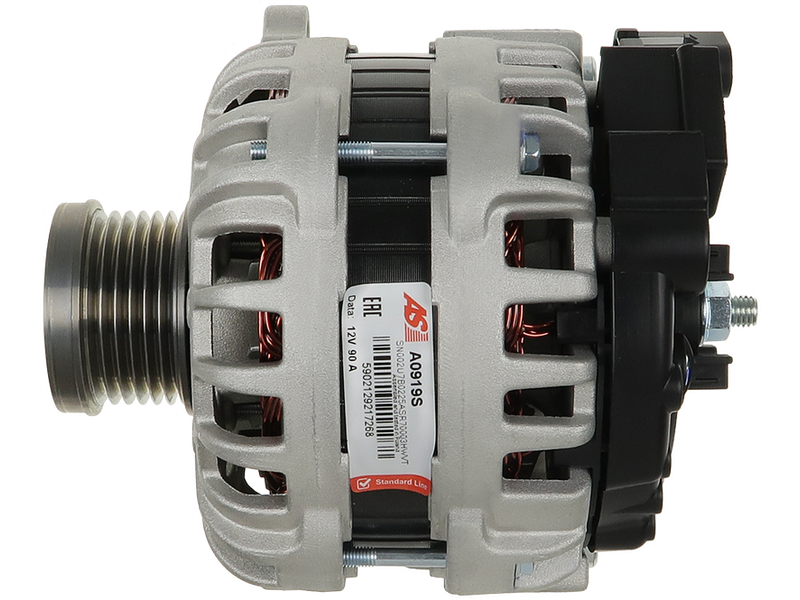

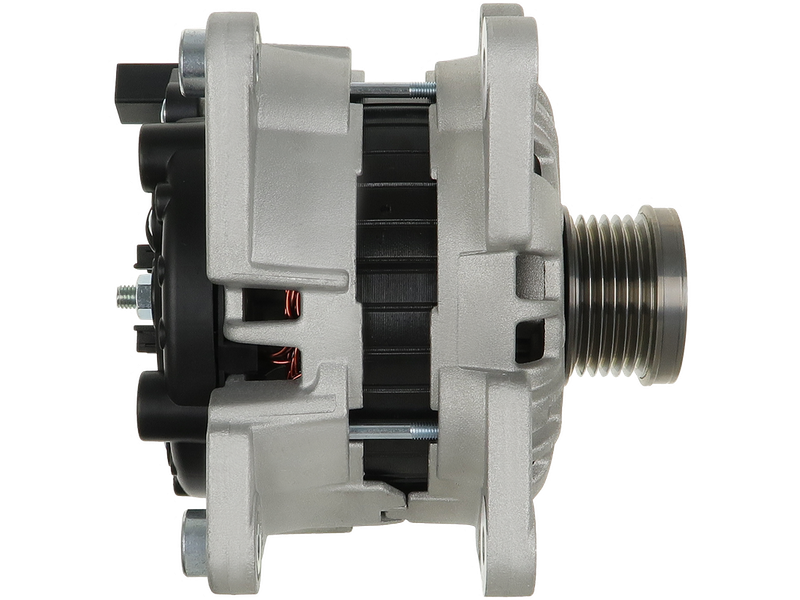

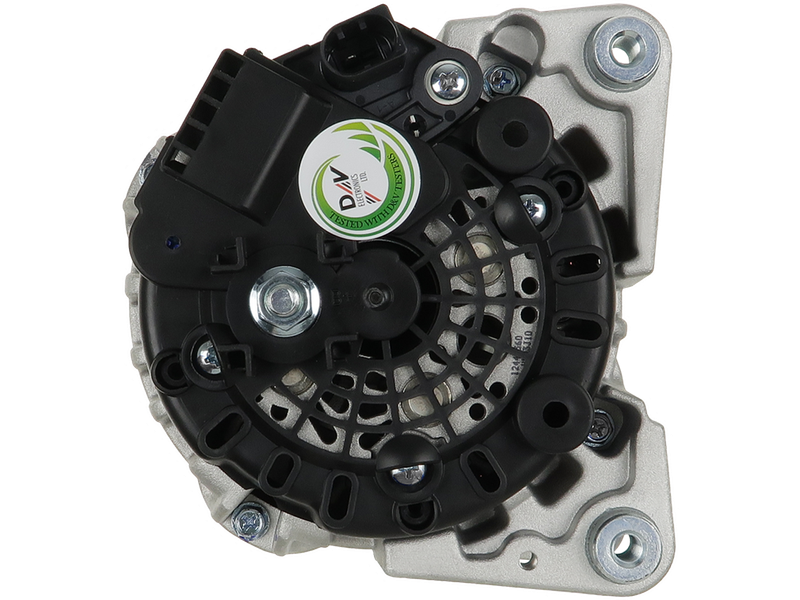

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 480.41 including GST
NZ$ 417.75 excluding GST
or four payments of $120.10
with
Learn More
each
A0919S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

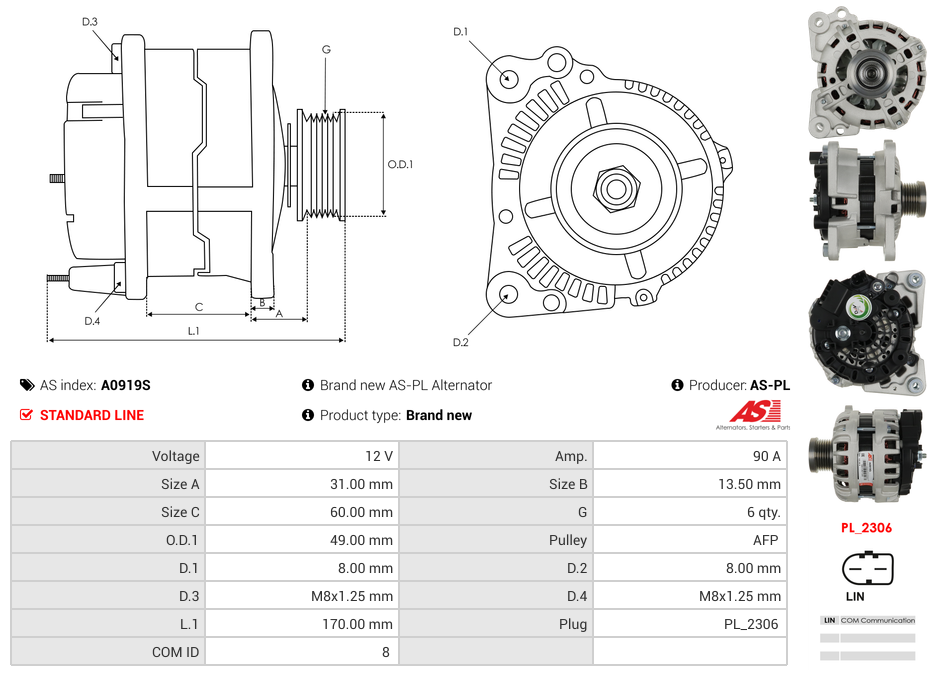

F000BL04R1Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Ibiza 1.0 | [CHYB] | 01.2017- |
| SEAT | Ibiza 1.0 | [CHYC] | 07.2017- |
| SEAT | Ibiza 1.0 | [DFNB] | 07.2017- |
Reference Information
| 04E903025K | VW |
| 04E903025KX | VW |
| 20010093OV | ITAB AUTOMOTIVE |
| 2010093.1 | SANDO |
| 20101390OE | REAL |
| 211519902 | DRI |
| 28-8597 | ELSTOCK |
| 305.303.090.280 | PSH |
| 40763 | CEVAM |
| 556160RIB | KUHNER |
| A153.724 | PSH |
| AL04363 | TMI |
| ALB4177 | KRAUF |
| CAL10093GS | CASCO |
| F000BL04R1 | BOSCH |
| F000BL04R2 | BOSCH |
| LRA04488 | LUCAS |
| LRA4488 | LUCAS |
| UD102085A | AS-PL |
