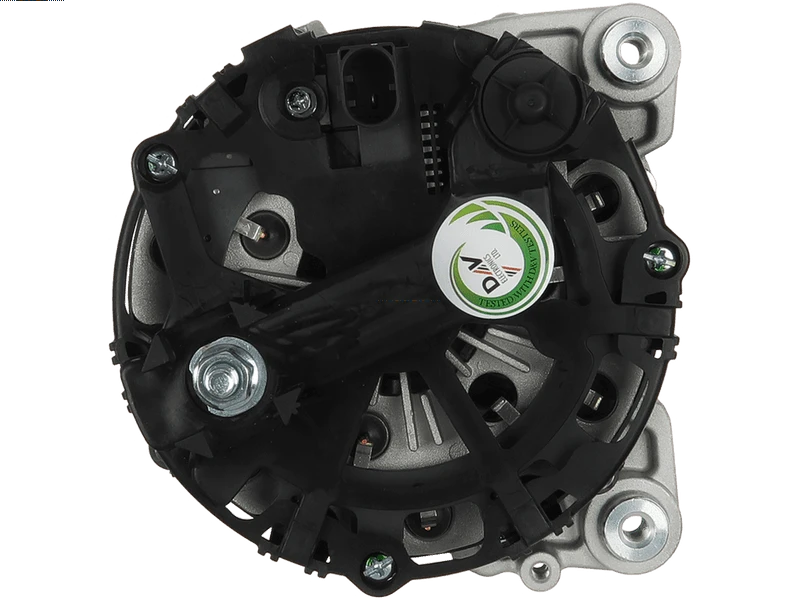

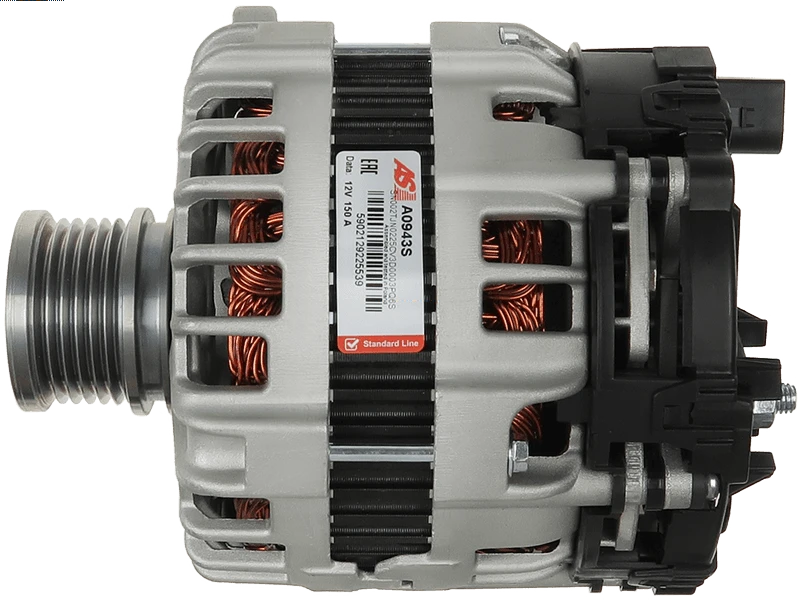

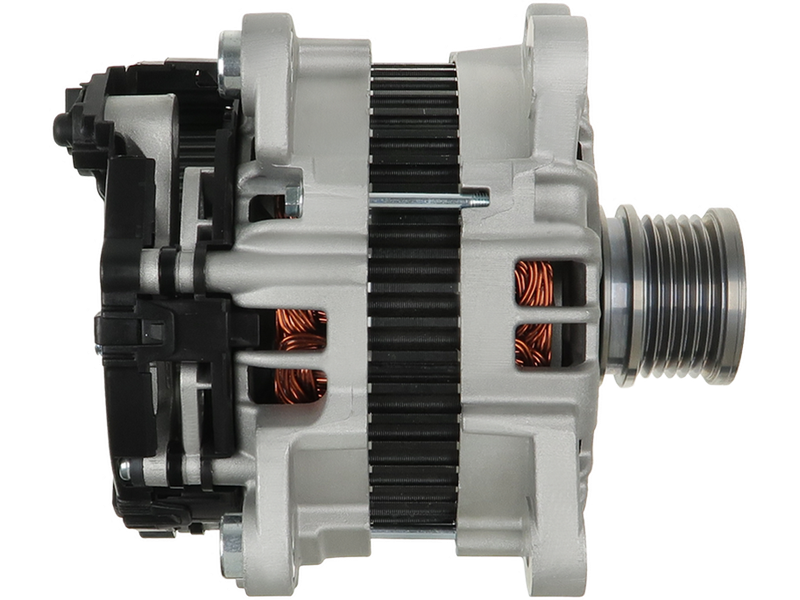

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 762.30 including GST
NZ$ 662.87 excluding GST
or four payments of $190.58
with
Learn More
each
A0943S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

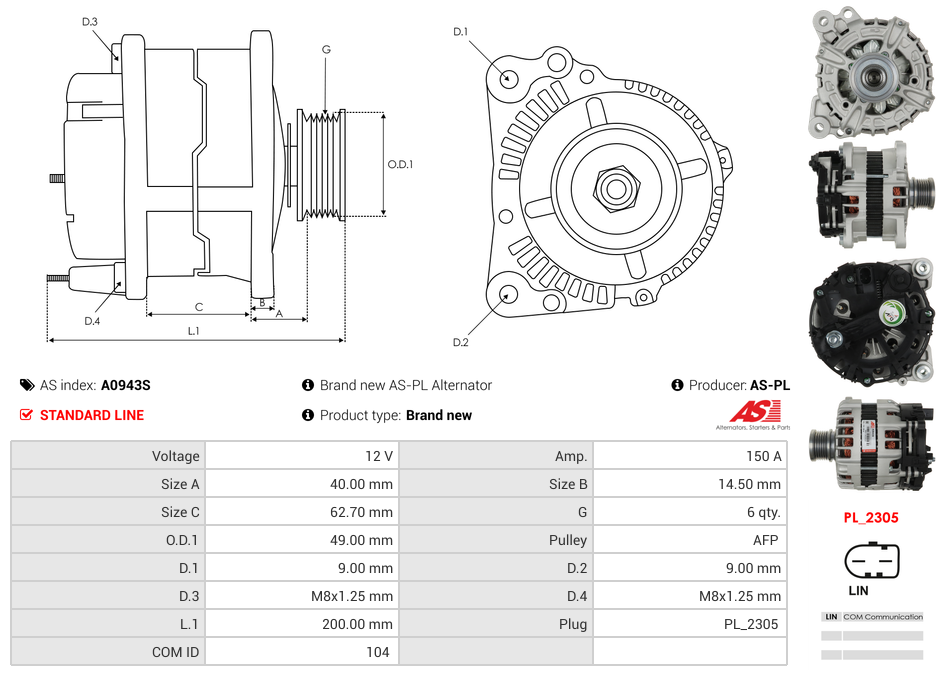

0125716014Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62.70 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Atlas 3.6 FSi 4motion | [CDVD] | 01.2019- |
Reference Information
| 0125716013 | BOSCH |
| 0125716014 | BOSCH |
| 03H903023M | VW |
| 03H903023MX | VW |
| 20010A60OV | ITAB AUTOMOTIVE |
| 2010106AOE | REAL |
| 2010A60.1 | SANDO |
| 305.302.150.010 | PSH |
| 556344RIB | KUHNER |
| 90-15-6722 | WILSON |
| ALB4183 | KRAUF |
| CAL10A60GS | CASCO |
| UD21577A | AS-PL |
Video/Publications
