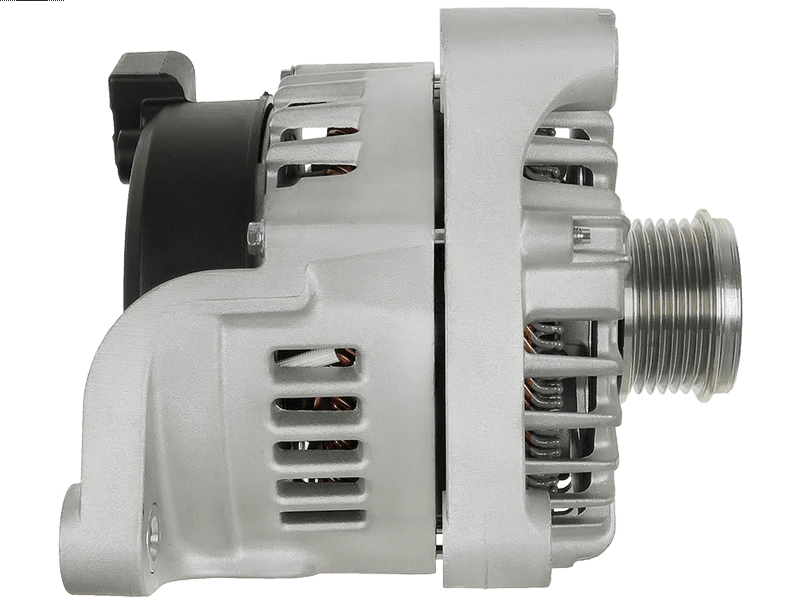

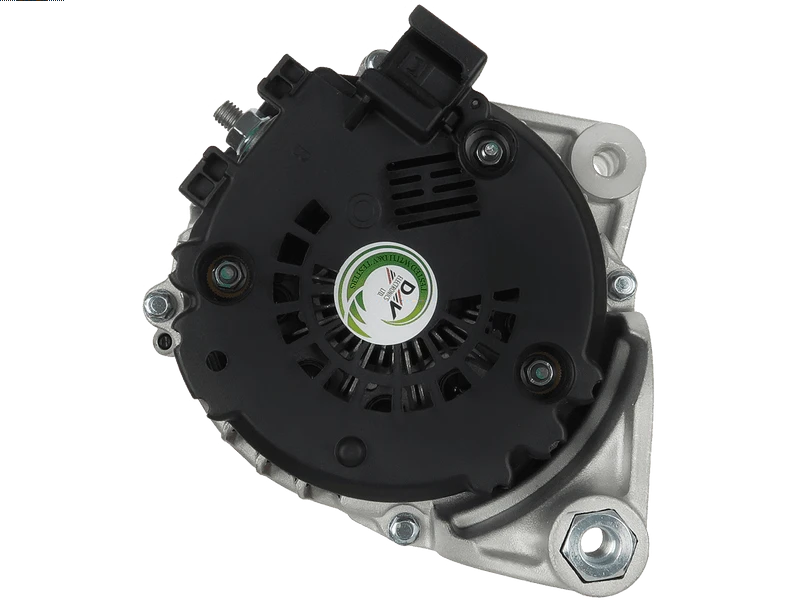

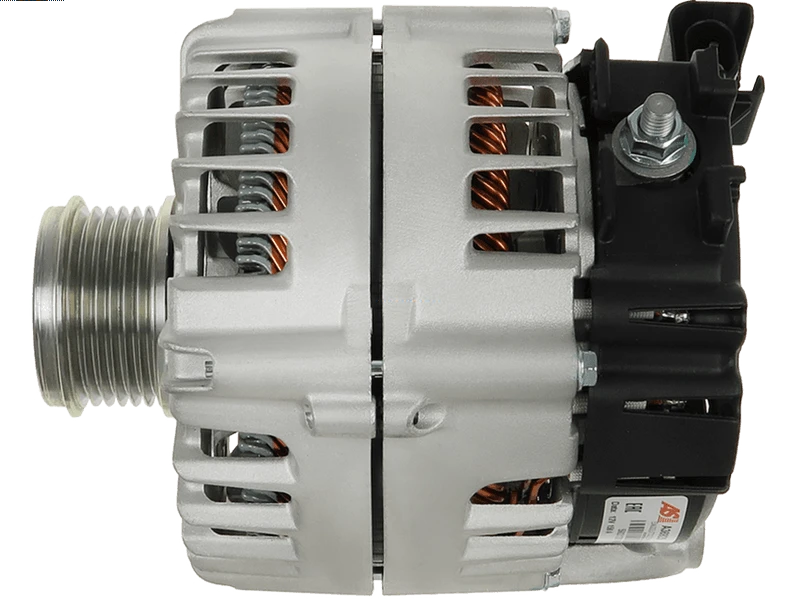

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 758.52 including GST
NZ$ 659.58 excluding GST
or four payments of $189.63
with
Learn More
each
A3692S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
FG18D057Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 76 mm |
| OEM Product | No |
| Plug Code | PL_2303 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53 mm |
| Pulley to Mount Distance (A) | 57 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 316 2.0 D | (E90)[N47D20C] | 07.2009-12.2011 |
| BMW | 316 2.0 D | (E91)[N47D20C] | 09.2009-06.2012 |
| BMW | 318 2.0 D | (E90)[N47D20A] | 02.2007-10.2011 |
| BMW | 318 2.0 D | (E90)[N47D20C] | 02.2007-10.2011 |
| BMW | 318 2.0 D | (E91)[N47D20A] | 09.2007-06.2012 |
| BMW | 318 2.0 D | (E91)[N47D20C] | 09.2007-06.2012 |
| BMW | 320 2.0 D | (E90)[M47D20(204D4)] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E90)[N47D20A] | 09.2007-02.2010 |
| BMW | 320 2.0 D | (E90)[N47D20A] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E90)[N47D20C] | 03.2010-10.2011 |
| BMW | 320 2.0 D | (E90)[N47D20C] | 09.2007-02.2010 |
| BMW | 320 2.0 D | (E90)[N47D20C] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E91)[N47D20C] | 03.2010-05.2012 |
| BMW | 320 2.0 D | (E92)[N47D20A] | 03.2007-06.2013 |
| BMW | 320 2.0 D | (E92)[N47D20C] | 03.2007-06.2013 |
| BMW | 320 2.0 D | (E92)[N47D20C] | 03.2010-06.2013 |
| BMW | 320 2.0 D | (E93)[N47D20C] | 01.2008-12.2013 |
| BMW | 320 2.0 D | (E93)[N47D20C] | 03.2010-10.2013 |
| BMW | 320 2.0 D xDrive | (E90)[N47D20A] | 09.2008-02.2010 |
| BMW | 320 2.0 D xDrive | (E90)[N47D20C] | 03.2010-10.2011 |
| BMW | 320 2.0 D xDrive | (E90)[N47D20C] | 09.2008-02.2010 |
| BMW | 320 2.0 D xDrive | (E91)[N47D20C] | 03.2010-06.2012 |
| BMW | 320 2.0 D xDrive | (E91)[N47D20C] | 09.2008-02.2010 |
| BMW | 320 2.0 D xDrive | (E92)[N47D20C] | 03.2010-06.2013 |
| BMW | 320 2.0 D xDrive | (E92)[N47D20C] | 09.2008-06.2013 |
| BMW | X1 2.0 sDrive 16 D | (E84)[N47D20C] | 04.2012-06.2015 |
| BMW | X1 2.0 sDrive 18 D | (E84)[N47D20C] | 12.2009-06.2015 |
| BMW | X1 2.0 sDrive 20 D | (E84)[N47D20C] | 07.2012-06.2015 |
| BMW | X1 2.0 xDrive 18 D | (E84)[N47D20C] | 10.2009-06.2015 |
| BMW | X1 2.0 xDrive 20 D | (E84)[N47D20C] | 07.2012-06.2015 |
| BMW | X1 2.0 xDrive 25 D | (E84)[N47D20D] | 10.2009-06.2015 |
| BMW | X3 2.0 sDrive 18 D | (F25)[N47D20C] | 10.2012-03.2014 |
| BMW | X3 2.0 xDrive 20 D | (F25)[B47D20A] | 09.2010-08.2017 |
| BMW | X3 2.0 xDrive 20 D | (F25)[N47D20C] | 09.2010-03.2014 |
| BMW | X3 2.0 xDrive 20 D | (F25)[N47D20C] | 09.2010-08.2017 |
Reference Information
| 116209 | CARGO |
| 12318507623 | BMW |
| 12318509022 | BMW |
| 12318509023 | BMW |
| 20015536OV | ITAB AUTOMOTIVE |
| 2015536.1 | SANDO |
| 20179635OE | REAL |
| 209168 | ERA |
| 2151921502 | DRI |
| 24143N | WAI / TRANSPO |
| 28-6718 | ELSTOCK |
| 439708 | VALEO |
| 440299 | VALEO |
| 4788 | CEVAM |
| 55151173 | MEAT & DORIA |
| 57576 | EAI |
| 576ST75 | STARTCAR |
| 8507623 | BMW |
| 8509022 | BMW |
| 89214407 | POWERMAX |
| AL03206 | TMI |
| ALT00394 | ELECTROLOG |
| ALT14379 | WOODAUTO |
| ALT2365CP | ROLLCO |
| ALTE644 | 3EFFE |
| ALV0472 | KRAUF |
| AVA536 | AUTOTEAM |
| BM8098 | SNRA |
| CAL15536GS | CASCO |
| CGB-86718 | AINDE |
| DRA1374 | DELCO |
| F032116209 | CARGO |
| FG18D057 | VALEO |
| FGN18D057 | VALEO |
| H55151173 | HOFFER |
| IR7432 | PROTECH |
| LRA03608 | LUCAS |
| LRA3608 | LUCAS |
| PRAE644 | 3EFFE |
| STX102154 | STARDAX |
| UD102120A | AS-PL |
| VAL439708 | WOODAUTO |
| WG2011119 | WILMINK GROUP |
Video/Publications
