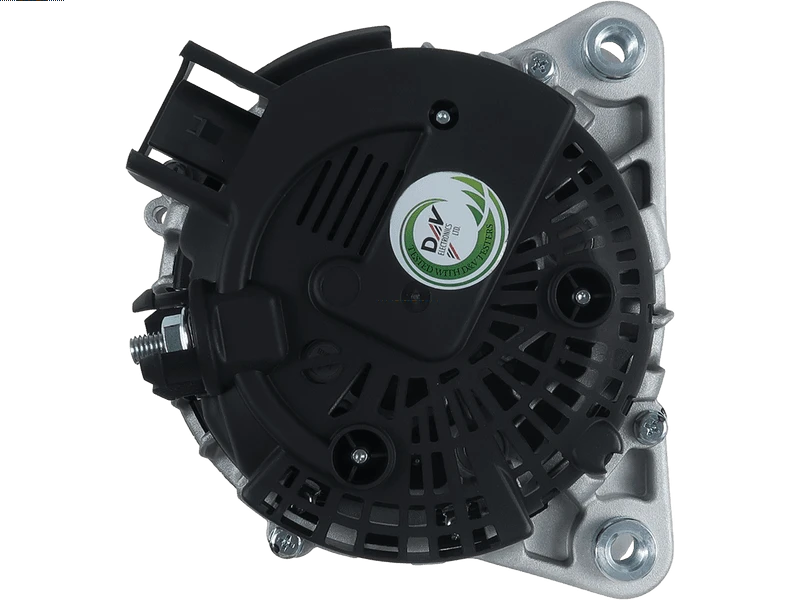

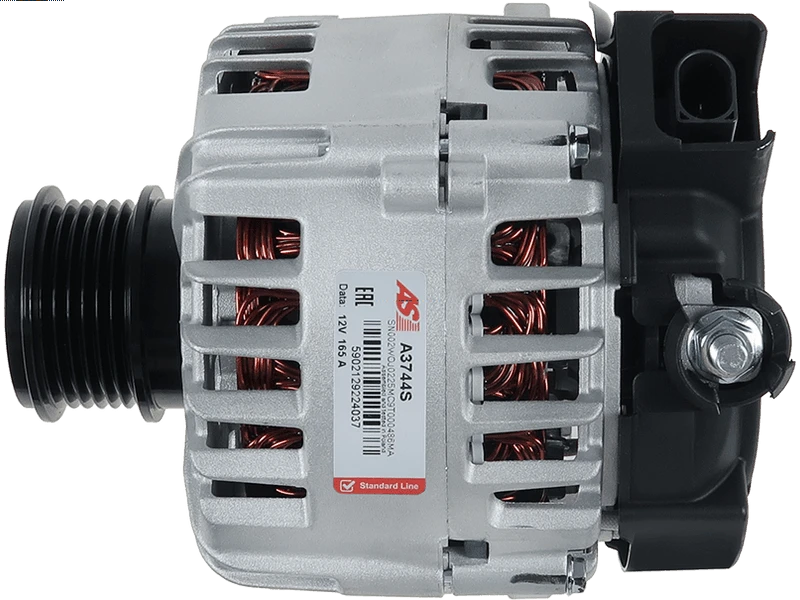

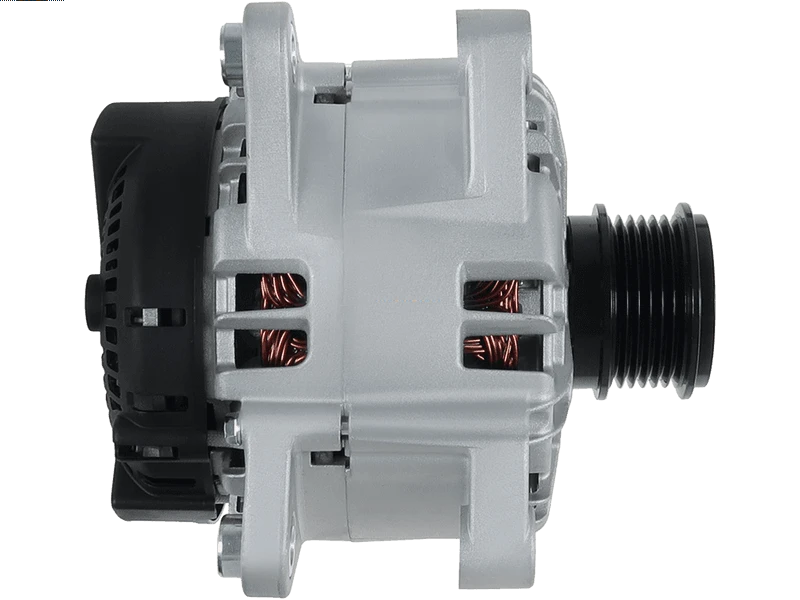

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 647.76 including GST
NZ$ 563.27 excluding GST
or four payments of $161.94
with
Learn More
each
A3744S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information
TG15C236Specifications
| Amp | 165 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 49 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | EcoSport 1.5 TDCi EcoBlue | [ZTJA] | 11.2017- |
| FORD | EcoSport 1.5 TDCi EcoBlue | [ZTJB] | 11.2017- |
| FORD | EcoSport 1.5 TDCi EcoBlue | [ZTJC] | 11.2017- |
| FORD | EcoSport 1.5 TDCi EcoBlue 4x4 | [ZTJA] | 11.2017- |
| FORD | EcoSport 1.5 TDCi EcoBlue 4x4 | [ZTJB] | 11.2017- |
| FORD | EcoSport 1.5 TDCi EcoBlue 4x4 | [ZTJC] | 11.2017- |
| FORD | Focus 1.5 EcoBlue | [Z2DA] | 01.2018- |
| FORD | Focus 1.5 EcoBlue | [Z2DA] | 09.2018- |
| FORD | Focus 1.5 EcoBlue | [ZTDA] | 01.2018- |
| FORD | Focus 1.5 EcoBlue | [ZTDA] | 09.2018- |
| FORD | Focus 1.5 EcoBlue | [ZTDB] | 01.2018- |
| FORD | Focus 1.5 EcoBlue | [ZTDB] | 09.2018- |
| FORD | Focus 1.5 TDCi | [XWDA] | 11.2014-02.2020 |
| FORD | Focus 1.5 TDCi | [XWDB] | 11.2014-02.2020 |
| FORD | Focus 1.5 TDCi | [XWDC] | 11.2014-02.2020 |
| FORD | Focus 1.5 TDCi | [XWDD] | 11.2014-02.2020 |
| FORD | Focus 1.5 TDCi | [XWDE] | 11.2014-02.2020 |
| FORD | Grand Tourneo Connect V408 1.5 EcoBlue | [BEGA] | 05.2018-12.2022 |
| FORD | Grand Tourneo Connect V408 1.5 EcoBlue | [Z2GA] | 05.2018-12.2022 |
| FORD | Grand Tourneo Connect V408 1.5 EcoBlue | [ZTGA] | 05.2018-12.2022 |
| FORD | Kuga 1.5 EcoBlue | [ZTDA] | 07.2019- |
| FORD | Kuga 2.0 EcoBlue 4x4 | [YMDA] | 07.2019- |
| FORD | Kuga 2.0 EcoBlue mHEV | [YLDC] | 07.2019- |
| FORD | Tourneo Connect V408 1.5 EcoBlue | [BEGA] | 05.2018-12.2022 |
| FORD | Tourneo Connect V408 1.5 EcoBlue | [Z2GA] | 05.2018-12.2022 |
| FORD | Tourneo Connect V408 1.5 EcoBlue | [ZTGA] | 05.2018-12.2022 |
| FORD | Transit Connect 1.5 EcoBlue | [Z2GA] | 05.2018- |
| FORD | Transit Connect 1.5 EcoBlue | [ZTGA] | 05.2015- |
| FORD | Transit Connect 1.5 TDCi | [XUGA] | 08.2015- |
| FORD | Transit Connect V408 1.5 EcoBlue | [BEGA] | 05.2018- |
| FORD | Transit Connect V408 1.5 EcoBlue | [Z2GA] | 05.2018- |
| FORD | Transit Connect V408 1.5 EcoBlue | [ZTGA] | 05.2018- |
| FORD | Transit Connect V408 1.5 TDCi | [XUGA] | 08.2015- |
| FORD | Transit Connect V408 1.5 TDCi | [XVGA] | 05.2015- |
| FORD | Transit Connect V408 1.5 TDCi | [XVGB] | 05.2015- |
| FORD | Transit Connect V408 1.5 TDCi | [XVGC] | 05.2015- |
| FORD | Transit Connect V408 1.5 TDCi | [XXGA] | 05.2015- |
Reference Information
| 115102 | FARCOM |
| 20015A67OV | ITAB AUTOMOTIVE |
| 2015A67.1 | SANDO |
| 2017976AOE | REAL |
| 209718A | ERA |
| 21642N | WAI / TRANSPO |
| 21642-OS | WAI / TRANSPO |
| 2179006 | FORD |
| 2193471652 | DRI |
| 2200625 | FORD |
| 2449470 | FORD |
| 28-8534 | ELSTOCK |
| 40719 | CEVAM |
| 442762 | LOGISTIK |
| 443321 | VALEO |
| 556283RI | KUHNER |
| 556283RIV | KUHNER |
| 595.942.165.000 | PSH |
| 595.942.165.500 | PSH |
| AL04298 | TMI |
| ALT17A670 | SIOM |
| ALT2489CP | ROLLCO |
| ANM100198 | ANDEL |
| CAL15A67GS | CASCO |
| IR5256 | PROTECH |
| JX6T-10300-KA | FORD |
| JX6T-10300-KA02 | FORD |
| JX6T-10300-KB | FORD |
| JX6T-10300-KC | FORD |
| LRA04425 | LUCAS |
| LRA4425 | LUCAS |
| TG15C236 | VALEO |
| TG15C286 | VALEO |
| UD102610A | AS-PL |
| UD30186A | AS-PL |
| VAL443321 | WOODAUTO |
