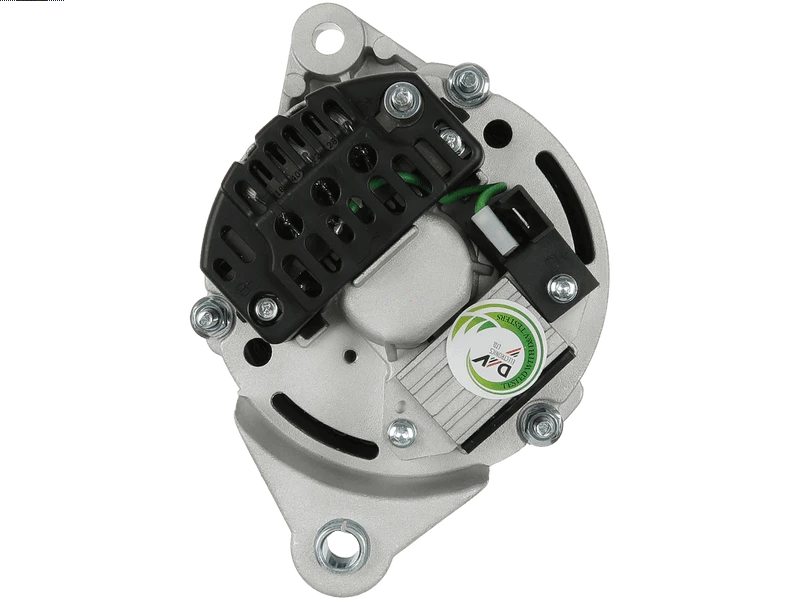

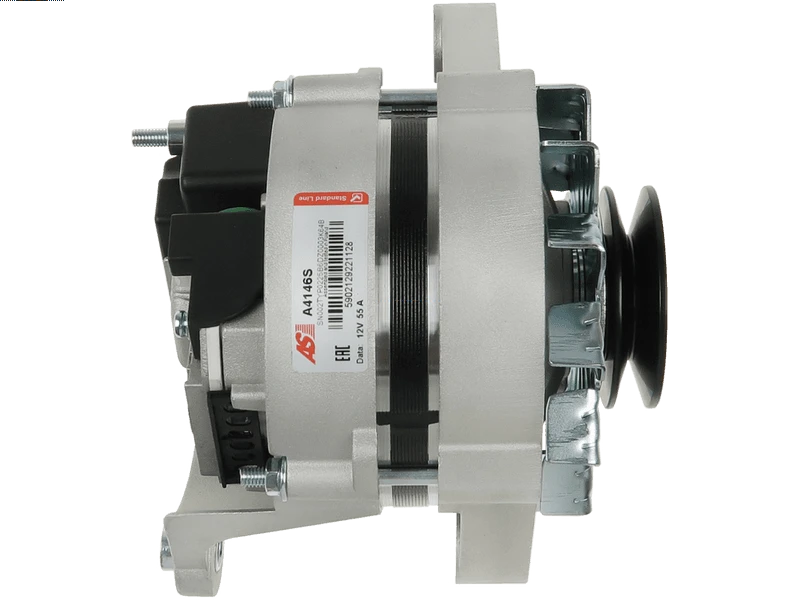

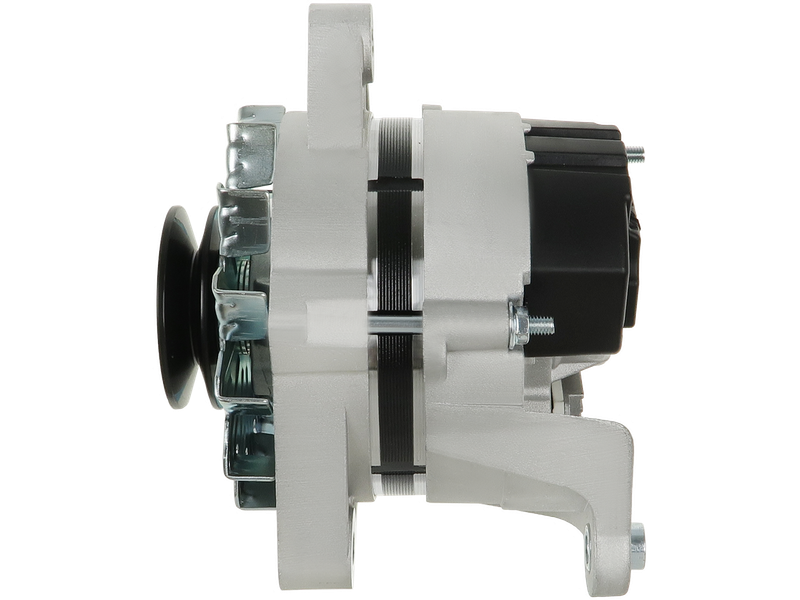

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 317.10 including GST
NZ$ 275.74 excluding GST
or four payments of $79.28
with
Learn More
each
A4146S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
63307406Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 22.70 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 39 mm |
| Pulley Outside Diameter (O.D.2) | 68 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 127 1.3 D | [127A5.000] | 06.1981-12.1986 |
| FIAT | 127 1.3 Di | [127A5.000] | 04.1981-12.1986 |
| FIAT | Fiorino 1.3 D | [127A5.000] | 03.1982-01.1988 |
| FIAT | Fiorino 1.3 D | [127A5.000] | 05.1984-12.1988 |
| FIAT | Panda 1.3 D | [156A5.000] | 04.1986-12.1992 |
| FIAT | Uno 1.3 | [127A5.000] | 06.1983-03.1992 |
| FIAT | Uno 1.3 | [146B1.000] | 06.1983-03.1992 |
| FIAT | Uno 1.4 70 TD | [146B.000] | 10.1986-10.1990 |
| FIAT | Uno 1.4 70 TD | [146B3.000] | 10.1986-10.1990 |
Reference Information
| 011-003-000189R | REMANTE |
| 0986036651 | BOSCH |
| 10441649 | ALANKO |
| 110991 | CARGO |
| 20030245RV | ITAB AUTOMOTIVE |
| 20104542RC | REAL |
| 2030245.2 | SANDO |
| 218109552 | DRI |
| 28-0804 | ELSTOCK |
| 4267 | CEVAM |
| 436117 | MANDO |
| 440498 | LOGISTIK |
| 46231750 | FIAT |
| 46231761 | FIAT |
| 479063 | FIAT |
| 505.022.055.050 | PSH |
| 505.022.055.313 | PSH |
| 63305103 | MAGNETI MARELLI |
| 63307406 | MAGNETI MARELLI |
| 63307426 | MAGNETI MARELLI |
| 63307503 | MAGNETI MARELLI |
| 63307523 | MAGNETI MARELLI |
| 63320010 | MAGNETI MARELLI |
| 63320030 | MAGNETI MARELLI |
| 63321013 | MAGNETI MARELLI |
| 63321060 | MAGNETI MARELLI |
| 7547660 | FIAT |
| 7564965 | FIAT |
| 77235410 | FIAT |
| 77253410 | FIAT |
| 943321013 | MAGNETI MARELLI |
| 943321013010 | MAGNETI MARELLI |
| 944390366510 | MAGNETI MARELLI |
| AL00540 | TMI |
| ALT12034 | WOODAUTO |
| CAL30245RS | CASCO |
| F032110991 | CARGO |
| L36650 | ATL AUTOTECHNIK |
| LRA00598 | LUCAS |
| LRA598 | LUCAS |
| MAN350 | MAGNETI MARELLI |
| MAR350 | MAGNETI MARELLI |
| MRA36651 | MAGNETI MARELLI |
| STX101026 | STARDAX |
| UD102074A | AS-PL |
| WOOALT12034 | WOODAUTO |
