Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 860.34 including GST
NZ$ 748.12 excluding GST
or four payments of $215.09
with
Learn More
each
A5536S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

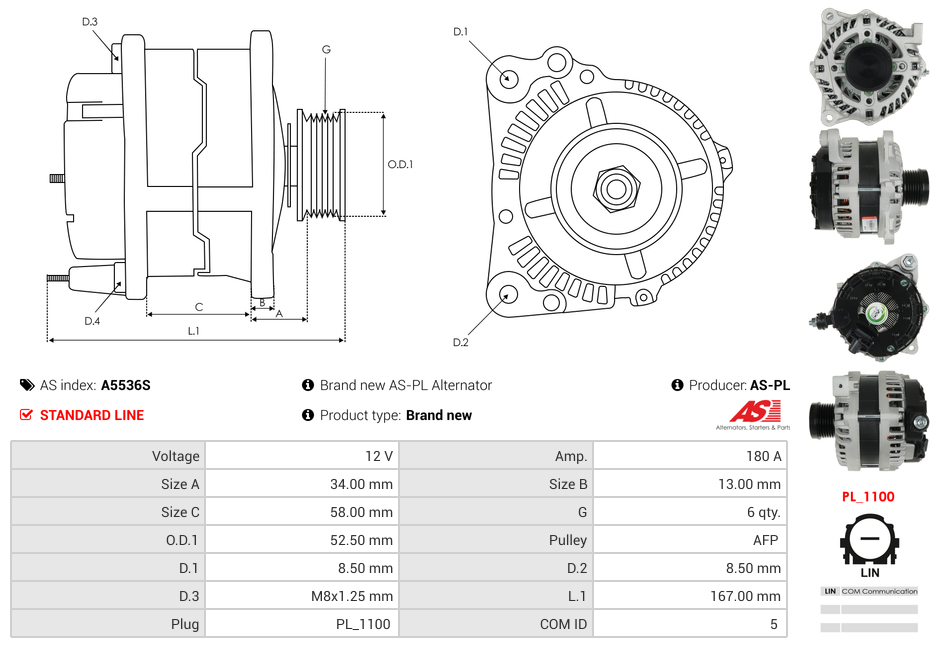

A2TV0281ZCSpecifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58 mm |
| OEM Product | No |
| Plug Code | PL_1100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Ascent 2.4 | 01.2019-12.2022 | |
| SUBARU | Legacy 2.4 | 01.2020-12.2022 | |
| SUBARU | Outback 2.4 | 01.2020-12.2021 |
Reference Information
| 23700-AB04A | SUBARU |
| 23700-AB16A | SUBARU |
| 90-27-3530 | WILSON |
| A002TV0281 | MITSUBISHI |
| A002TV0281ZC | MITSUBISHI |
| A002TV1881 | MITSUBISHI |
| A002TV1881ZC | MITSUBISHI |
| A2TV0281 | MITSUBISHI |
| A2TV0281ZC | MITSUBISHI |
| A2TV1881 | MITSUBISHI |
| A2TV1881ZC | MITSUBISHI |
| ALM4173 | KRAUF |
| UD101959A | AS-PL |
Video/Publications
