Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 533.12 including GST
NZ$ 463.58 excluding GST
or four payments of $133.28
with
Learn More
each
A5538S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

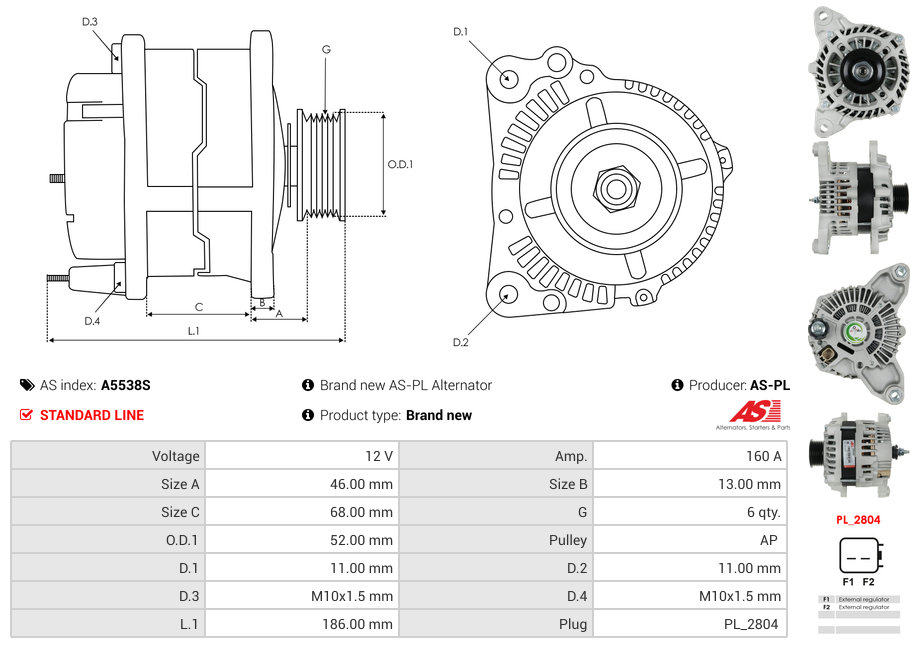

A002TX5691ACSpecifications
| Amp | 160 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 68 mm |
| OEM Product | No |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RAM | 1500 5.7 | [EZH] | 12.2018- |
| RAM | 1500 5.7 4x4 | [EZH] | 12.2018- |
Reference Information
| 41000N | WAI / TRANSPO |
| 56029764AA | CHRYSLER |
| 56029764AB | CHRYSLER |
| 835.401.160.130 | PSH |
| A002TX5691 | MITSUBISHI |
| A002TX5691AC | MITSUBISHI |
| A002TX5691ZC | MITSUBISHI |
| A2TX5691 | MITSUBISHI |
| A2TX5691AC | MITSUBISHI |
| A2TX5691ZC | MITSUBISHI |
| A5538S | AS-PL |
| UD101945A | AS-PL |
