or four payments of $133.24
with
Learn More
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

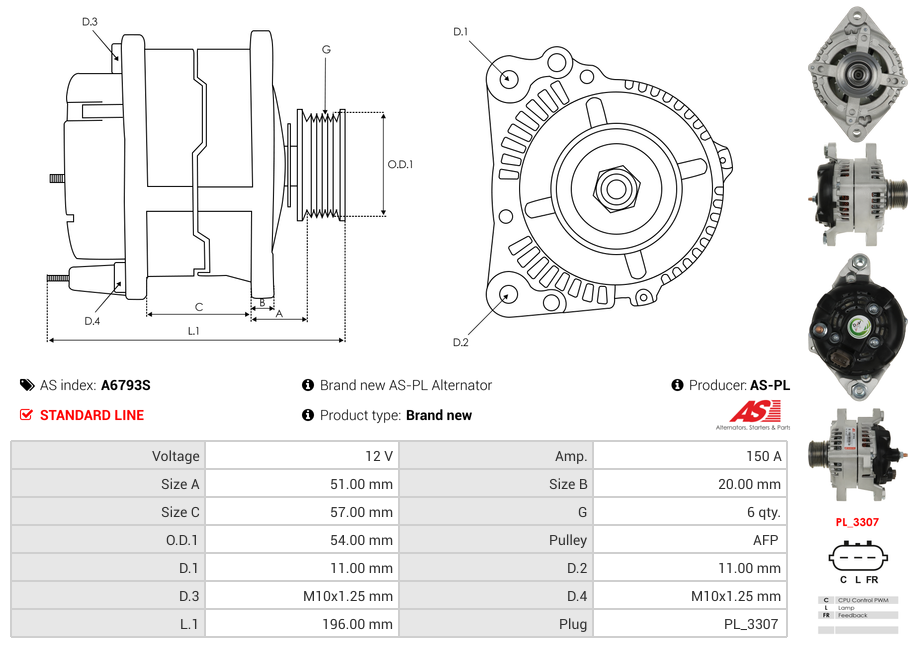

104211-9700Specifications
Amp | 150 A |
Bottom Mounting Foot Width (B) | 20 mm |
Diameter (D.1) | 11 mm |
Diameter (D.2) | 11 mm |
Diameter (D.3) | M10x1.25 mm |
Diameter (D.4) | M10x1.25 mm |
Length (L.1) | 196 mm |
Mount Inside Length or Pad Mount C-C (C) | 57 mm |
OEM Product | No |
Plug Code | PL_3307 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley Grooves | 6 qty |
Pulley Outside Diameter (O.D.1) | 54 mm |
Pulley to Mount Distance (A) | 51 mm |
Pulley Type | Clutch |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
HYUNDAI | i30 2.0 N | [G4KH] | 07.2017- |
HYUNDAI | i30 Fastback 2.0 N | [G4KH] | 07.2017- |
Reference Information
104211-9700 | DENSO |
2013206ABN | REAL |
2040A60.0 | SANDO |
2263451502 | DRI |
28-8654 | ELSTOCK |
37300-2GPD0 | HYUNDAI / KIA |
40855 | CEVAM |
AEG1580 | AUTOELECTRO |
AL04428 | TMI |
ALN4252 | KRAUF |
ALT42A600A | SIOM |
CAL40A60AS | CASCO |
LRA04545 | LUCAS |
LRA4545 | LUCAS |
UD102084A | AS-PL |
Video/Publications
A6793SRelated Items
