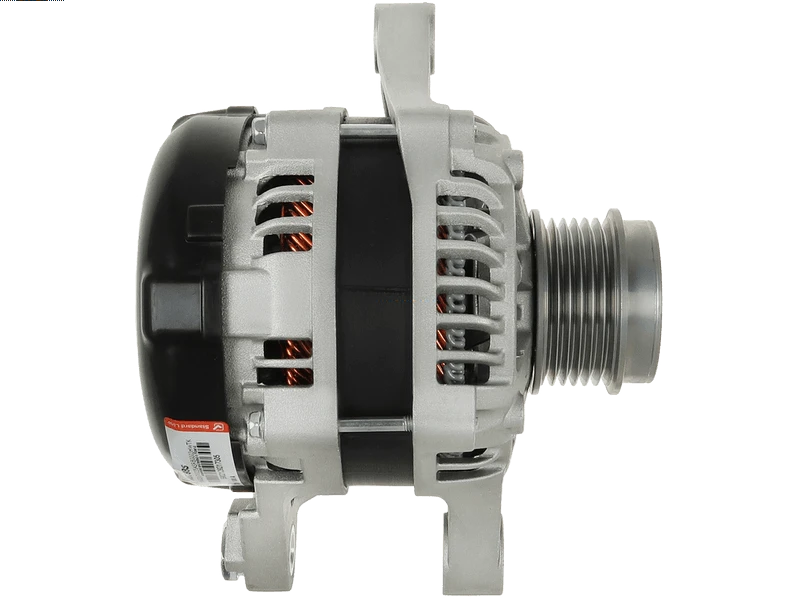

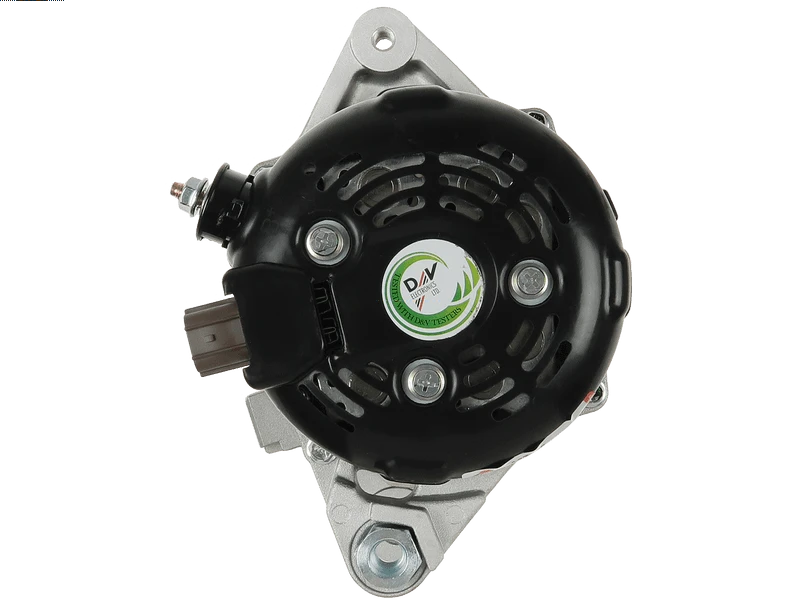

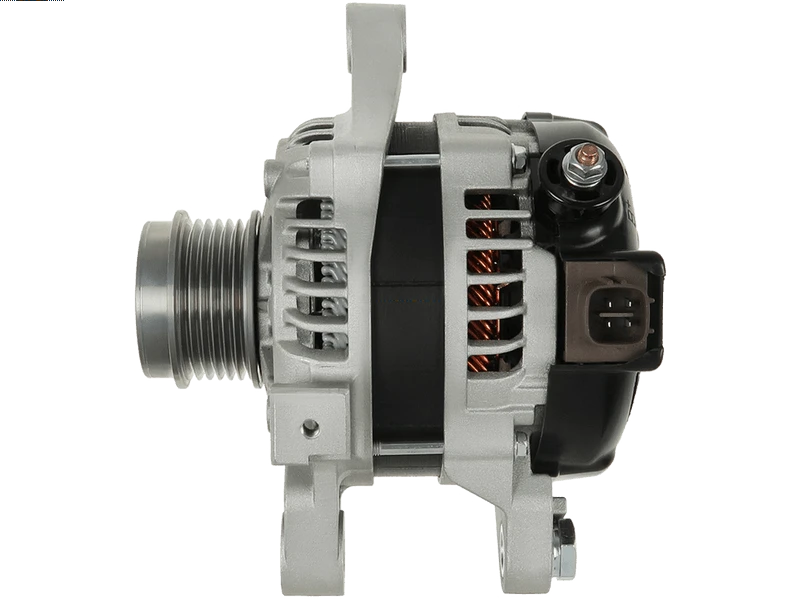

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 555.51 including GST
NZ$ 483.05 excluding GST
or four payments of $138.88
with
Learn More
each
A6798S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

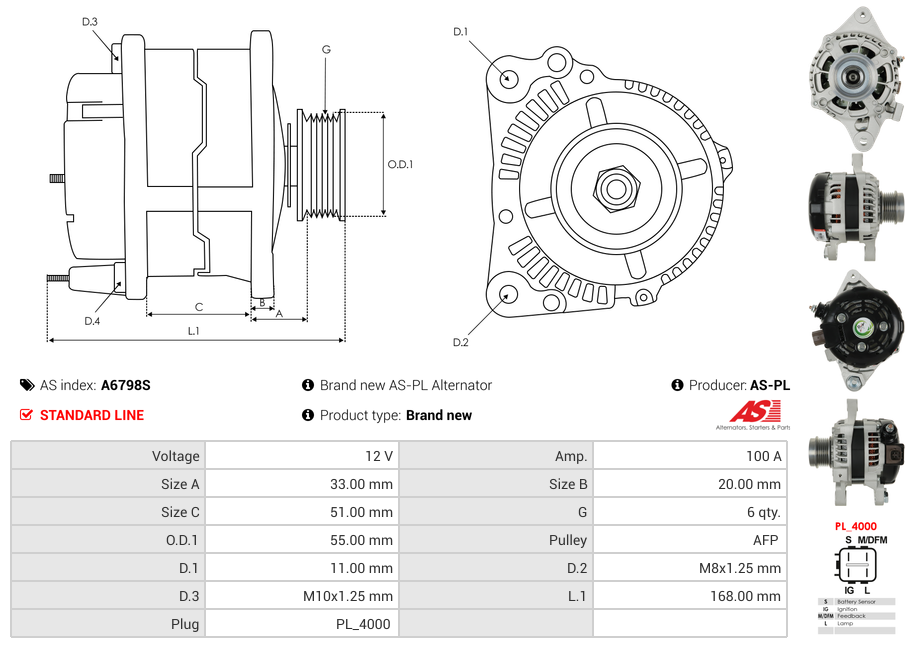

104211-3174Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCION | iM 1.8 | 01.2016-12.2016 | |
| TOYOTA | Corolla 1.8 | 01.2017-12.2018 |
Reference Information
| 104211-3171 | DENSO |
| 104211-3174 | DENSO |
| 27060-37150 | TOYOTA |
| 90-29-5932 | WILSON |
| UD102092A | AS-PL |
| UD102753A | AS-PL |
