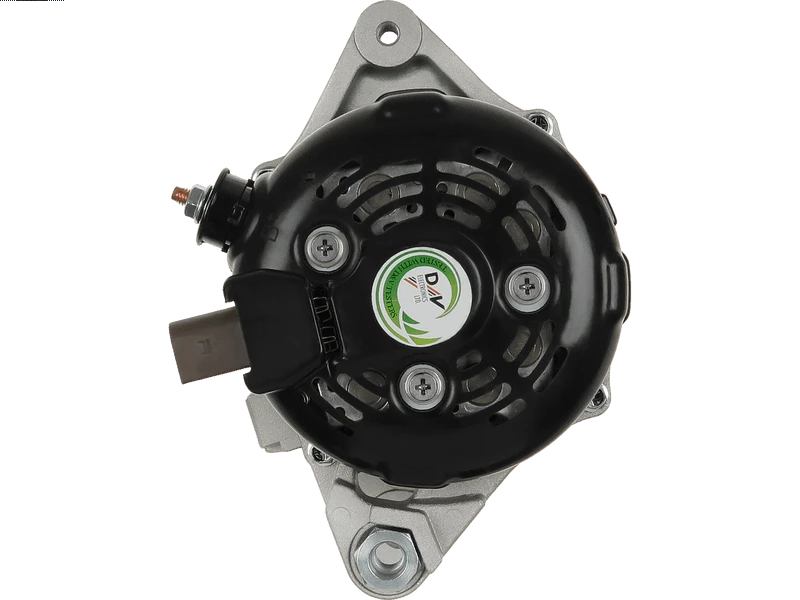

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 569.45 including GST
NZ$ 495.17 excluding GST
or four payments of $142.36
with
Learn More
each
A6810S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
104211-3462Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 33.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | RAV 4 2.0 4WD | [3ZR-FAE] | 04.2015-10.2018 |
| TOYOTA | RAV 4 2.0 VVTi 4WD | [3ZR-FAE] | 12.2012-11.2018 |
Reference Information
| 104211-3462 | DENSO |
| 195.321.130.260 | PSH |
| 2353661302 | DRI |
| 27060-37190 | TOYOTA |
| 28-7872 | ELSTOCK |
| 40115 | CEVAM |
| 89216680 | POWERMAX |
| AC-CBA6102 | ACAUTO |
| AL03785 | TMI |
| ALN2606 | KRAUF |
| LRA04263 | LUCAS |
| LRA4263 | LUCAS |
| UD30122A | AS-PL |
