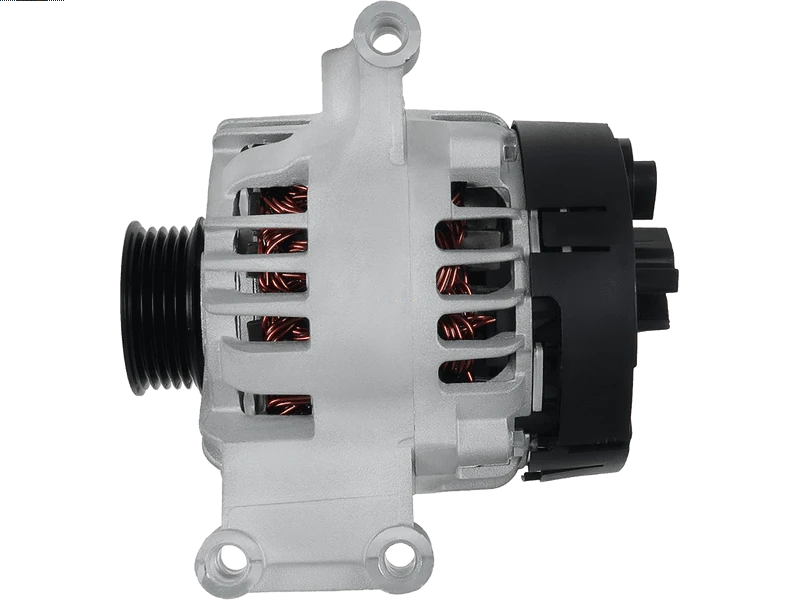

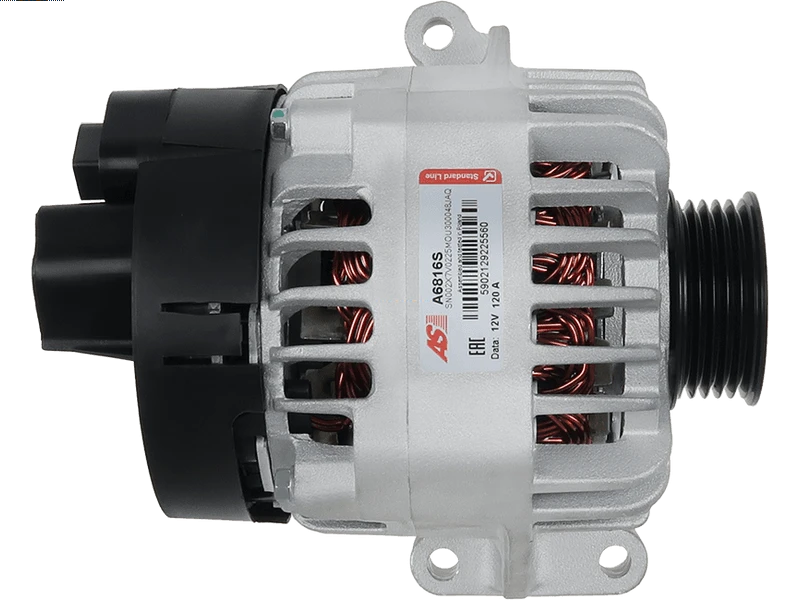

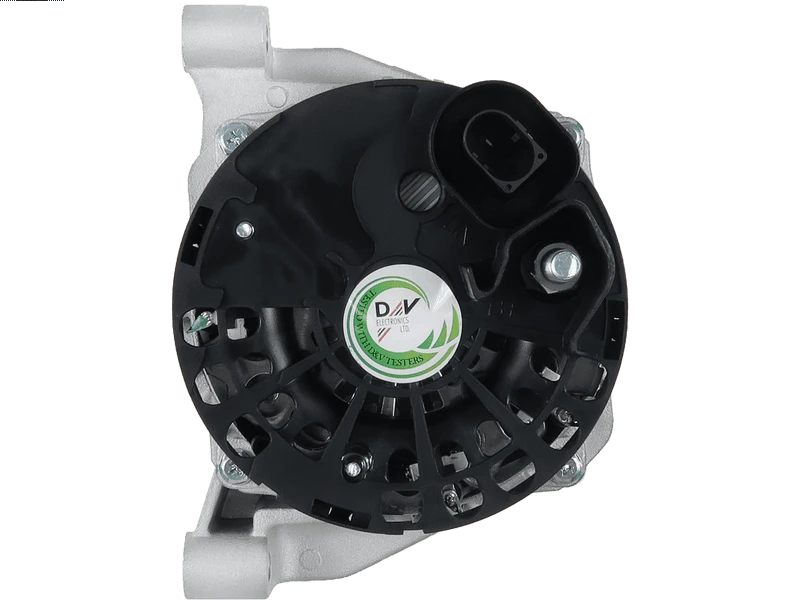

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 488.52 including GST
NZ$ 424.80 excluding GST
or four payments of $122.13
with
Learn More
each
A6816S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information

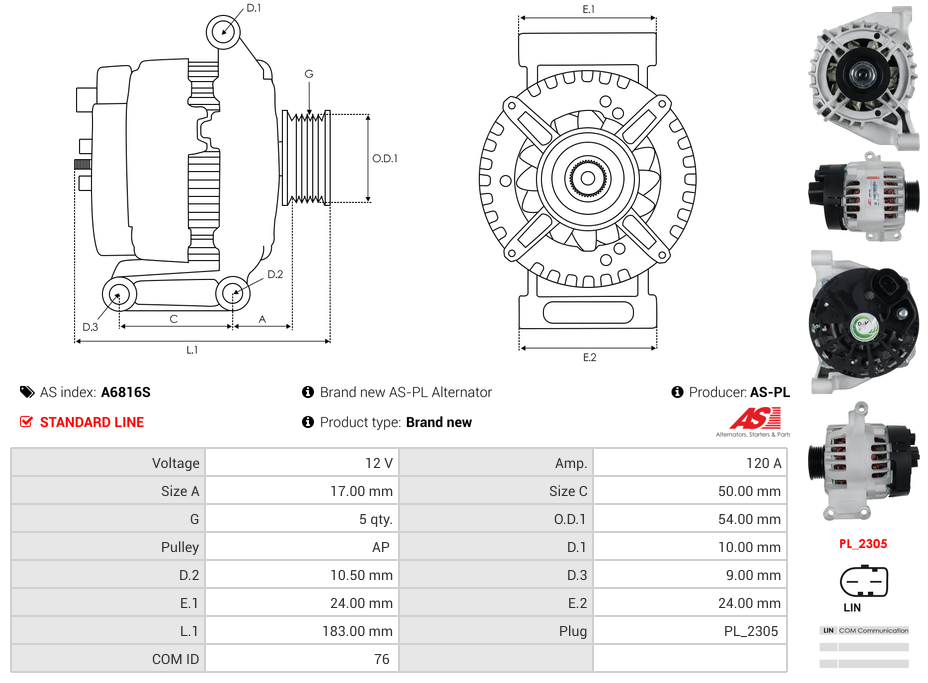

101210-1680Specifications
| Amp | 120 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 24 mm |
| Pad mount thickness (E.2) | 24 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 17 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.2 | [169-A4.000] | 07.2007- |
| FIAT | 500 1.2 LPG | [169-A4.000] | 12.2010- |
| FIAT | 500 C 1.2 | [169-A4.000] | 09.2009- |
| FIAT | 500L 1.4 | [843-A1.000] | 09.2012- |
| FIAT | 500L 1.4 | [940-B7.000] | 10.2013- |
| FIAT | 500L 1.4 LPG | [940-B7.000] | 02.2014- |
| FIAT | Panda 1.2 | [169-A4.000] | 02.2012- |
| FIAT | Panda 1.2 LPG | [169-A4.000] | 06.2012- |
| FIAT | Tipo 1.4 | [843-A1.000] | 03.2016- |
| FIAT | Tipo 1.4 | [843-A1.000] | 03.2016-10.2020 |
| FIAT | Tipo 1.4 | [843-A1.000] | 10.2015- |
| FIAT | Tipo 1.4 | [940-B7.000] | 03.2016-10.2020 |
| FIAT | Tipo 1.4 LPG | [940-B7.000] | 05.2016-10.2020 |
Reference Information
| 101210-1680 | DENSO |
| 104211-4810 | DENSO |
| 115643 | FARCOM |
| 12091066 | EUROTEC |
| 20040A48OV | ITAB AUTOMOTIVE |
| 20040A48RV | ITAB AUTOMOTIVE |
| 2013284AOE | REAL |
| 2013284ARC | REAL |
| 2040A48.1 | SANDO |
| 2040A48.2 | SANDO |
| 21818N | WAI / TRANSPO |
| 2183541202 | DRI |
| 28-8658 | ELSTOCK |
| 40737 | CEVAM |
| 505.950.120.050 | PSH |
| 51880171 | FIAT |
| 52137907 | FIAT |
| 556004RID | KUHNER |
| 71797624 | FIAT |
| 71798051 | FIAT |
| AL04433 | TMI |
| CAL40A48GS | CASCO |
| CAL40A48RS | CASCO |
| LRA04549 | LUCAS |
| LRA4549 | LUCAS |
| UD102341A | AS-PL |
