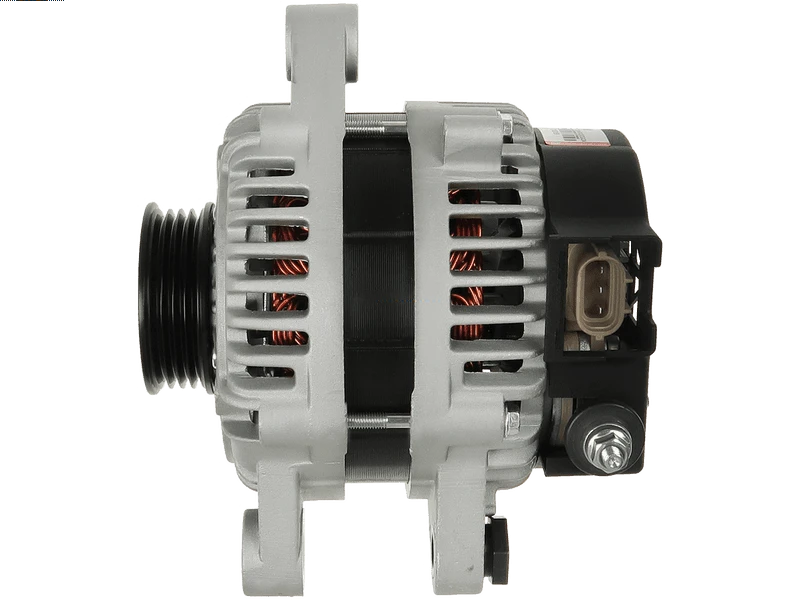

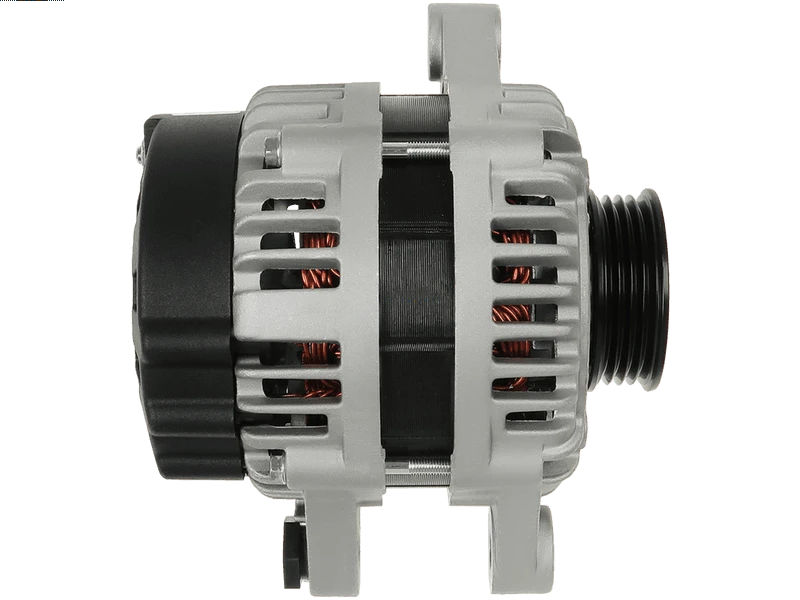

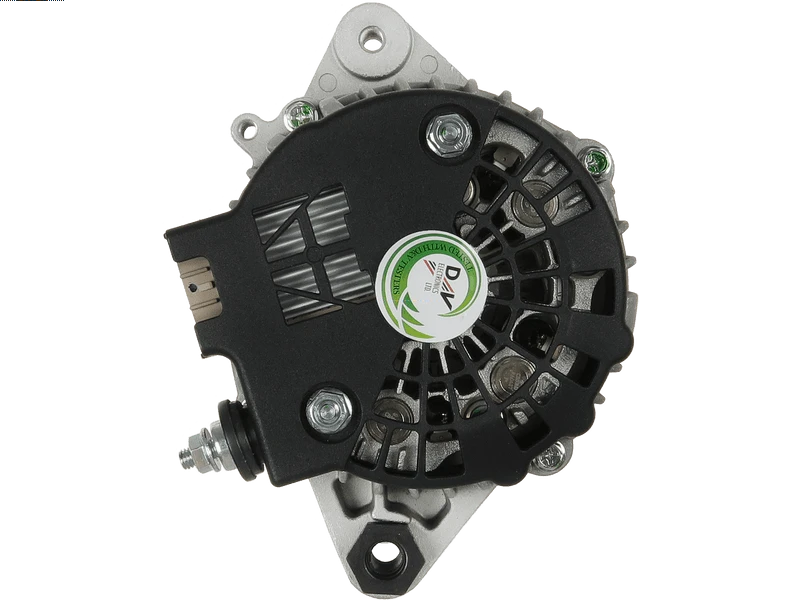

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
GREAT WALL
Price:
NZ$ 455.25 including GST
NZ$ 395.87 excluding GST
or four payments of $113.81
with
Learn More
each
A9456S
No stock in NZ currently
No stock in NZ currently
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

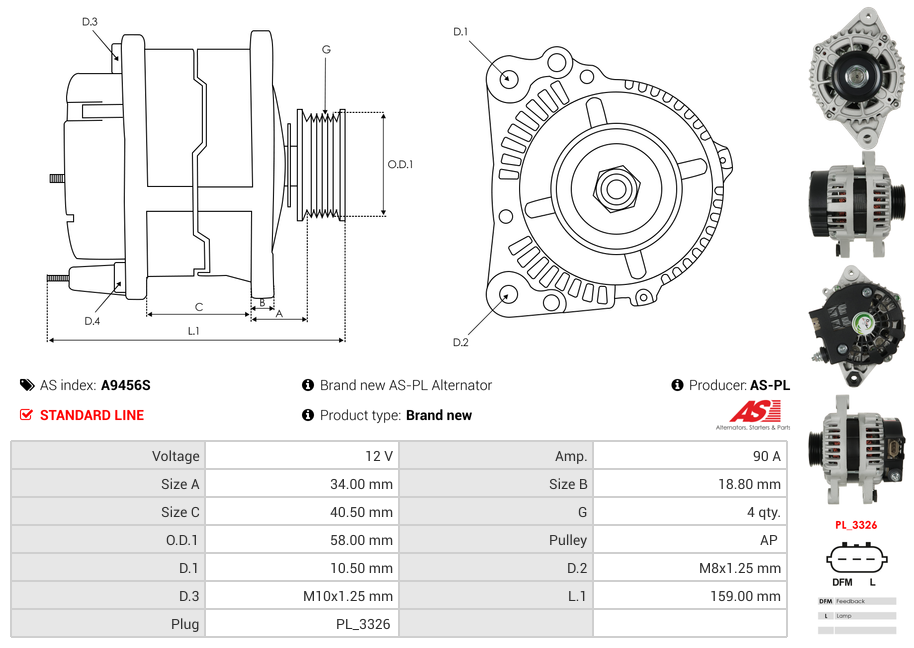

3701100A-EG01Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 18.80 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 159 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40.50 mm |
| OEM Product | No |
| Plug Code | PL_3326 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | GREAT WALL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GREAT WALL | Various Models |
Reference Information
| 245.954.090.200 | PSH |
| 255.530.090.000 | PSH |
| 3701100A-EG01 | GREAT WALL |
| 3701100-EG01 | GREAT WALL |
| 3701100E-G01B | GREAT WALL |
| 442126 | VALEO |
| ALQ2415 | KRAUF |
| TG9S059 | VALEO |
| UD21582A | AS-PL |
Video/Publications
