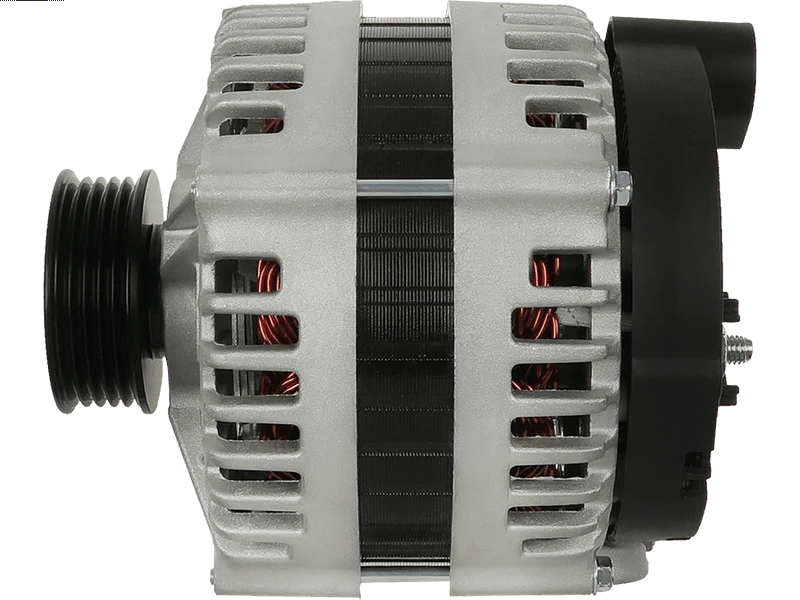

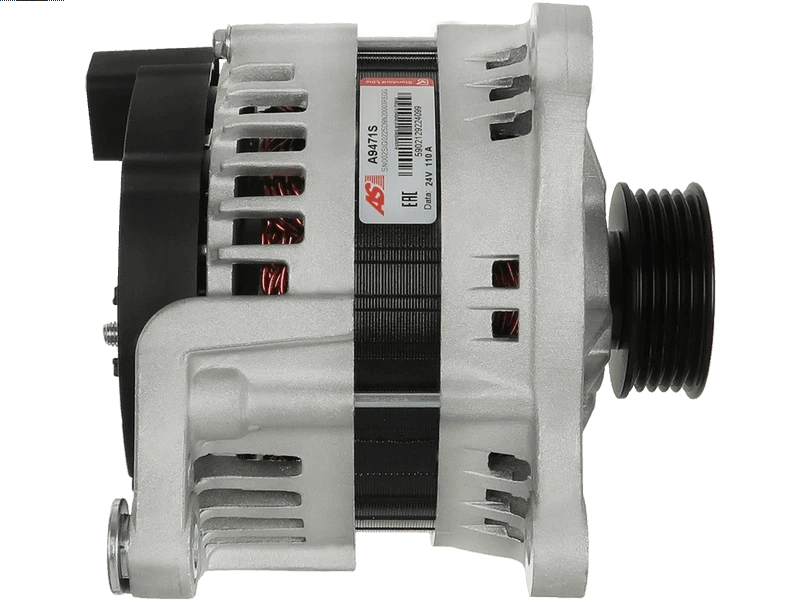

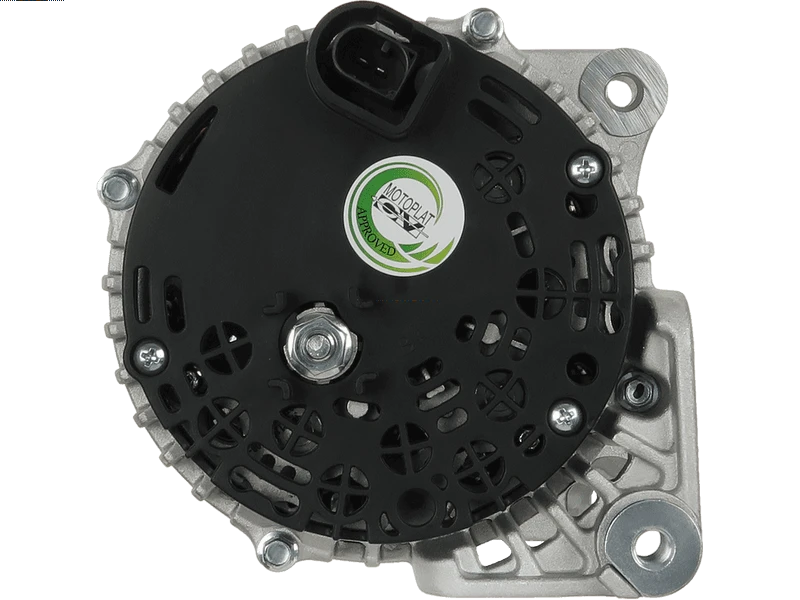

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
CUMMINS
Price:
NZ$ 441.81 including GST
NZ$ 384.18 excluding GST
or four payments of $110.45
with
Learn More
each
A9471S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

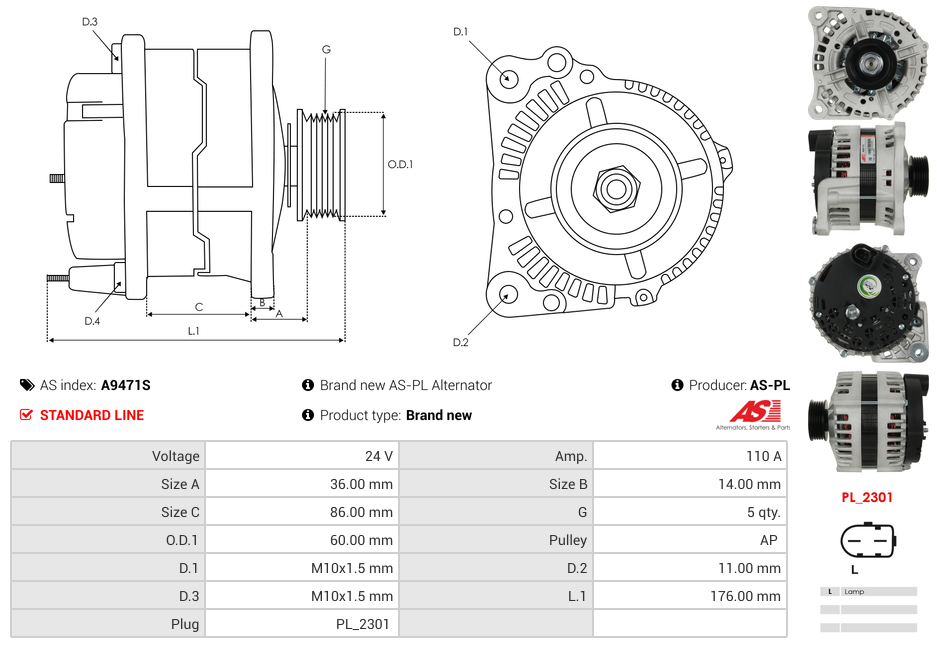

3698351Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | M10x1.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 86 mm |
| OEM Product | No |
| Plug Code | PL_2301 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 36 mm |
| Pulley Type | Solid |
| Unit Type | CUMMINS |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Engine |
Reference Information
| 115165 | FARCOM |
| 220-30353 | ROBERT'S |
| 3696213 | CUMMINS |
| 3698351 | CUMMINS |
| 556231RI | KUHNER |
| ALT42800 | WOODAUTO |
| UD30106A | AS-PL |
