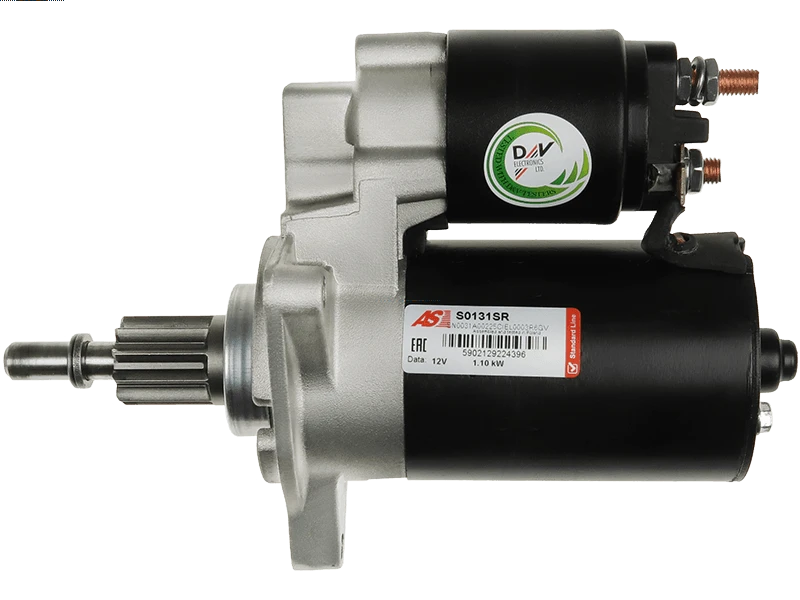

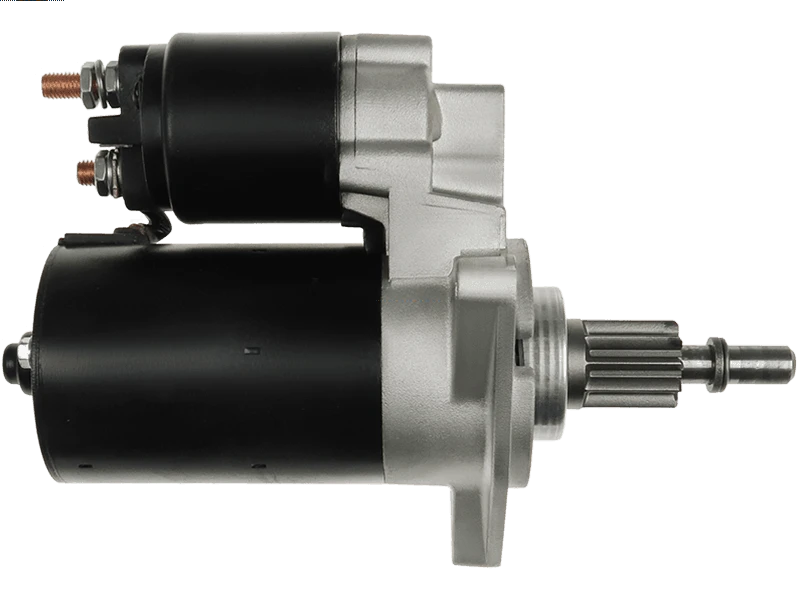

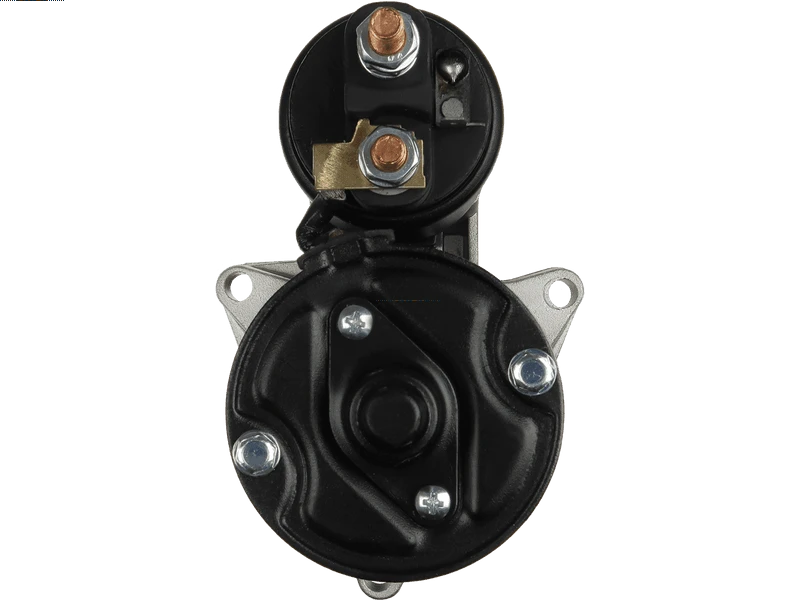

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 218.12 including GST
NZ$ 189.67 excluding GST
or four payments of $54.53
with
Learn More
UOM:
each
Product Code:
S0131SR
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 103 mm |
| Mount Hole Center - Center (O.3) | 107 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 52 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Transporter 1.8 | [PD] | 12.1990-07.1992 |
| VW | Transporter 2.0 | [AAC] | 07.1990-04.2003 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.8 | PD | 12.1990-07.1992 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0 | AAC | 09.1990-04.2003 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.8 | PD | 12.1990-07.1992 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.0 | AAC | 07.1990-04.2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 1.8 | PD | 12.1990-07.1992 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.0 | AAC | 07.1990-04.2003 |
Reference Information
| 0001107005 | BOSCH |
| 0001107006 | BOSCH |
| 0001108096 | BOSCH |
| 0001108097 | BOSCH |
| 0001121010 | BOSCH |
| 011-001-000352R | REMANTE |
| 02B911023B | VW |
| 02B911023BV | VW |
| 02B911023BX | VW |
| 02B911023F | VW |
| 02B911023FX | VW |
| 063720597010 | MAGNETI MARELLI |
| 0986016750 | BOSCH |
| 10015211OV | ITAB AUTOMOTIVE |
| 103415 | FARCOM |
| 10439978 | ALANKO |
| 10439979 | ALANKO |
| 10597 | KUHNER |
| 11016750 | EUROTEC |
| 11.131.178 | ISKRA / LETRIKA |
| 112306 | CARGO |
| 113677 | CARGO |
| 11717 | EAI |
| 20401723BN | REAL |
| 20401723OE | REAL |
| 2131438 | OMNICRAFT |
| 22.0597 | LAUBER |
| 25-1312 | ELSTOCK |
| 2B911023B | VW |
| 2B911023BV | VW |
| 2B911023BX | VW |
| 2B911023F | VW |
| 300.519.103.010 | WAI |
| 300.519.103.018 | WAI |
| 300.519.103.395 | WAI |
| 311040102 | DRI |
| 3116700 | HENKEL PARTS |
| 33031N | WAI |
| 330749 | LOGISTIK |
| 331328 | LOGISTIK |
| 3654 | CEVAM |
| 42016750 | HERTH+BUSS |
| 455979 | VALEO |
| 460531 | VALEO |
| 4716750 | NK |
| 6010327.0 | SANDO |
| 6010327.1 | SANDO |
| 717ST11 | STARTCAR |
| 72736040 | MAHLE |
| 8016750 | FRIESEN |
| 8213006 | POWERMAX |
| 88213006 | POWERMAX |
| 8EA726221-001 | HELLA |
| 943205971010 | MAGNETI MARELLI |
| 943241009010 | MAGNETI MARELLI |
| 944280167500 | MAGNETI MARELLI |
| A16750 | ATL AUTOTECHNIK |
| AC-CBS0597 | ACAUTO |
| AEY2033 | AUTOELECTRO |
| ANM18970X | ANDEL |
| AZE2640 | ISKRA / LETRIKA |
| BST2138 | BORG & BECK |
| BST2540 | BORG & BECK |
| CMA-621456 | COMLINE |
| CS597 | HC PARTS |
| CST10327AS | CASCO |
| CST10327GS | CASCO |
| DRS6750 | DELCO |
| F032112306 | CARGO |
| F032113677 | CARGO |
| IR8276 | PROTECH |
| IS1060 | ISKRA / LETRIKA |
| LRS02033 | LUCAS |
| LRS2033 | LUCAS |
| MAV123270 | SIOM |
| MQS597 | MAGNETI MARELLI |
| MRS16750 | MAGNETI MARELLI |
| MS412 | MAHLE |
| MSR1009 | MAGNETI MARELLI |
| MSRC597 | MAGNETI MARELLI |
| PRSF047 | 3EFFE |
| QRS1636 | QUINTON HAZELL |
| S12BH0625A2 | SIDAT |
| S132.173 | WAI |
| S148.560 | WAI |
| S512406 | BTS TURBO |
| SS314 | SOVEREIGN |
| ST00552 | TMI |
| STB0597 | KRAUF |
| STM1085 | ROLLCO |
| STR1707 | ELECTROLOG |
| STR50431 | WOODAUTO |
| STR78000 | ELECTROLOG |
| STRF047 | 3EFFE |
| STX200160 | STARDAX |
| STX200160R | STARDAX |
| V10-12-16750 | VEMO |
| VW9023 | SNRA |
| WG2045182 | WILMINK GROUP |
