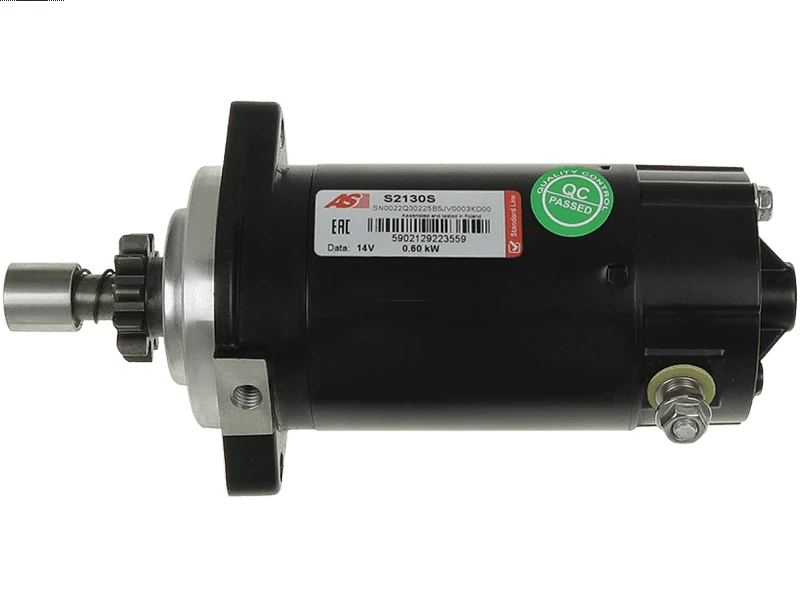

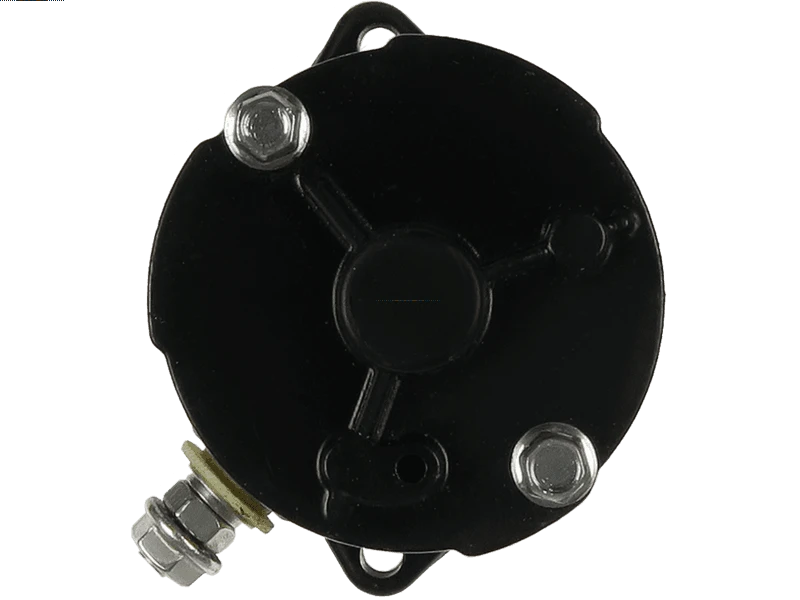

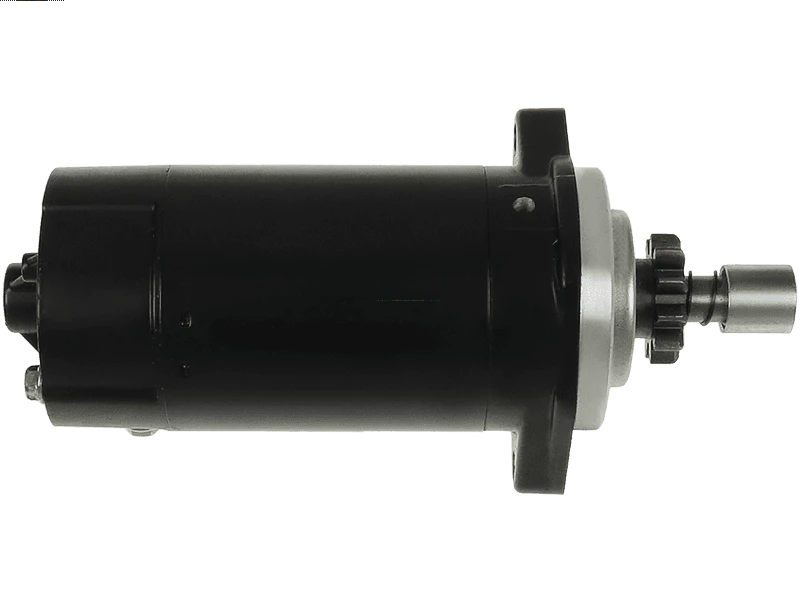

Brand new AS-PL Starter motor
PREMIUM LINE
AS-PL
HITACHI
Price:
NZ$ 247.07 including GST
NZ$ 214.84 excluding GST
or four payments of $61.77
with
Learn More
each
S2130S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 201 mm |
| Mount Hole Center - Center (O.1) | 85 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MARINER | 25E | [26.2ci-25H.P.] | 01.1980-12.1984 |
| MARINER | 25EL | [26.2ci-25H.P.] | 01.1980-12.1984 |
| MARINER | 30E | [30.3ci-30H.P.] | 01.1980-12.1986 |
| MARINER | 30EL | [30.3ci-30H.P.] | 01.1980-12.1986 |
| MARINER | 30ELO | [30.3ci-30H.P.] | 01.1987-12.1989 |
| MARINER | 30EO | [30.3ci-30H.P.] | 01.1987-12.1990 |
| MARINER | 40E | [36.1ci-40H.P.] | 01.1981-12.1985 |
| MARINER | 40EL | [36.1ci-40H.P.] | 01.1981-12.1985 |
| MARINER | 40ELHPTO | [36.1ci-40H.P.] | 01.1986-12.1988 |
| MARINER | 40ELO | [36.1ci-40H.P.] | 01.1986-12.1989 |
| MARINER | 40ELPTO | [36.1ci-40H.P.] | 01.1986-12.1988 |
| MARINER | 40EO | [36.1ci-40H.P.] | 01.1986-12.1989 |
| MERCURY | 30ELO | [30.3ci-30H.P.] | 01.1987-12.1990 |
| MERCURY | 30EO | [30.3ci-30H.P.] | 01.1987-12.1990 |
| YAMAHA | 25EL | 01.1984-12.1985 | |
| YAMAHA | 25ES | 01.1984-12.1985 | |
| YAMAHA | 25L | 01.1984-12.1985 | |
| YAMAHA | 25S | 01.1984-12.1985 | |
| YAMAHA | 30EL | 01.1984-12.1986 | |
| YAMAHA | 30ES | 01.1984-12.1986 | |
| YAMAHA | C25ELH | 01.1993-12.1997 | |
| YAMAHA | C25ELR | 01.1991-12.1997 | |
| YAMAHA | C25MLH | 01.1993-12.1997 | |
| YAMAHA | C25MSH | 01.1993-12.1997 | |
| YAMAHA | C30ELR | 01.1991-12.1997 | |
| YAMAHA | C40ELR | 01.1991-12.1997 | |
| YAMAHA | C40ESH | 01.1997-12.1997 | |
| YAMAHA | C40MLH | 01.1995-12.1995 | |
| YAMAHA | C40MSH | 01.1992-12.1997 | |
| YAMAHA | C40PLR | 01.1992-12.1997 | |
| YAMAHA | CV25EL | 01.1990-12.1990 | |
| YAMAHA | CV25EML | 01.1990-12.1990 | |
| YAMAHA | CV30EL | 01.1990-12.1990 | |
| YAMAHA | CV40EL | 01.1990-12.1990 |
Reference Information
| 10020205AV | ITAB AUTOMOTIVE |
| 104-10371 | ROBERT'S |
| 104-10371NOE | ROBERT'S |
| 10439338 | ALANKO |
| 114675 | CARGO |
| 18310 | LESTER |
| 18310N | WAI / TRANSPO |
| 20445502BN | REAL |
| 20445502OE | REAL |
| 2-2309-HI | WAI / TRANSPO |
| 240-06103 | DIXIE |
| 255053 | KUHNER |
| 3127597 | HENKEL PARTS |
| 50-814980M | MERCURY MARINE |
| 50-96359M | MERCURY MARINE |
| 50-97693M | MERCURY MARINE |
| 6020205.0 | SANDO |
| 6020205.1 | SANDO |
| 689-81800-11 | YAMAHA |
| 689-81800-11-00 | YAMAHA |
| 689-81800-12 | YAMAHA |
| 689-81800-12-00 | YAMAHA |
| 689-81800-13 | YAMAHA |
| 689-81800-13-00 | YAMAHA |
| 71-25-18310 | WILSON |
| 970.021.112.080 | PSH |
| CST20205AS | CASCO |
| CST20205GS | CASCO |
| F032114675 | CARGO |
| HT2-0055N | JUST PARTS |
| MAV222050 | SIOM |
| PRSF526 | 3EFFE |
| RS41149 | DELCO |
| S108-80 | HITACHI |
| S108-80A | HITACHI |
| S108-80B | HITACHI |
| S108-80BN | HITACHI |
| SHI0085 | ARROWHEAD |
| SHI205 | AUTOTEAM |
| STH6359 | KRAUF |
| STR3123 | AUTOELECTRO |
| STR72227 | WOODAUTO |
| STRF526 | 3EFFE |
| TT16735 | TESLA |
| UD19216S | AS-PL |
| WOOSTR72227 | WOODAUTO |
