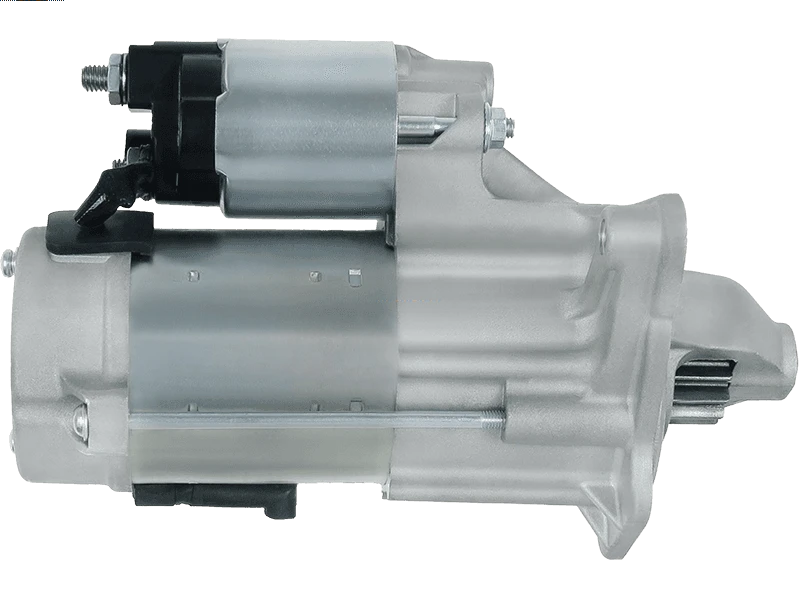

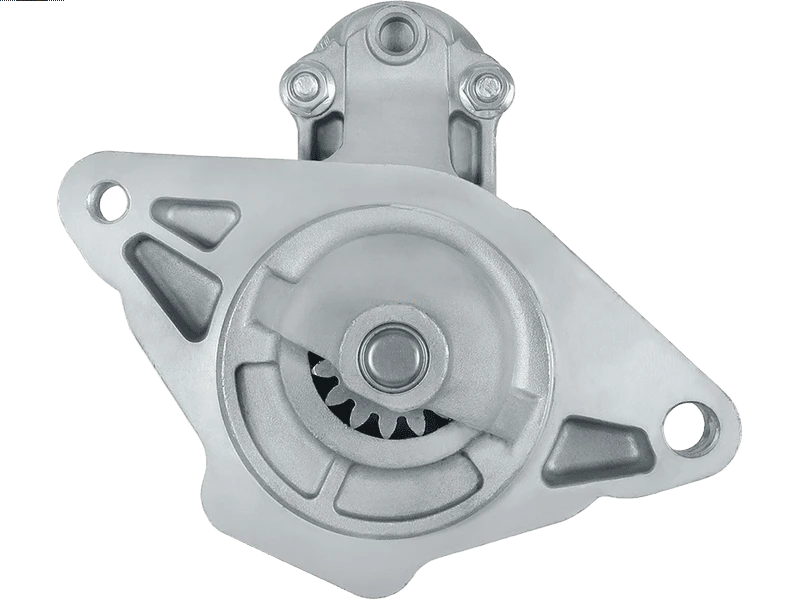

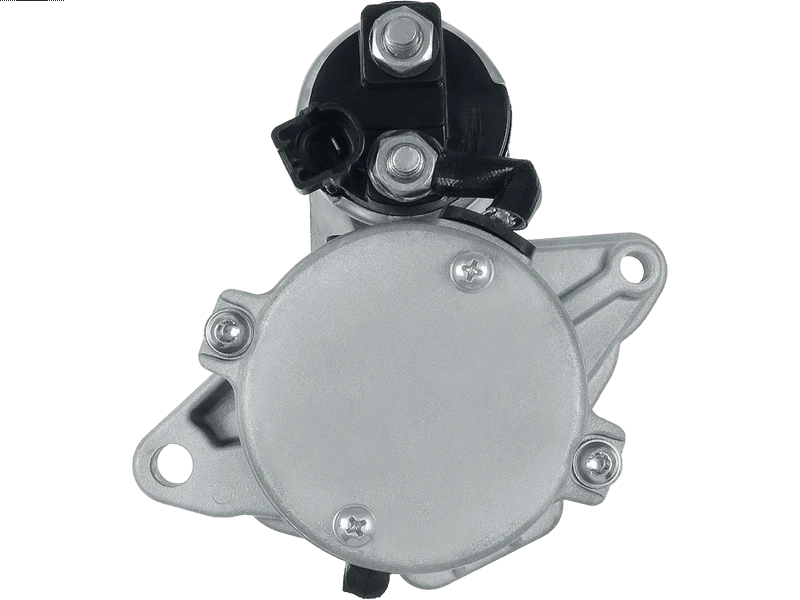

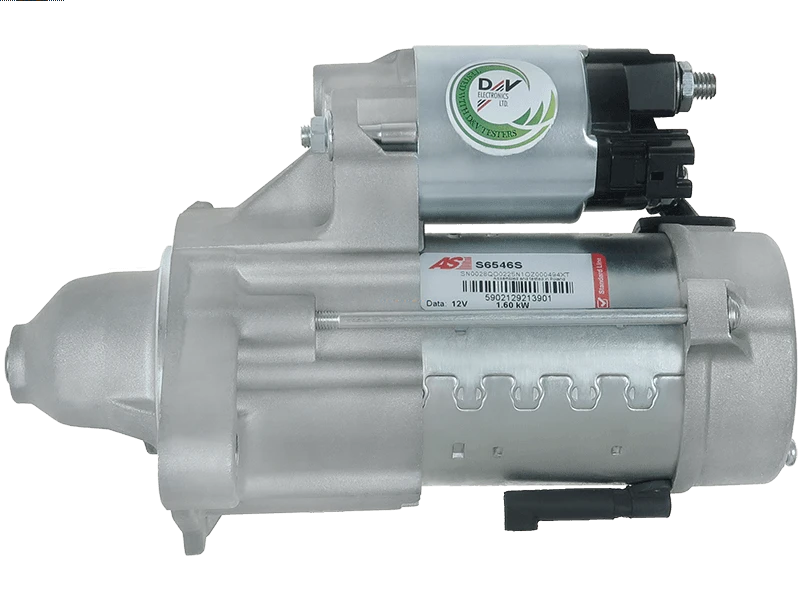

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 469.91 including GST
NZ$ 408.62 excluding GST
or four payments of $117.48
with
Learn More
each
S6546S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
428000-6580Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 137 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 15 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ASTON MARTIN | Cygnet 1.3 | [1NR-FE] | 04.2011-10.2013 |
| TOYOTA | IQ 1.3 | [1NR-FE] | 01.2009-12.2015 |
Reference Information
| 10040506AV | ITAB AUTOMOTIVE |
| 20432605BN | REAL |
| 25-5121 | ELSTOCK |
| 28100-47160 | TOYOTA |
| 28100-47160 | TOYOTA |
| 28100-47161 | TOYOTA |
| 28100-47161 | TOYOTA |
| 28100-47162 | TOYOTA |
| 28100-47162 | TOYOTA |
| 335255152 | DRI |
| 3630 | CEVAM |
| 428000-6580 | DENSO |
| 428000-8600 | DENSO |
| 428000-9010 | DENSO |
| 428000-9011 | DENSO |
| 6040506.0 | SANDO |
| 88215157 | POWERMAX |
| CST40506AS | CASCO |
| DSN1240 | DENSO |
| LRS03959 | LUCAS |
| LRS3959 | LUCAS |
| MAV425060A | SIOM |
| S6546S | AS-PL |
| ST02084 | TMI |
| UD19721S | AS-PL |
