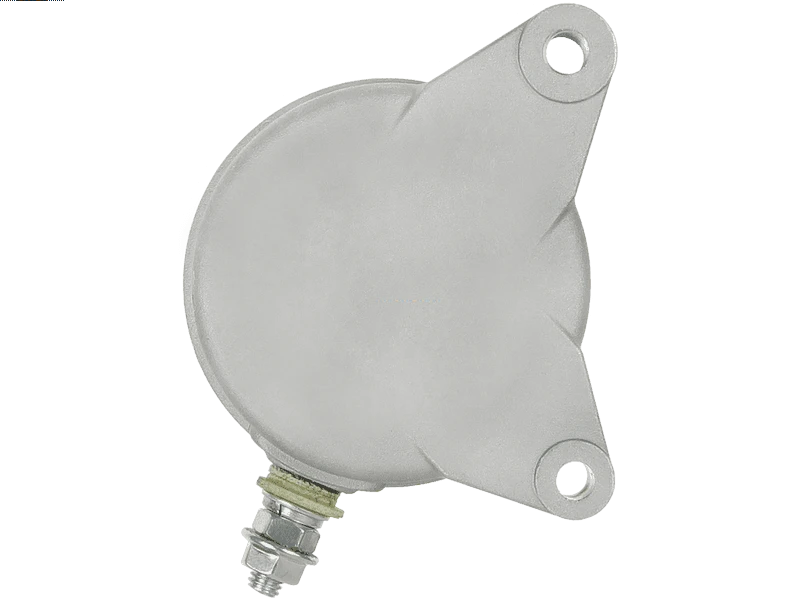

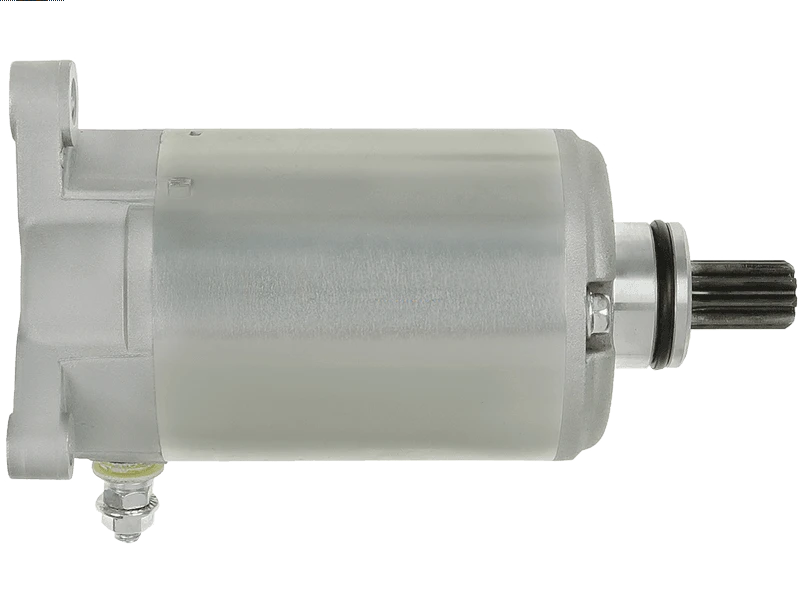

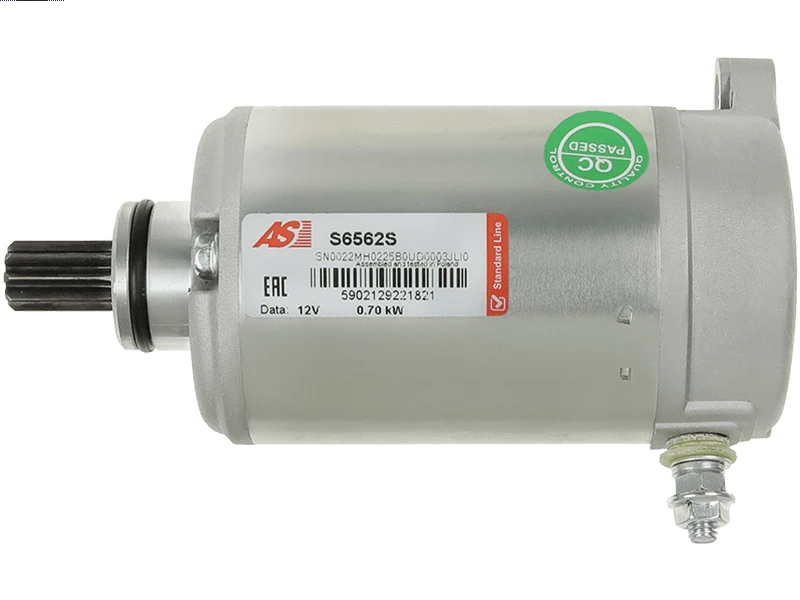

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 126.30 including GST
NZ$ 109.83 excluding GST
or four payments of $31.58
with
Learn More
each
S6562S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
420-684-560 420-684-562 420-684-566 420-684-568 420684568 420684566 420684562 420684560 ARROWHEAD SND0513 428000-3580 18880 190-6195 Sea-Doo Wilson 71-29-18880 400548092 PSH Bombardier 428000358 4280003580 4280003580W RNL 410-52128 4280003581 428000-3582 428000-3581 4280003582 DENSO 428000-358 246-06153 Motor Service 18880N BA-110N 610-18880 PIC (Old) 191-533 RS41308 18880N-S 432896 Voltux V1-18880 WAISpecifications
| Kilowatt | 0.70 kW |
| Length (L.1) | 157 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| OEM Product | No |
| Pinion at Rest (B) | 39.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOMBARDIER | Outlander 500 EFI | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander 500 HO | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander 500 XT | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander 650 EFI | [650cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander 650 HO | [650cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander 800 EFI | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander 800 HO | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander 800 XT | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 500 EFI | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander Max 500 HO | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander Max 500 XT | [500cc] | 01.2007-12.2009 |
| BOMBARDIER | Outlander Max 650 EFI | [650cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 650 HO | [650cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 650 XT | [650cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 800 EFI | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 800 HO | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max 800 XT | [800cc] | 01.2006-12.2009 |
| BOMBARDIER | Outlander Max XT 800 4x4 | [800cc] | 01.2006-12.2006 |
| BOMBARDIER | Renegade 500EFI | [500cc] | 01.2008-12.2009 |
| BOMBARDIER | Renegade 800 EFI | [800cc] | 01.2007-12.2009 |
| BOMBARDIER | Renegade 800X | [800cc] | 01.2007-12.2009 |
| CAN-AM | Commander 1000 EFI | [976cc] | 01.2011-12.2012 |
| CAN-AM | Commander 1000 EFI | [976cc] | 01.2012-12.2012 |
| CAN-AM | Commander 1000 EFI LTD | [976cc] | 01.2012-12.2012 |
| CAN-AM | Commander 1000 X | [976cc] | 01.2012-12.2012 |
| CAN-AM | Commander 1000 XT | [976cc] | 01.2012-12.2012 |
| CAN-AM | Commander 800R EFI | [800cc] | 01.2011-12.2012 |
| CAN-AM | Commander 800R EFI | [800cc] | 01.2012-12.2012 |
| CAN-AM | Commander 800 XT | [800cc] | 01.2012-12.2012 |
| LYNX | Adventure V-800 | [800cc] | 01.2007-12.2008 |
| LYNX | Ranger V-800 | [800cc] | 01.2008-12.2008 |
| LYNX | Xtrim SC800 | [799cc] | 01.2008-12.2008 |
| LYNX | Yeti V-800 Pro | [799cc] | 01.2006-12.2008 |
| SKI-DOO | Expedition TUV-800 | [796cc] | 01.2007-12.2008 |
| SKI-DOO | Expedition V-800 | [796cc] | 01.2007-12.2008 |
| SKI-DOO | Legend V-800 | [796cc] | 01.2007-12.2008 |
| SKI-DOO | Scandic V-800 | [799cc] | 01.2007-12.2008 |
| SKI-DOO | Skandic V-800 | [799cc] | 01.2007-12.2008 |
Reference Information
| 10040583AV | ITAB AUTOMOTIVE |
| 10439134 | ALANKO |
| 107575 | FARCOM |
| 18880 | LESTER |
| 18880N | WAI / TRANSPO |
| 20062015 | BOMBARDIER |
| 20432385BN | REAL |
| 410-52128 | J&N |
| 420-684-560 | BOMBARDIER |
| 420-684-562 | BOMBARDIER |
| 428000-3580 | DENSO |
| 428000-3582 | DENSO |
| 439134 | ALANKO |
| 6040583.0 | SANDO |
| 684560 | BOMBARDIER |
| 71-29-18880 | WILSON |
| CST40583AS | CASCO |
| RAS41308 | DELCO |
| RS41308 | DELCO |
| SND0513 | ARROWHEAD |
| STN3580 | KRAUF |
| UD19119S | AS-PL |
