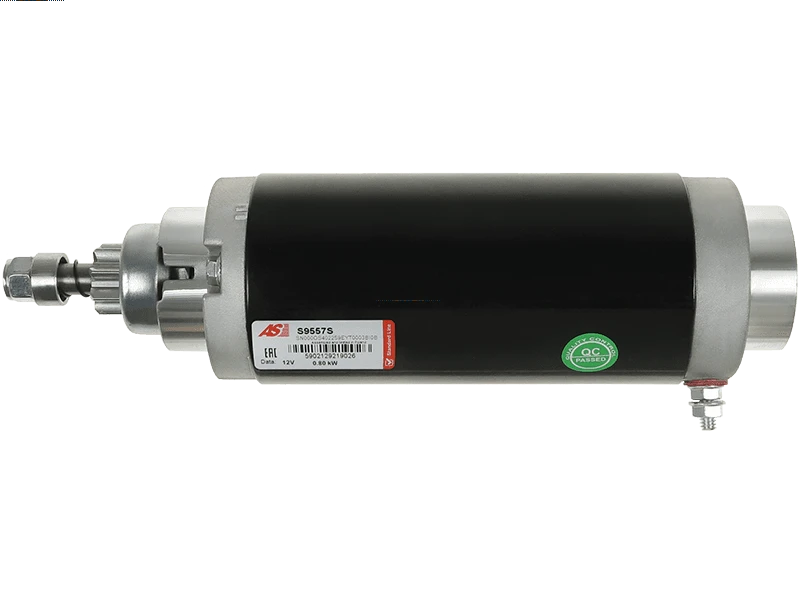

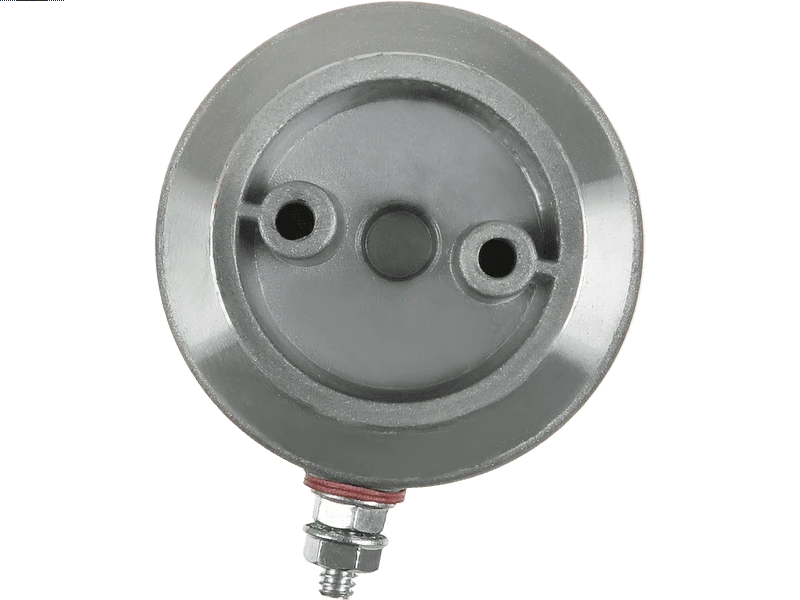

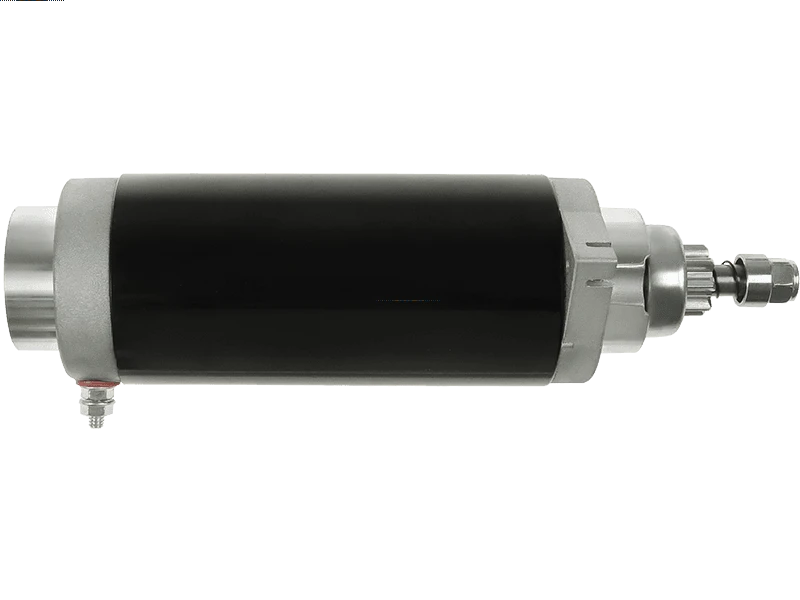

S9557S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS GROUP NZ
SKU: S9557S
Price: 216.84 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

JOHNSON ELECTRIC

Price:

NZ$ 216.84 including GST

NZ$ 188.56 excluding GST

or four payments of $54.21 with
Learn More

UOM:

each

Product Code:

S9557S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information
Video/Publications

Kilowatt	0.80 kW
Length (L.1)	290 mm
Mount Hole Diameter (C.1)	5 mm
No./Mount holes	0 qty
No./Mount holes with thread	0 qty
No./Teeth	8 qty
OEM Product	No
Pinion at Rest (B)	45 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Unit Type	JOHNSON ELECTRIC
Voltage	12 V

Make	Model	Type	Year
MARINER	135CXL 2.0	[121.9ci-135H.P.]	01.1993-12.2000
MARINER	135ELPTO 2.0	[121.9ci-135H.P.]	01.1986-12.1988
MARINER	135EXLPTO 2.0	[121.9ci-135H.P.]	01.1986-12.1988
MARINER	135L 2.0	[121.9ci-135H.P.]	01.1989-12.2000
MARINER	135XL 2.0	[121.9ci-135H.P.]	01.1989-12.2000
MARINER	150CXL 2.0	[121.9ci-150H.P.]	01.1989-12.1998
MARINER	150CXL EFI 2.5	[153.0ci-150H.P.]	01.1994-12.2000
MARINER	150CXL Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2000
MARINER	150ELPT 2.0	[121.9ci-150H.P.]	01.1979-12.1985
MARINER	150ELPTO 2.0	[121.9ci-150H.P.]	01.1986-12.1988
MARINER	150ELXPTO 2.0	[121.9ci-150H.P.]	01.1986-12.1988
MARINER	150EXLPT 2.0	[121.9ci-150H.P.]	01.1979-12.1985
MARINER	150L 2.0	[121.9ci-150H.P.]	01.1989-12.1998
MARINER	150L EFI 2.5	[153.0ci-150H.P.]	01.1999-12.2000
MARINER	150L Jet 105 2.0	[121.9ci-150H.P.]	01.1995-12.1998
MARINER	150L XR6 2.5	[153.0ci-150H.P.]	01.1999-12.2000
MARINER	150 Magnum 2.5	[153.0ci-150H.P.]	01.1989-12.1991
MARINER	150 Magnum 2.5	[153.0ci-150H.P.]	01.1994-12.2000
MARINER	150 Magnum EFI 2.5	[153.0ci-150H.P.]	01.1992-12.1998
MARINER	150XL 2.0	[121.9ci-150H.P.]	01.1989-12.1998
MARINER	150XL EFI 2.5	[153.0ci-150H.P.]	01.1994-12.2000
MARINER	150XL Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2000
MARINER	175CXL 2.3	[142.2ci-175H.P.]	01.1989-12.1989
MARINER	175CXL 2.5	[153.0ci-175H.P.]	01.1993-12.2000
MARINER	175ELPT 2.0	[121.9ci-175H.P.]	01.1979-12.1980
MARINER	175ELPTO 2.3	[142.2ci-175H.P.]	01.1985-12.1988
MARINER	175EXLPT 2.0	[121.9ci-175H.P.]	01.1979-12.1980
MARINER	175EXLPTO 2.3	[142.2ci-175H.P.]	01.1985-12.1988
MARINER	175L 2.3	[142.2ci-175H.P.]	01.1989-12.1991
MARINER	175L 2.5	[153.0ci-175H.P.]	01.1992-12.2000
MARINER	175L Magnum EFI 2.3	[142.2ci-175H.P.]	01.1991-12.1991
MARINER	175L Magnum EFI 2.5	[153.0ci-175H.P.]	01.1992-12.1999
MARINER	175SKI 2.3	[142.2ci-175H.P.]	01.1990-12.1990
MARINER	175XL 2.3	[142.2ci-175H.P.]	01.1989-12.1991
MARINER	175XL 2.5	[153.0ci-175H.P.]	01.1992-12.2000
MARINER	175XL EFI 2.5	[153.0ci-175H.P.]	01.1997-12.2000
MARINER	200CXL 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MARINER	200CXL 2.5	[153.0ci-200H.P.]	01.1991-12.2000
MARINER	200CXL EFI 2.5	[153.0ci-200H.P.]	01.1994-12.1999
MARINER	200CXL EFI 2.5	[153.0ci-200H.P.]	01.2000-12.2000
MARINER	200ELPT 2.3	[142.2ci-200H.P.]	01.1980-12.1984
MARINER	200ELPTO 2.3	[142.2ci-200H.P.]	01.1985-12.1988
MARINER	200EXLPT 2.3	[142.2ci-200H.P.]	01.1980-12.1984
MARINER	200EXLPTO 2.3	[142.2ci-200H.P.]	01.1985-12.1988
MARINER	200L 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MARINER	200L 2.5	[153.0ci-200H.P.]	01.1991-12.2000
MARINER	200L Jet 140 2.5	[153.0ci-200H.P.]	01.1995-12.2000
MARINER	200L Magnum EFI 2.5	[153.0ci-200H.P.]	01.1992-12.1999
MARINER	200L Magnum EFI 2.5	[153.0ci-200H.P.]	01.2000-12.2000
MARINER	200XL 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MARINER	200XL 2.5	[153.0ci-200H.P.]	01.1991-12.2000
MARINER	200XL EFI 2.5	[153.0ci-200H.P.]	01.1994-12.1999
MARINER	200XL EFI 2.5	[153.0ci-200H.P.]	01.2000-12.2000
MARINER	200XRI EFI 2.5	[153.0ci-200H.P.]	01.1994-12.1995
MARINER	220EFIELPTO Magnum 2.3	[142.2ci-220H.P.]	01.1987-12.1988
MARINER	220EFIEXLPTO Magnum 2.3	[142.2ci-220H.P.]	01.1987-12.1988
MARINER	250XL 3.4	[207.0ci-250H.P.]	01.1989-12.1990
MARINER	250XXL 3.4	[207.0ci-250H.P.]	01.1989-12.1990
MARINER	275CXL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MARINER	275CXXL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MARINER	275L 3.4	[207.0ci-275H.P.]	01.1991-12.1993
MARINER	275XL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MARINER	275XXL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MERCURY	135CXL 2.0	[121.9ci-135H.P.]	01.1990-12.2000
MERCURY	135ELPTO Marathon 2.0	[121.9ci-135H.P.]	01.1986-12.1988
MERCURY	135EXLPTO Marathon 2.0	[121.9ci-135H.P.]	01.1986-12.1988
MERCURY	135L 2.0	[121.9ci-135H.P.]	01.1989-12.2000
MERCURY	135XL 2.0	[121.9ci-135H.P.]	01.1989-12.2000
MERCURY	150CXL 2.0	[121.9ci-150H.P.]	01.1989-12.1999
MERCURY	150CXL EFI 2.5	[153.0ci-150H.P.]	01.1995-12.2000
MERCURY	150CXL EFI Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150CXL Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150ELPT 2.0	[121.9ci-150H.P.]	01.1978-12.1985
MERCURY	150ELPTO 2.0	[121.9ci-150H.P.]	01.1986-12.1988
MERCURY	150ELPTO XR2 2.0	[121.9ci-150H.P.]	01.1984-12.1985
MERCURY	150ELPTO XR2 2.0	[121.9ci-150H.P.]	01.1986-12.1987
MERCURY	150ELPTO XR4 2.3	[142.2ci-150H.P.]	01.1988-12.1991
MERCURY	150ELXPTO 2.0	[121.9ci-150H.P.]	01.1984-12.1985
MERCURY	150ELXPTO 2.0	[121.9ci-150H.P.]	01.1986-12.1988
MERCURY	150EXLPT 2.0	[121.9ci-150H.P.]	01.1978-12.1985
MERCURY	150L 2.0	[121.9ci-150H.P.]	01.1989-12.2005
MERCURY	150L EFI 2.5	[153.0ci-150H.P.]	01.1996-12.2005
MERCURY	150L EFI Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150L Jet 105 2.0	[121.9ci-150H.P.]	01.1995-12.1998
MERCURY	150L Pro Max		01.1998-12.1998
MERCURY	150L XR6 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150SS Pro Max		01.1998-12.1998
MERCURY	150XL 2.0	[121.9ci-150H.P.]	01.1989-12.1998
MERCURY	150XL EFI 2.5	[153.0ci-150H.P.]	01.1995-12.2000
MERCURY	150XL EFI Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150XL Saltwater 2.5	[153.0ci-150H.P.]	01.1999-12.2005
MERCURY	150XR6 2.5	[153.0ci-150H.P.]	01.1992-12.1998
MERCURY	150XRI EFI 2.5	[153.0ci-150H.P.]	01.1993-12.1995
MERCURY	175CXL 2.3	[142.2ci-175H.P.]	01.1989-12.1989
MERCURY	175CXL 2.5	[153.0ci-175H.P.]	01.1992-12.1999
MERCURY	175CXL EFI 2.5	[153.0ci-175H.P.]	01.2000-12.2000
MERCURY	175ELPT 2.0	[121.9ci-175H.P.]	01.1976-12.1981
MERCURY	175ELPTO 2.3	[142.2ci-175H.P.]	01.1985-12.1988
MERCURY	175EXLPT 2.0	[121.9ci-175H.P.]	01.1978-12.1981
MERCURY	175EXLPTO 2.3	[142.2ci-175H.P.]	01.1985-12.1988
MERCURY	175L 2.3	[142.2ci-175H.P.]	01.1989-12.1991
MERCURY	175L 2.5	[153.0ci-175H.P.]	01.1992-12.1999
MERCURY	175L EFI 2.5	[153.0ci-175H.P.]	01.1996-12.2002
MERCURY	175XL 2.3	[142.2ci-175H.P.]	01.1989-12.1991
MERCURY	175XL 2.5	[153.0ci-175H.P.]	01.1992-12.1999
MERCURY	175XL EFI 2.5	[153.0ci-175H.P.]	01.1997-12.2002
MERCURY	175XLI 2.3	[142.2ci-175H.P.]	01.1991-12.1991
MERCURY	175XRI EFI 2.5	[153.0ci-175H.P.]	01.1992-12.1995
MERCURY	200CXL 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MERCURY	200CXL 2.5	[153.0ci-200H.P.]	01.1989-12.1990
MERCURY	200CXL EFI 2.5	[153.0ci-200H.P.]	01.1994-12.2005
MERCURY	200ELPT 2.3	[142.2ci-200H.P.]	01.1978-12.1984
MERCURY	200ELPTO 2.3	[142.2ci-200H.P.]	01.1984-12.1988
MERCURY	200ELPTO XRI 2.3	[142.2ci-200H.P.]	01.1989-12.1991
MERCURY	200ELPTO XRI 2.5	[153.0ci-200H.P.]	01.1992-12.1994
MERCURY	200EXLPT 2.3	[142.2ci-200H.P.]	01.1978-12.1984
MERCURY	200EXLPTO 2.3	[142.2ci-200H.P.]	01.1984-12.1988
MERCURY	200L 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MERCURY	200L 2.5	[153.0ci-200H.P.]	01.1989-12.1990
MERCURY	200L EFI 2.5	[153.0ci-200H.P.]	01.1996-12.2005
MERCURY	200L Jet 140 2.5	[153.0ci-200H.P.]	01.1994-12.2000
MERCURY	200L Promax Racing		01.1998-12.1999
MERCURY	200SS Promax Racing		01.1998-12.1999
MERCURY	200XL 2.3	[142.2ci-200H.P.]	01.1989-12.1990
MERCURY	200XL 2.5	[153.0ci-200H.P.]	01.1989-12.1990
MERCURY	200XL EFI 2.5	[153.0ci-200H.P.]	01.1994-12.2005
MERCURY	200XRI EFI 2.5	[153.0ci-200H.P.]	01.1994-12.1995
MERCURY	220ELPTO Laser XRI 2.3	[142.2ci-220H.P.]	01.1987-12.1988
MERCURY	220EXLPTO Laser XRI 2.3	[142.2ci-220H.P.]	01.1987-12.1988
MERCURY	225CL Promax Racing 2.5	[153.0ci-225H.P.]	01.1998-12.2000
MERCURY	225CS Promax Racing 2.5	[153.0ci-225H.P.]	01.1998-12.2000
MERCURY	225L Promax Racing 2.5	[153.0ci-225H.P.]	01.1998-12.2000
MERCURY	225SS Promax Racing 2.5	[153.0ci-225H.P.]	01.1998-12.2000
MERCURY	2.4L Racing
MERCURY	250XL 3.4	[207.0ci-250H.P.]	01.1989-12.1990
MERCURY	250XXL 3.4	[207.0ci-250H.P.]	01.1989-12.1990
MERCURY	2.5L Racing 2.5	[280H.P.]
MERCURY	275CXL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MERCURY	275CXXL 3.4	[207.0ci-275H.P.]	01.1991-12.1994
MERCURY	275L 3.4	[207.0ci-275H.P.]	01.1991-12.1993
MERCURY	275XL 3.4	[207.0ci-275H.P.]	01.1989-12.1994
MERCURY	275XXL 3.4	[207.0ci-275H.P.]	01.1989-12.1994
MERCURY	300ELPT 3.4	[207.0ci-300H.P.]	01.1981-12.1983
MERCURY	300EXLPT 3.4	[207.0ci-300H.P.]	01.1981-12.1983
MERCURY	3.4LELPT 3.4	[207.0ci-275H.P.]	01.1984-12.1987
MERCURY	3.4LEXLPT 3.4	[207.0ci-275H.P.]	01.1984-12.1987

104255	FARCOM
10439046	ALANKO
110650	CARGO
110651	CARGO
1491624MO30SM	UNITED TECHNOLOGIES
1718328M030SM	UNITED TECHNOLOGIES
1718328MO30SM	UNITED TECHNOLOGIES
206-05102	DIXIE
2-2081-UT	WAI / TRANSPO
2-2081-UT-1	WAI / TRANSPO
410-21002	J&N
4820440	UNITED TECHNOLOGIES
4820440M030SM	UNITED TECHNOLOGIES
4820440MO30SM	UNITED TECHNOLOGIES
4820524MO30SM	UNITED TECHNOLOGIES
4820540M030SM	UNITED TECHNOLOGIES
4820540MO30SM	UNITED TECHNOLOGIES
5044414	MERCURY
5044415	MERCURY
5064975	MERCURY
5077141	MERCURY
5079472	MERCURY
50794721	MERCURY
50794722	MERCURY
50893893	MERCURY
5389	LESTER
5389N	WAI / TRANSPO
5389N-OE	WAI / TRANSPO
71-09-5389	WILSON
8LHA2072V	PRESTOLITE
970.001.082.030	PSH
970.001.082.198	PSH
970.001.082.208	PSH
F032110650	CARGO
F032110651	CARGO
MS-639	DIXIE
MS-640	DIXIE
RS41008	DELCO
S510583	BTS TURBO
SAB0015	ARROWHEAD
SM14916	UNITED TECHNOLOGIES
SM17183	UNITED TECHNOLOGIES
SM48204	UNITED TECHNOLOGIES
SM48205	UNITED TECHNOLOGIES
STR1068	WOODAUTO
STR7603	ELECTROLOG
STR88244	WOODAUTO
STZ3650	KRAUF
UD13670S	AS-PL
WOOSTR1068	WOODAUTO
WOOSTR88244	WOODAUTO

S9557S
