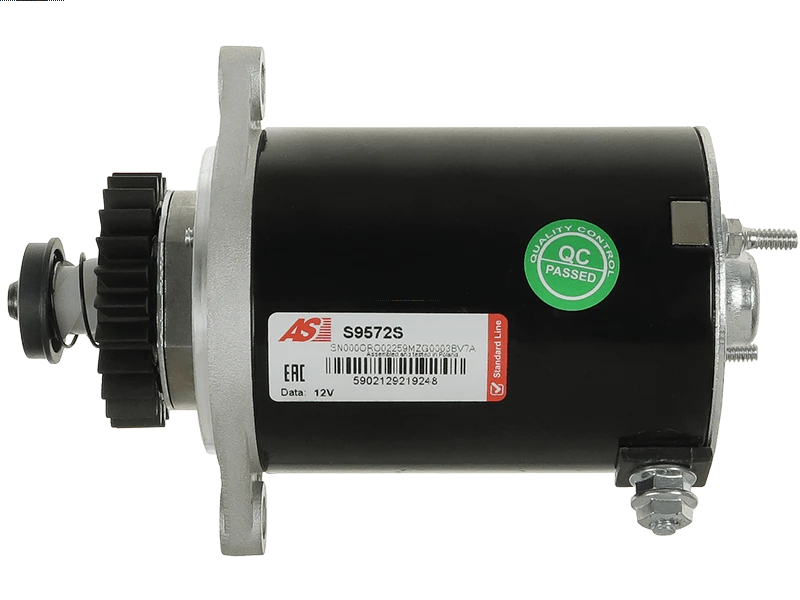

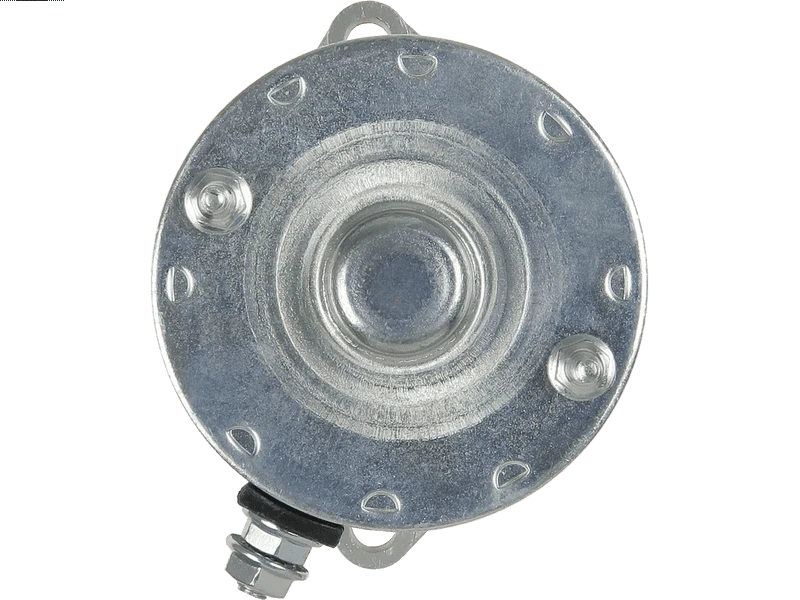

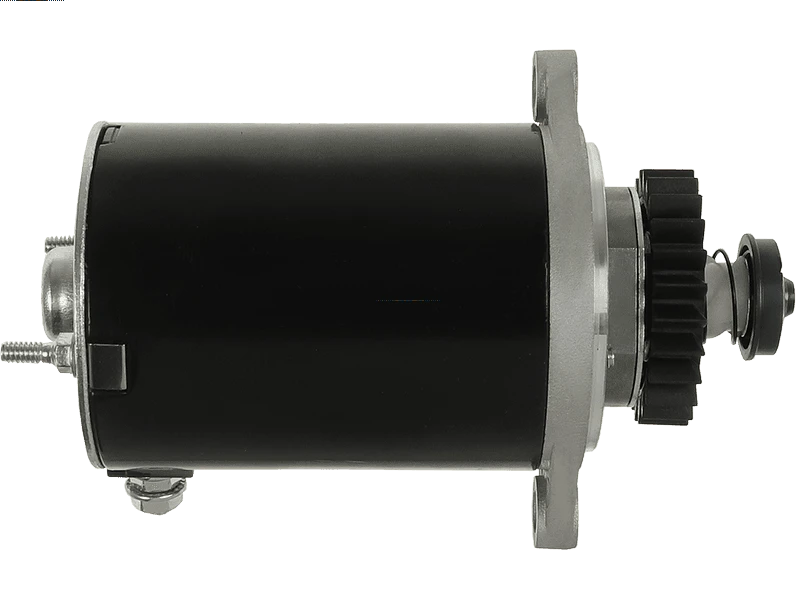

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 163.24 including GST
NZ$ 141.95 excluding GST
or four payments of $40.81
with
Learn More
each
S9572S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 175 mm |
| Mount Hole Center - Center (O.1) | 98 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 24 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ONAN | Engine | [KV] |
Reference Information
| 10441244 | ALANKO |
| 106-10208 | ROBERT'S |
| 1911798 | ONAN |
| 1912312 | ONAN |
| 20607114 | DIXIE |
| 2-2243 | WAI / TRANSPO |
| 2-2243-UT | WAI / TRANSPO |
| 2-2787-MT-2 | WAI / TRANSPO |
| 5919 | LESTER |
| 5919N | WAI / TRANSPO |
| 5919N-OE | WAI / TRANSPO |
| 6020940 | UNITED TECHNOLOGIES |
| 6020940M030SM | UNITED TECHNOLOGIES |
| 6020940MO30SM | UNITED TECHNOLOGIES |
| 91-09-1071 | WILSON |
| 91-09-1071N | WILSON |
| 912312 | ONAN |
| MS688 | DIXIE |
| SAB0034 | ARROWHEAD |
| SM60209 | UNITED TECHNOLOGIES |
| STR40005 | WOODAUTO |
| STZ5919 | KRAUF |
| UD13654S | AS-PL |
| WOOSTR40005 | WOODAUTO |
Video/Publications
