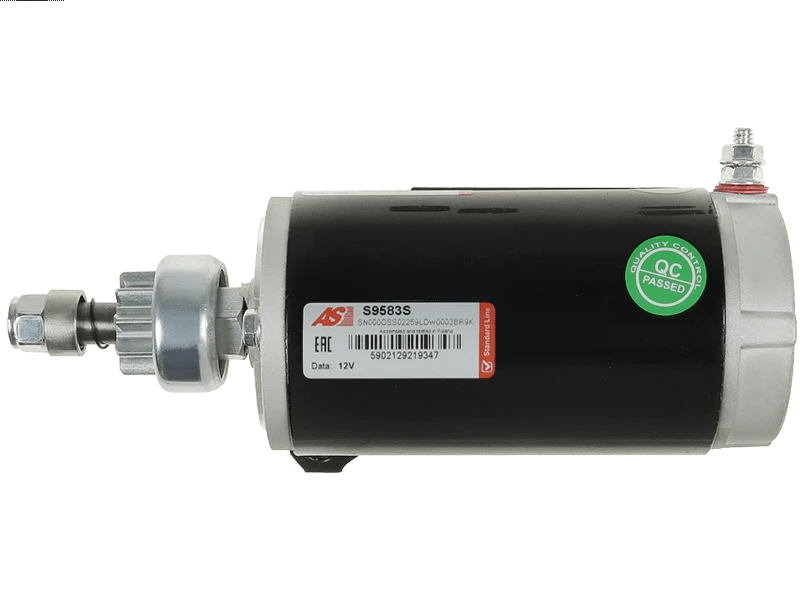

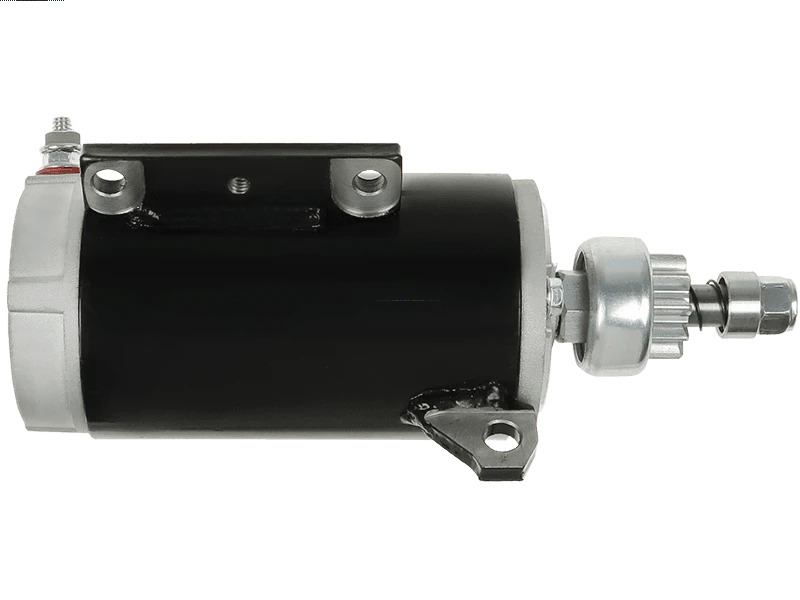

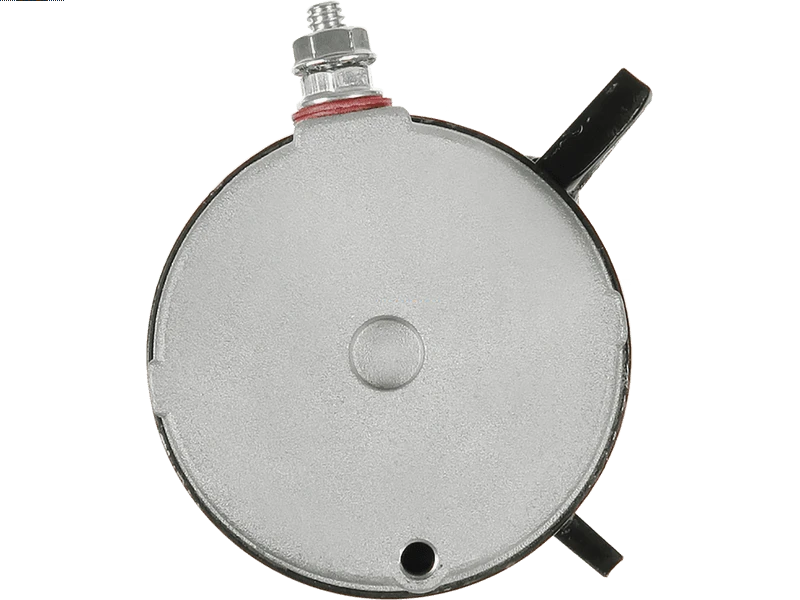

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 197.80 including GST
NZ$ 172.00 excluding GST
or four payments of $49.45
with
Learn More
each
S9583S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 227 mm |
| Mount Hole Center - Center (O.1) | 78 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 71 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| Mount Hole Diameter (C.3) | 10 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 44 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| EVINRUDE | E120TL 1.8 | [110ci-120H.P.] | 01.1985-12.1987 |
| EVINRUDE | E120TL 2.0 | [122ci-120H.P.] | 01.1988-12.1994 |
| EVINRUDE | E120TX 1.8 | [110ci-120H.P.] | 01.1985-12.1987 |
| EVINRUDE | E120TX 2.0 | [122ci-120H.P.] | 01.1988-12.1994 |
| EVINRUDE | E125ES | [125H.P.] | 01.1989-12.1995 |
| EVINRUDE | E130CX 2.0 | [122ci-130H.P.] | 01.1995-12.1995 |
| EVINRUDE | E130TL 2.0 | [122ci-130H.P.] | 01.1995-12.1998 |
| EVINRUDE | E130TX 2.0 | [122ci-130H.P.] | 01.1995-12.1998 |
| EVINRUDE | E140CX 2.0 | [122ci-140H.P.] | 01.1988-12.1994 |
| EVINRUDE | E140TL 1.8 | [110ci-140H.P.] | 01.1985-12.1987 |
| EVINRUDE | E140TL 2.0 | [122ci-140H.P.] | 01.1988-12.1994 |
| EVINRUDE | E140TX 1.8 | [110ci-140H.P.] | 01.1985-12.1987 |
| EVINRUDE | E140TX 2.0 | [122ci-140H.P.] | 01.1988-12.1994 |
| JOHNSON | 120TL | [110.0ci-120H.P.] | 01.1985-12.1987 |
| JOHNSON | 120TL | [122.0ci-120H.P.] | 01.1988-12.1994 |
| JOHNSON | 120TX | [110.0ci-120H.P.] | 01.1985-12.1987 |
| JOHNSON | 120TX | [122.0ci-120H.P.] | 01.1988-12.1994 |
| JOHNSON | 130CX | [122.0ci-130H.P.] | 01.1995-12.1996 |
| JOHNSON | 130PL | [122.0ci-130H.P.] | 01.1999-12.2000 |
| JOHNSON | 130PX | [122.0ci-130H.P.] | 01.1999-12.2000 |
| JOHNSON | 130TL | [122.0ci-130H.P.] | 01.1995-12.1998 |
| JOHNSON | 130TX | [122.0ci-130H.P.] | 01.1995-12.1998 |
| JOHNSON | 130VX | [122.0ci-130H.P.] | 01.2000-12.2000 |
| JOHNSON | 135PL | [135H.P.] | 01.2001-12.2001 |
| JOHNSON | 135VL | [135H.P.] | 01.2001-12.2001 |
| JOHNSON | 135VX | [135H.P.] | 01.2001-12.2001 |
| JOHNSON | 140CX | [122.0ci-140H.P.] | 01.1988-12.1994 |
| JOHNSON | 140TL | [110.0ci-140H.P.] | 01.1985-12.1987 |
| JOHNSON | 140TL | [122.0ci-140H.P.] | 01.1988-12.1994 |
| JOHNSON | 140TX | [110.0ci-140H.P.] | 01.1985-12.1987 |
| JOHNSON | 140TX | [122.0ci-140H.P.] | 01.1988-12.1994 |
Reference Information
| 0586285DS00 | BOMBARDIER |
| 10439023 | ALANKO |
| 104612 | FARCOM |
| 112154 | CARGO |
| 120.003.103.200 | PSH |
| 2-2159 | WAI / TRANSPO |
| 2-2159-1 | WAI / TRANSPO |
| 256743 | KUHNER |
| 3110252 | HENKEL PARTS |
| 4730920 | UNITED TECHNOLOGIES |
| 4730920M030SM | UNITED TECHNOLOGIES |
| 4730920MO30SM | UNITED TECHNOLOGIES |
| 4730940M030SM | UNITED TECHNOLOGIES |
| 4730940MO30SM | UNITED TECHNOLOGIES |
| 5705040M030SM | UNITED TECHNOLOGIES |
| 5705040MO30SM | UNITED TECHNOLOGIES |
| 5721 | LESTER |
| 5721N | WAI / TRANSPO |
| 71-09-5721 | WILSON |
| 91-09-1034 | WILSON |
| F032112154 | CARGO |
| SAB0066 | ARROWHEAD |
| SM47309 | UNITED TECHNOLOGIES |
| SM57050 | UNITED TECHNOLOGIES |
| STR88203 | WOODAUTO |
| STZ1990 | KRAUF |
| UD13694S | AS-PL |
| WOOSTR88203 | WOODAUTO |
Video/Publications
