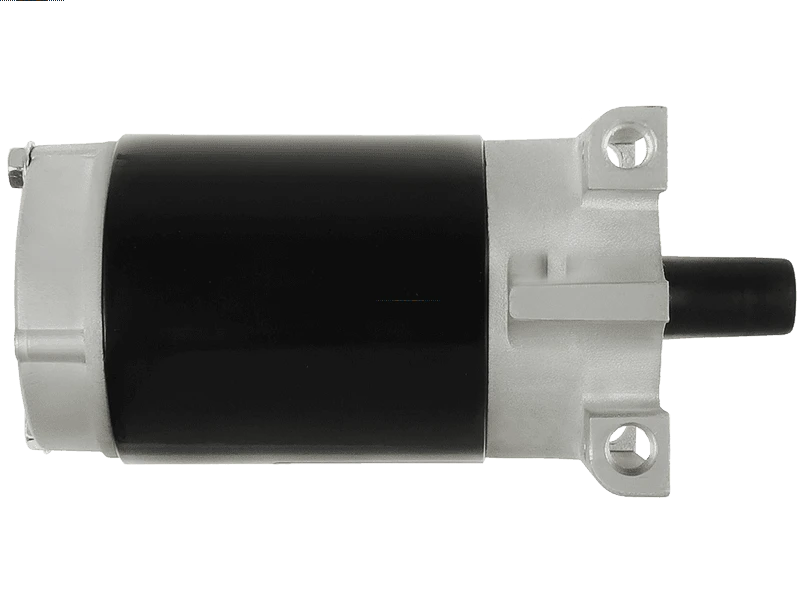

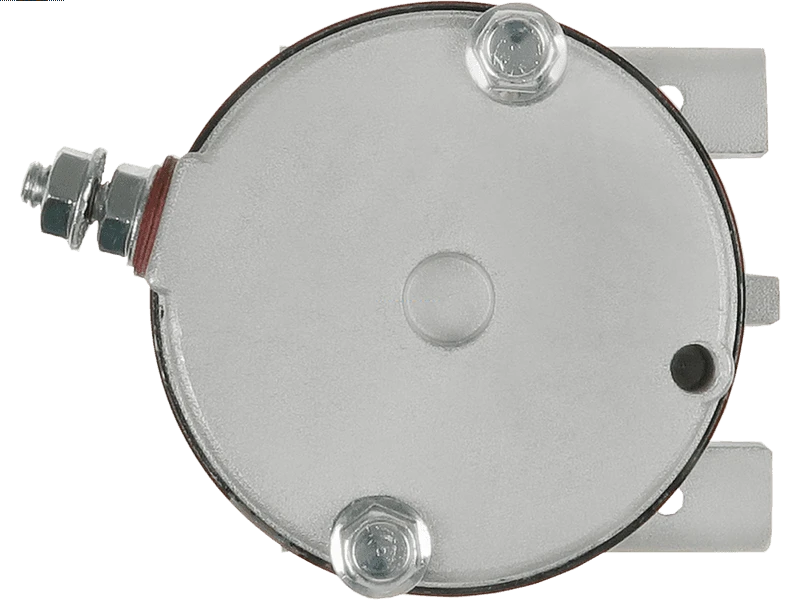

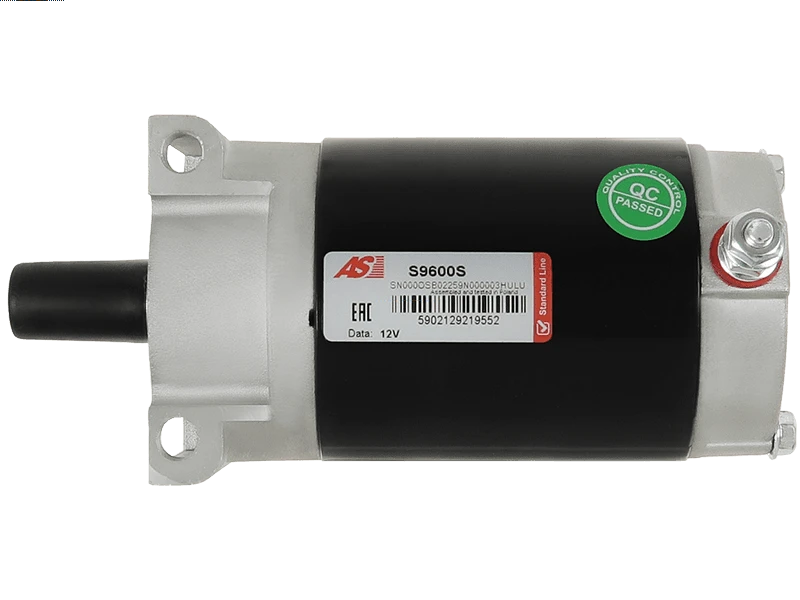

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 184.24 including GST
NZ$ 160.21 excluding GST
or four payments of $46.06
with
Learn More
UOM:
each
Product Code:
S9600S
3
Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 187 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 9 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUSH HOG | CS180T | [GX610-18H.P.] | |
| DITCH WITCH | 1820 | [GX610] | 01.1995-12.2005 |
| HONDA | GX610 | [18H.P.] | |
| HONDA | GX620 | [20H.P.] | |
| HONDA | GXV610 | [18H.P.] | |
| HONDA | GXV620 | [20H.P.] | |
| RAMMAX | FP2SP | [GX620] | |
| RAMMAX | SP2 | [GX620] | |
| TERRAMITE | T5C | [GX620K1-QAF] |
Reference Information
| 10441291 | ALANKO |
| 105541 | FARCOM |
| 106-10104 | ROBERT'S |
| 113594 | CARGO |
| 120.023.102.200 | PSH |
| 206-04114 | DIXIE |
| 2-2663-UT | WAI / TRANSPO |
| 255446 | KUHNER |
| 3110271 | HENKEL PARTS |
| 31200-ZJ1-004 | HONDA |
| 31200-ZJ1A-0040 | HONDA |
| 31200-ZJ4-003 | HONDA |
| 5680640 | UNITED TECHNOLOGIES |
| 5680640M030SM | UNITED TECHNOLOGIES |
| 5680640MO30SM | JOHNSON ELECTRIC |
| 5918 | LESTER |
| 5918N | WAI / TRANSPO |
| 71-09-5918 | WILSON |
| 8522 | CEVAM |
| F032113594 | BOSCH |
| MS-6017 | DIXIE |
| MS-6017N | DIXIE |
| RS41060 | DELCO |
| S129.614 | PSH |
| SAB0133 | ARROWHEAD |
| SM56804 | JOHNSON ELECTRIC |
| STR88236 | WOODAUTO |
| STZ3594 | KRAUF |
| UD13677S | AS-PL |
| WOOSTR88236 | WOODAUTO |
