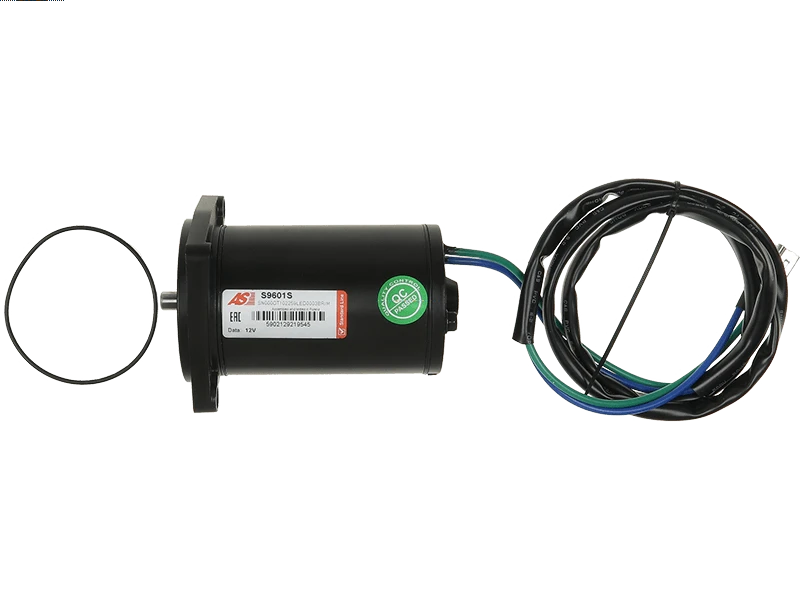

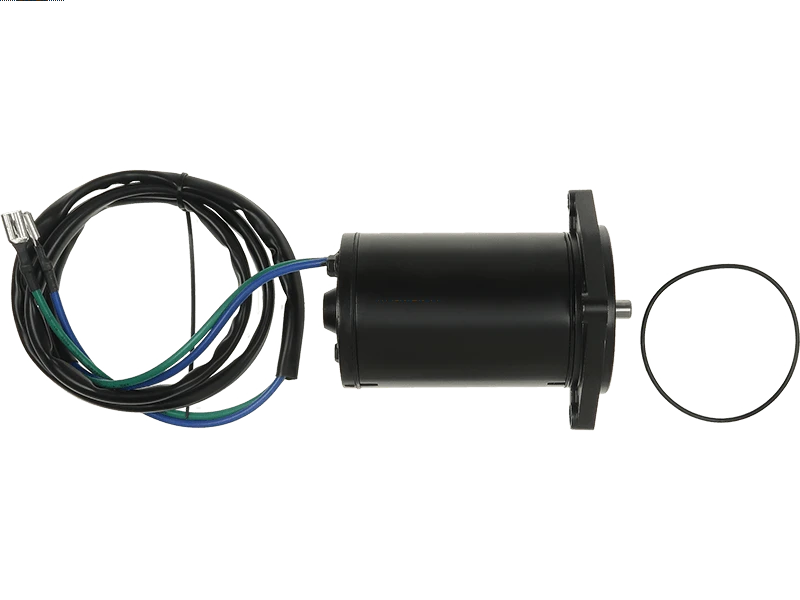

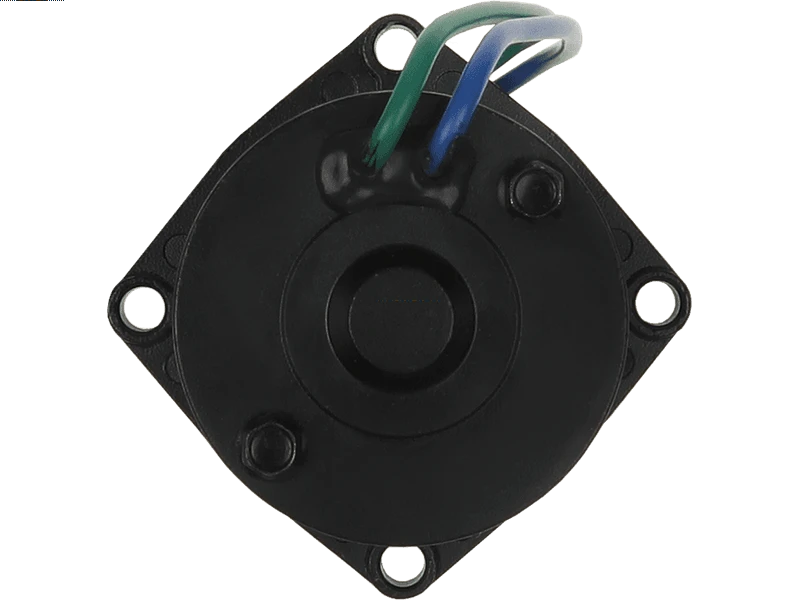

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 182.16 including GST
NZ$ 158.40 excluding GST
or four payments of $45.54
with
Learn More
each
S9601S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 127 mm |
| Mount Hole Center - Center (O.1) | 62 mm |
| Mount Hole Center - Center (O.2) | 62 mm |
| Mount Hole Center - Center (O.3) | 62 mm |
| Mount Hole Center - Center (O.4) | 62 mm |
| Mount Hole Diameter (C.1) | 7.20 mm |
| Mount Hole Diameter (C.2) | 7.20 mm |
| Mount Hole Diameter (C.3) | 7.20 mm |
| Mount Hole Diameter (C.4) | 7.20 mm |
| No./Mount holes | 4 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW/ACW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| EVINRUDE | Engine | [40H.P.] | 01.1989-12.1999 |
| EVINRUDE | Engine | [48H.P.] | 01.1989-12.1999 |
| EVINRUDE | Engine | [50H.P.] | 01.1989-12.1999 |
| JOHNSON | Engine | [40H.P.] | 01.1989-12.1999 |
| JOHNSON | Engine | [48H.P.] | 01.1989-12.1999 |
| JOHNSON | Engine | [50H.P.] | 01.1989-12.1999 |
| OMC | Engine | [40H.P.] | 01.1989-12.1999 |
| OMC | Engine | [48H.P.] | 01.1989-12.1999 |
| OMC | Engine | [50H.P.] | 01.1989-12.1999 |
Reference Information
| 10811 | LESTER |
| 10811AN | WAI / TRANSPO |
| 10811N | WAI / TRANSPO |
| 350.514.000.200 | PSH |
| 36120-ZV5-821 | HONDA |
| 435532 | OMC |
| 74-09-10811 | WILSON |
| 82-6893 | WAI / TRANSPO |
| STZ5757 | KRAUF |
| TRM0040 | ARROWHEAD |
| UD13703S | AS-PL |
Video/Publications
