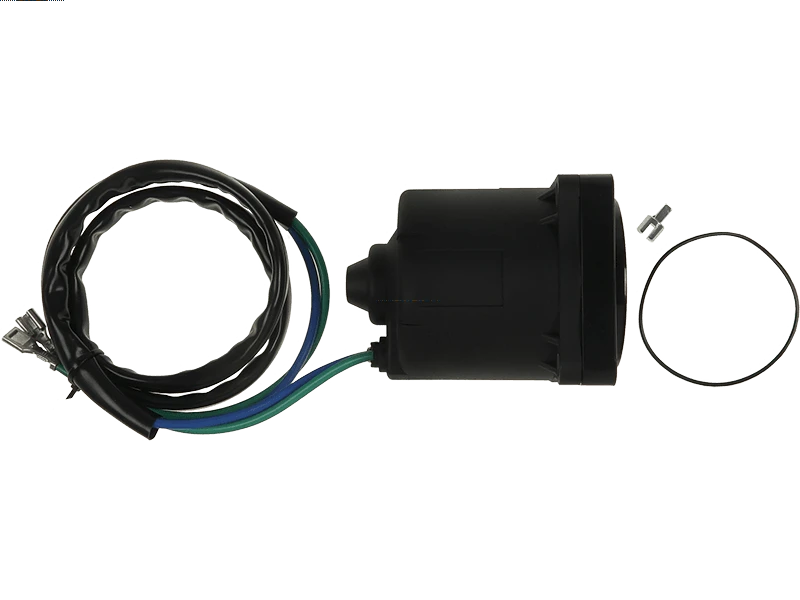

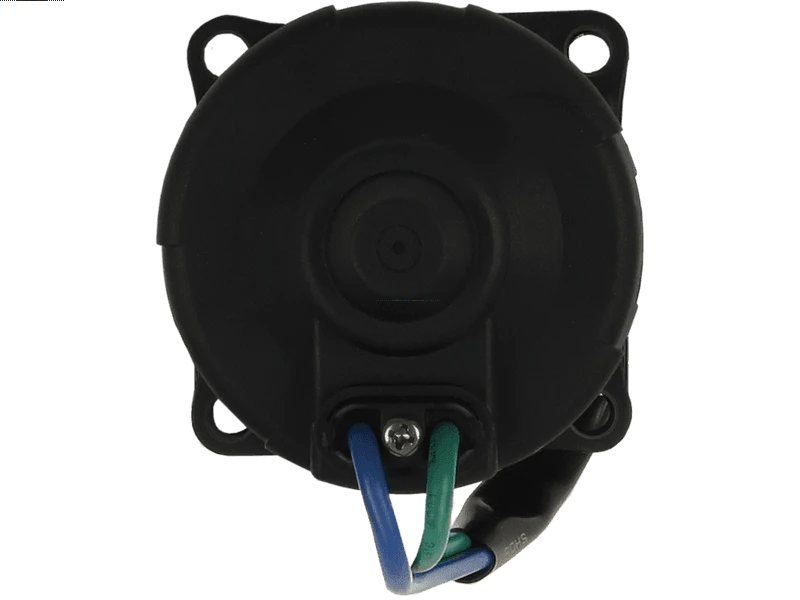

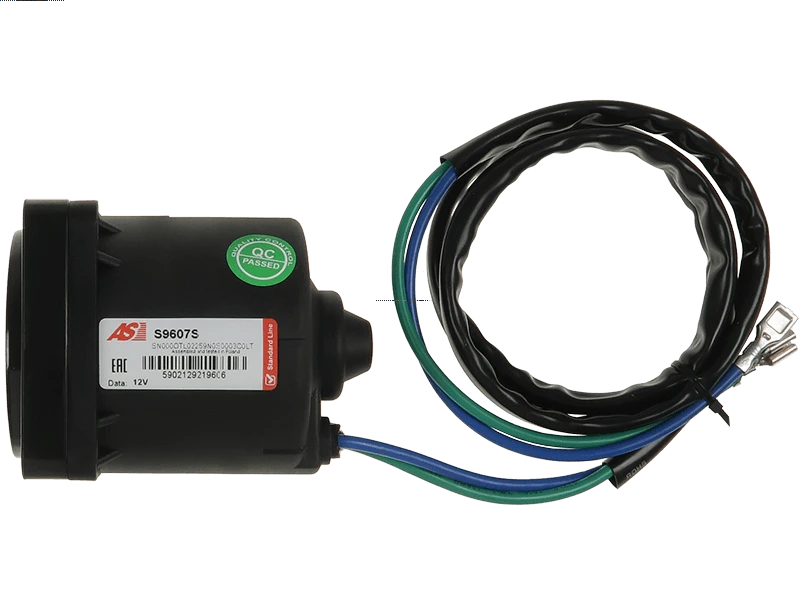

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 193.55 including GST
NZ$ 168.30 excluding GST
or four payments of $48.39
with
Learn More
each
S9607S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 111 mm |
| Mount Hole Center - Center (O.1) | 66 mm |
| Mount Hole Center - Center (O.2) | 66 mm |
| Mount Hole Center - Center (O.3) | 66 mm |
| Mount Hole Center - Center (O.4) | 66 mm |
| Mount Hole Diameter (C.1) | 7.20 mm |
| Mount Hole Diameter (C.2) | 7.20 mm |
| Mount Hole Diameter (C.3) | 7.20 mm |
| Mount Hole Diameter (C.4) | 7.20 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 0 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW/ACW |
| Spigot Diameter (A) | 79 mm |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| EVINRUDE | Engine | [115H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [120H.P.] | 01.1991-12.1994 |
| EVINRUDE | Engine | [130H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [140H.P.] | 01.1991-12.1994 |
| EVINRUDE | Engine | [150H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [175H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [200H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [225H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [50H.P.(3cyl)] | 01.1991-12.2001 |
| EVINRUDE | Engine | [60H.P.(V4)] | 01.1991-12.2001 |
| EVINRUDE | Engine | [70H.P.] | 01.1991-12.2001 |
| EVINRUDE | Engine | [90H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [115H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [120H.P.] | 01.1991-12.1994 |
| JOHNSON | Engine | [130H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [140H.P.] | 01.1991-12.1994 |
| JOHNSON | Engine | [150H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [175H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [200H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [225H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [50H.P.(3cyl)] | 01.1991-12.2001 |
| JOHNSON | Engine | [60H.P.(V4)] | 01.1991-12.2001 |
| JOHNSON | Engine | [70H.P.] | 01.1991-12.2001 |
| JOHNSON | Engine | [90H.P.] | 01.1991-12.2001 |
| OMC | Engine | [115H.P.] | 01.1991-12.2001 |
| OMC | Engine | [120H.P.] | 01.1991-12.1994 |
| OMC | Engine | [130H.P.] | 01.1991-12.2001 |
| OMC | Engine | [140H.P.] | 01.1991-12.1994 |
| OMC | Engine | [150H.P.] | 01.1991-12.2001 |
| OMC | Engine | [175H.P.] | 01.1991-12.2001 |
| OMC | Engine | [200H.P.] | 01.1991-12.2001 |
| OMC | Engine | [225H.P.] | 01.1991-12.2001 |
| OMC | Engine | [50H.P.(3cyl)] | 01.1991-12.2001 |
| OMC | Engine | [60H.P.(V4)] | 01.1991-12.2001 |
| OMC | Engine | [70H.P.] | 01.1991-12.2001 |
| OMC | Engine | [90H.P.] | 01.1991-12.2001 |
| YAMAHA | Engine | [115-225H.P.] | 01.1997-12.2002 |
Reference Information
| 10816 | LESTER |
| 10816N | WAI / TRANSPO |
| 10816N-L | WAI / TRANSPO |
| 10816N-S | WAI / TRANSPO |
| 350.508.000.200 | PSH |
| 434495 | OMC |
| 434496 | OMC |
| 438529 | OMC |
| 438531 | OMC |
| 64E-43880-00 | YAMAHA |
| 64E-43880-01 | YAMAHA |
| 74-09-10816 | WILSON |
| 82-7854 | WAI / TRANSPO |
| 82-7856 | WAI / TRANSPO |
| 918103 | OMC |
| MDZ0816 | KRAUF |
| RT05025 | DELCO |
| TRM0039 | ARROWHEAD |
| UD13723S | AS-PL |
