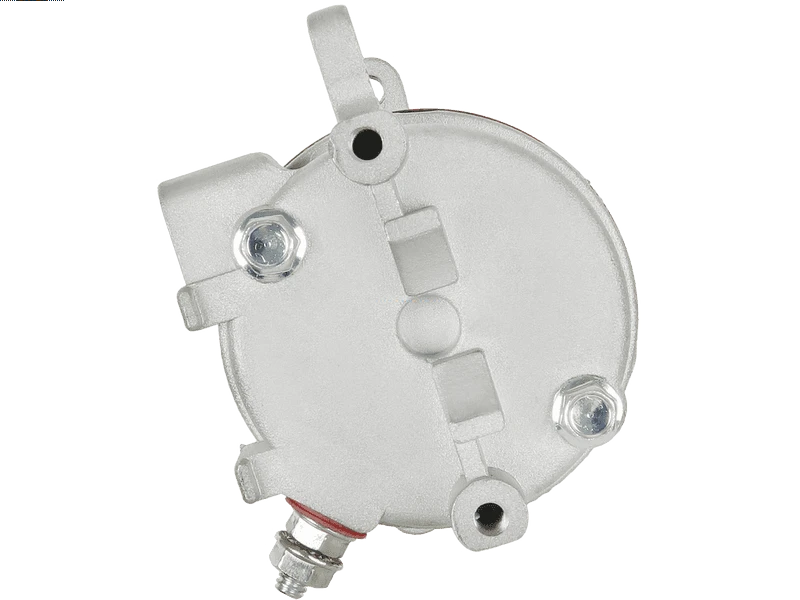

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
UNITED TECHNOLOGIES
Price:
NZ$ 214.57 including GST
NZ$ 186.58 excluding GST
or four payments of $53.64
with
Learn More
each
S9614S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.10 kW |
| Length (L.1) | 169 mm |
| Mount Hole Center - Center (O.1) | 97 mm |
| Mount Hole Diameter (C.1) | UNC 5/16"-18G mm |
| Mount Hole Diameter (C.2) | UNC 5/16"-18G mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | UNITED TECHNOLOGIES |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| EVINRUDE | E100WQL 1.6 | [99.6ci-100H.P.] | 01.1998-12.1999 |
| EVINRUDE | E100WQX 1.6 | [99.6ci-100H.P.] | 01.1998-12.1999 |
| EVINRUDE | E105W | [105H.P.] | 01.1999-12.2001 |
| EVINRUDE | E115EL 1.7 | [105.4ci-115H.P.] | 01.1995-12.1998 |
| EVINRUDE | E115GL 1.7 | [105.4ci-115H.P.] | 01.1995-12.1998 |
| EVINRUDE | E115JTL 1.6 | [99.6ci-115H.P.] | 01.1998-12.1998 |
| EVINRUDE | E115SL 1.7 | [105.4ci-115H.P.] | 01.1995-12.1998 |
| EVINRUDE | E115SX 1.7 | [105.4ci-115H.P.] | 01.1995-12.1998 |
| EVINRUDE | E90EL 1.6 | [99.6ci-90H.P.] | 01.1995-12.1998 |
| EVINRUDE | E90PL Ficht V4 1.7 | [105.4ci-90H.P.] | 01.1999-12.2001 |
| EVINRUDE | E90PL FICHT V4 1.7 | [105.4ci-90H.P.] | 01.1999-12.2001 |
| EVINRUDE | E90SL 1.6 | [99.6ci-90H.P.] | 01.1995-12.1998 |
| JOHNSON | 100WP | [99.6ci-100H.P.] | 01.1999-12.2001 |
| JOHNSON | 100WQ | [99.6ci-100H.P.] | 01.1998-12.1998 |
| JOHNSON | 115EL | [105.4ci-115H.P.] | 01.1995-12.1998 |
| JOHNSON | 115GL | [105.4ci-115H.P.] | 01.1995-12.2006 |
| JOHNSON | 115J Jet | [105.4ci-80H.P.] | 01.1998-12.2001 |
| JOHNSON | 115PL | [105.4ci-115H.P.] | 01.1999-12.2006 |
| JOHNSON | 115PX | [105.4ci-115H.P.] | 01.1999-12.2006 |
| JOHNSON | 115SL | [105.4ci-115H.P.] | 01.1995-12.1998 |
| JOHNSON | 115SP | [105.4ci-115H.P.] | 01.1999-12.2000 |
| JOHNSON | 115SX | [105.4ci-115H.P.] | 01.1995-12.1998 |
| JOHNSON | 115VL | [105.4ci-115H.P.] | 01.2000-12.2002 |
| JOHNSON | 115VX | [105.4ci-115H.P.] | 01.2000-12.2002 |
| JOHNSON | 115WP | [105.4ci-115H.P.] | 01.2004-12.2005 |
| JOHNSON | 90EL | [99.6ci-90H.P.] | 01.1995-12.1998 |
| JOHNSON | 90EX | [99.6ci-90H.P.] | 01.1995-12.1995 |
| JOHNSON | 90GL | [105.4ci-90H.P.] | 01.2003-12.2006 |
| JOHNSON | 90PL | [105.4ci-90H.P.] | 01.1999-12.2006 |
| JOHNSON | 90PX | [105.4ci-90H.P.] | 01.2004-12.2006 |
| JOHNSON | 90SL | [99.6ci-90H.P.] | 01.1995-12.1998 |
| JOHNSON | 90VL | [105.4ci-90H.P.] | 01.2002-12.2006 |
Reference Information
| 10038145AV | ITAB AUTOMOTIVE |
| 10439024 | ALANKO |
| 106-508 | PIC |
| 120.009.003.200 | PSH |
| 206-07128 | DIXIE |
| 2-2257 | WAI / TRANSPO |
| 3110258 | HENKEL PARTS |
| 5720 | LESTER |
| 5720N | WAI / TRANSPO |
| 5721740 | UNITED TECHNOLOGIES |
| 5721740M030SM | UNITED TECHNOLOGIES |
| 5721740MO30SM | UNITED TECHNOLOGIES |
| 71-09-5720 | WILSON |
| S129.596 | PSH |
| SAB0075 | ARROWHEAD |
| SM57217 | UNITED TECHNOLOGIES |
| STR7626 | ELECTROLOG |
| STR88250 | WOODAUTO |
| STRJ066 | 3EFFE |
| UD13687S | AS-PL |
| WOOSTR88250 | WOODAUTO |
