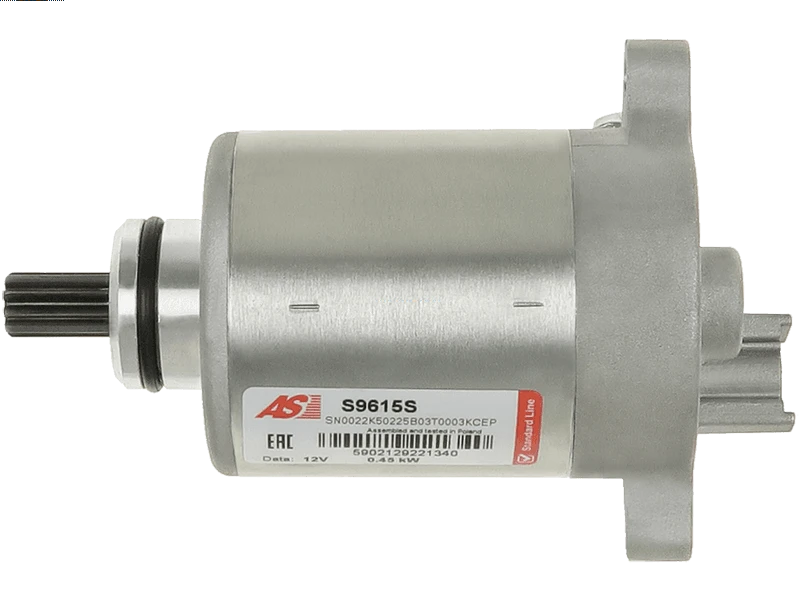

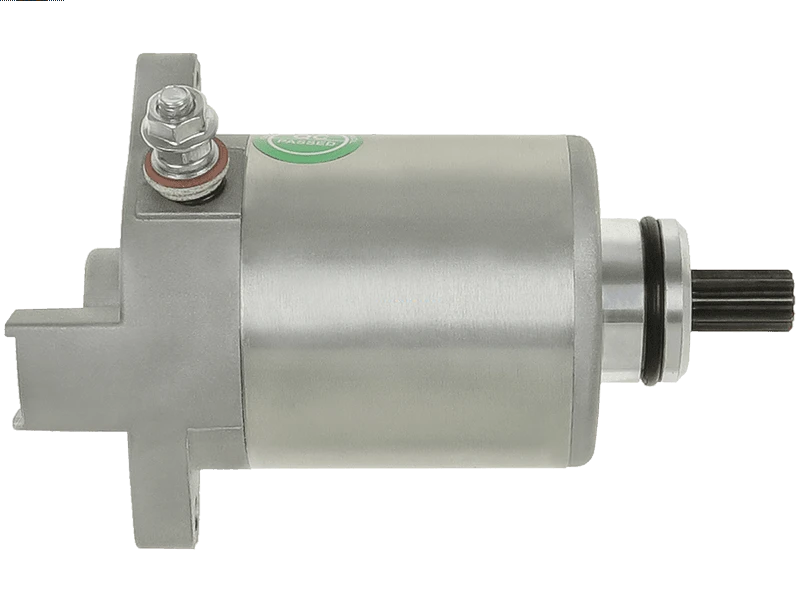

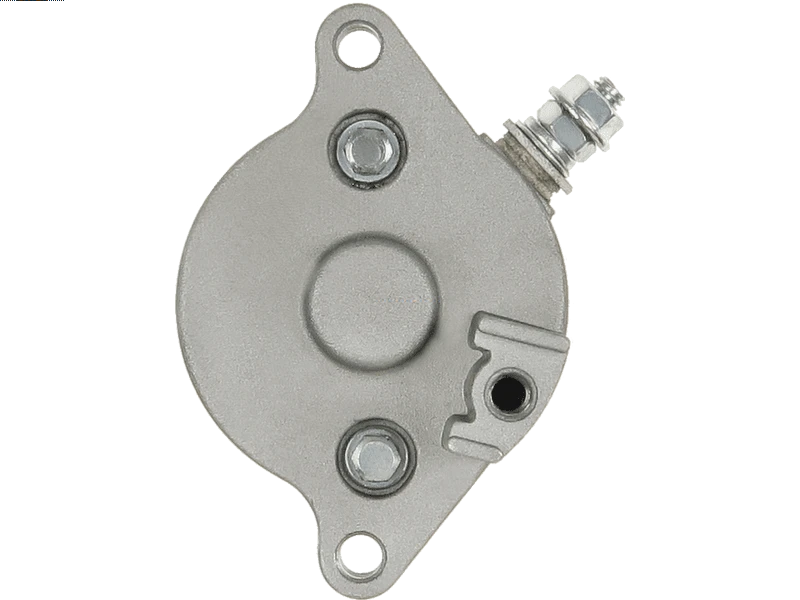

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 116.20 including GST
NZ$ 101.04 excluding GST
or four payments of $29.05
with
Learn More
each
S9615S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.45 kW |
| Length (L.1) | 139 mm |
| Mount Hole Center - Center (O.1) | 78 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 36 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| APRILIA | Adiva 125 | [124cc] | 01.2001-12.2006 |
| APRILIA | Adiva 150 | [150cc] | 01.2001-12.2006 |
| APRILIA | Atlantic 125 | [124cc] | 01.2003-12.2013 |
| APRILIA | Atlantic 125 | [244cc] | 01.2003-12.2013 |
| APRILIA | Atlantic 200 | [124cc] | 01.2002-12.2005 |
| APRILIA | Atlantic 250 | [124cc] | 01.2004-12.2010 |
| APRILIA | Mojito 125 | [244cc] | 01.2000- |
| APRILIA | Mojito 125 Custom | [198cc] | 01.2007-12.2013 |
| APRILIA | Mojito 150 | [124cc] | 01.2004- |
| APRILIA | Scarabeo 125 | [124cc] | 01.2002-12.2002 |
| APRILIA | Scarabeo 125 | [244cc] | 01.2003-12.2007 |
| APRILIA | Scarabeo 200 | [198cc] | 01.2001- |
| APRILIA | Scarabeo 200 | [198cc] | 01.2003- |
| APRILIA | Scarabeo 250 | [125cc] | 01.2004-12.2006 |
| APRILIA | Sportcity 125 | [125cc] | 01.2005-12.2008 |
| APRILIA | Sportcity 125 One | [151cc] | 12.2005-12.2013 |
| APRILIA | Sportcity 200 | [124cc] | 01.2006-12.2007 |
| APRILIA | Sportcity 250 I.E. | [124cc] | 01.2005-12.2009 |
| APRILIA | Sportcity Cube 125 | [244cc] | 06.2008-12.2013 |
| APRILIA | Sportcity Cube 125 Blackline | [198cc] | 06.2010-12.2013 |
| BENELLI | Sportcity Cube 250 | [124cc] | 05.2006- |
| BENELLI | SR 125 Motard M70 | [124cc] | 09.2010- |
Reference Information
| 10033122AV | ITAB AUTOMOTIVE |
| 10438027 | ALANKO |
| 108453 | FARCOM |
| 19588 | LESTER |
| 19588N | WAI / TRANSPO |
| 20467221BN | REAL |
| 254799 | KUHNER |
| 580442 | PIAGGIO |
| 6033122.0 | SANDO |
| 82611R | PIAGGIO |
| 829414 | PIAGGIO |
| AP8580124 | PIAGGIO |
| CST33122AS | CASCO |
| MAV351220A | SIOM |
| UD19042S | AS-PL |
